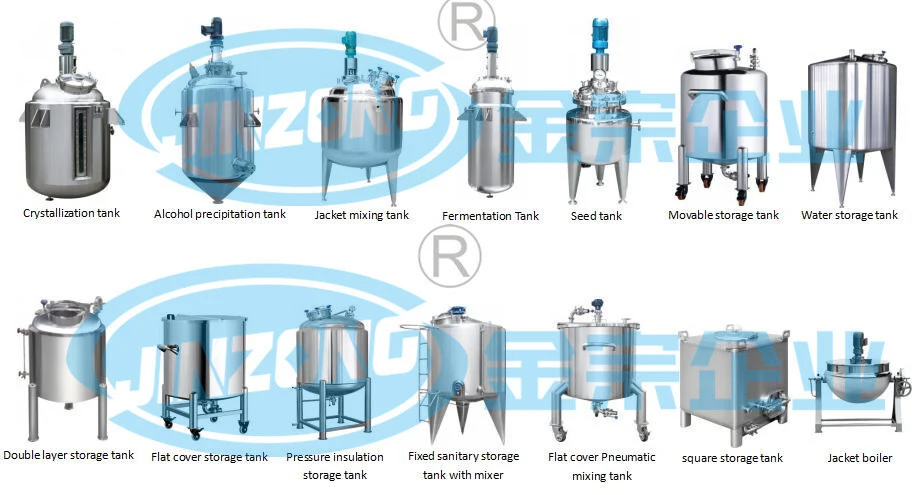

Solvent Solution Mixing Tank Intermediate Reactor Crystallization Tank

We design and manufacture many types of custom tanks and systems for product containment, processing, handling & storage in the pharmaceutical, chemical, food and semiconductor industries.


Preparation Vessels, Reactor & Tank :
Design compliance with cGMP Capacity up to 40,000 Liter. Product Contact SUS316 L . Vertical & Horizontal design Atmospheric, Vacuum or Pressure Operation. Plain, Jacket for heating & cooling. Option for Heating by steam, hot water or tharic fluid oil & Electric heater.

Thermal Insulated.


Mechanicals or Electro polishing of internal surface. Welded, flanged or hinged type cover Integrated Cleaning in Place-CIP. Sterilizing In Place-SIP as an Option. Option for mounting on legs or flange. Portable execution on request. Validation protocols & Instrumentation celebration.




Variable Speed Agitation :
Agitator can be top or bottom driven or magnetically driven. Propeller type, Anchor type provided with High speed disperser or rotor-stator homogenizer. Single or double mechanical seal.
For production, filtration, transfer and storage solution.
Pre reparation vessels. Inline homogenizer. Inter Connecting Pipe Solid or sugar Charging System Working Platform.
Automation available, appropriate for the intended process function, including CIP and SIP :
Controls of all function by PLC Controls with HMI Touch screen. Level controls by means of capacitance probe or electronic load cells. Digital indication and controls of all process parameters for Process time, agitator speed, temperature, pressure & level.
