Biological Injection Mobile Tank Storage Tanks Customized Pressure Vessel Insulation Aseptic Storage Tank

Biological Injection Mobile Tank Storage Tanks Customized Pressure Vessel Insulation Aseptic Storage Tank

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
CustomizedCustomizedConditionNew
Warranty1 YearAfter-sales ServiceOne Year Warranty, Lifelong Maintenance
TrademarkJinzong MachineryTransport PackagePlywood Case
SpecificationDepends on CapactiyOriginGuangdong, China (Mainland)
HS Code8419899090
Biological Injection Mobile Tank Storage Tanks Customized Pressure Vessel Insulation Aseptic Storage Tank

Biological Injection Mobile Tank Storage Tanks Customized Pressure Vessel Insulation Aseptic Storage Tank

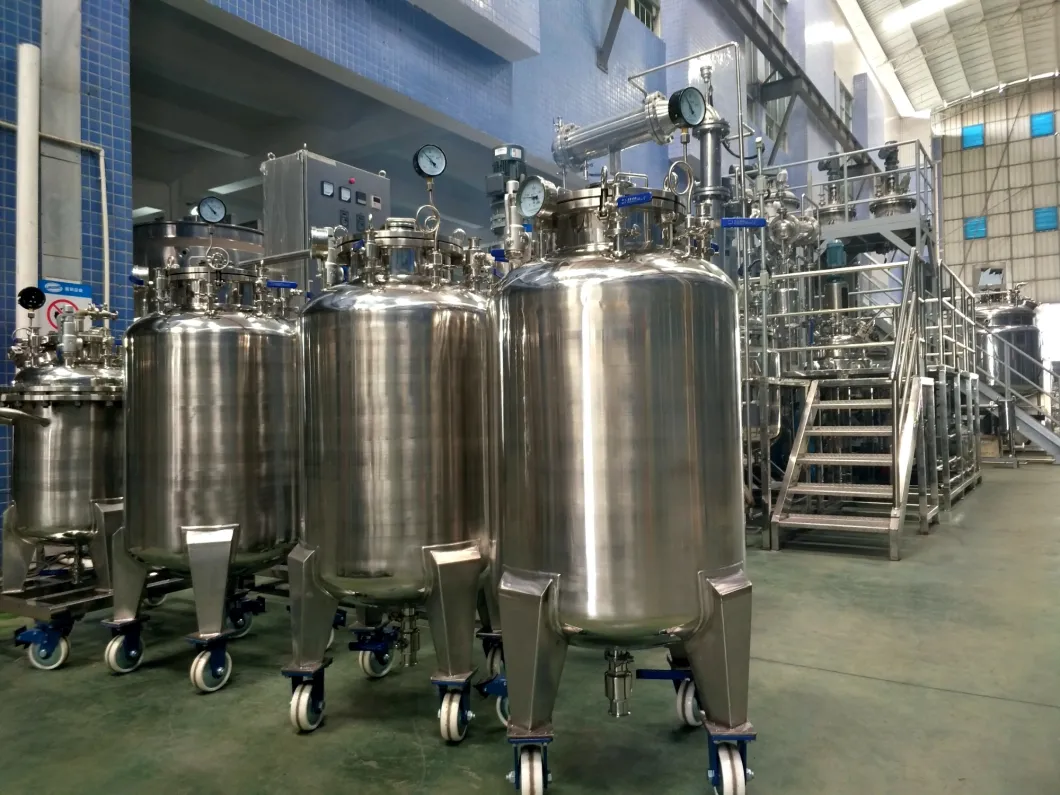

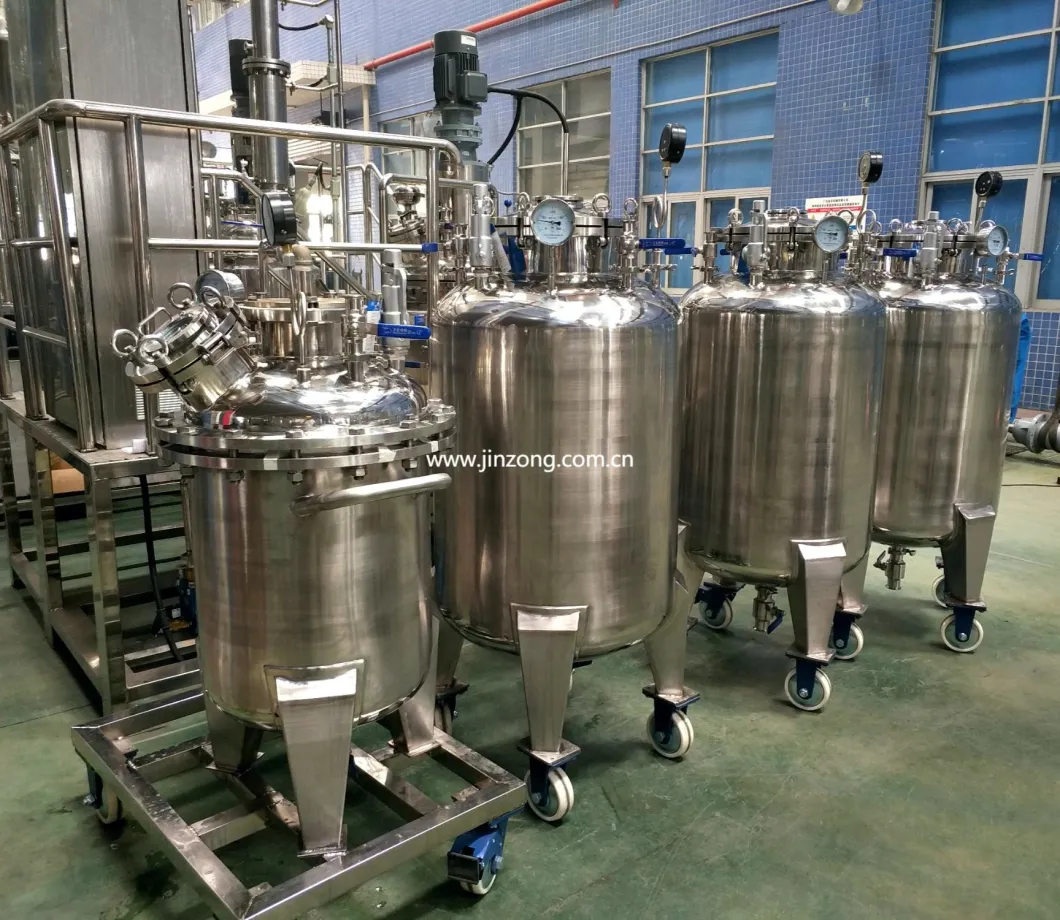

Stainless steel storage tanks produced by our company are widely used in dairy engineering. food engineering. beer engineering, fine
chemical engineering, biomedical engineering and water treatment engineering. The newly designed storage equipment has the
advantages of convenient operation, corrosion resistance, strong production capacity, convenient cleaning. and shockproof. lt is one of the
key equipment for storage and transportation in production. Made of all stainless steel materials, the material of contact material can be selected 316L or 304.stamping forming head without dead angle welding. internal and external polishing,fully in line with GMP standards

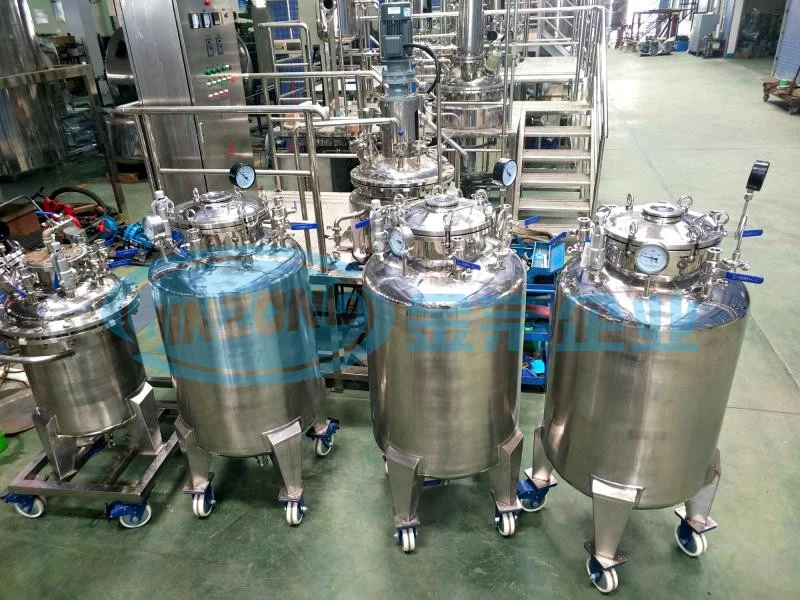

The storage tank has a variety of different types such as mobile. fixed. vacuum. and atmospheric pressure types. of which the mobile
capacity is from 50L-1000L and the fixed capacity is from 0.5 T-300T. which is produced as required.



Biological Injection Mobile Tank Storage Tanks Customized Pressure Vessel Insulation Aseptic Storage Tank
1. cylindrical material: stainless steel 304 or 316L
2, design pressure: 0.35 Mpa;
3, work pressure: 0.25 MPa3;
4, cylindrical specifications: see technical parameters
5, inner and outer surface mirror polishing,Bar <0.4 um!
6, other requirements: according to the design drawings production


Biological Injection Mobile Tank Storage Tanks Customized Pressure Vessel Insulation Aseptic Storage Tank

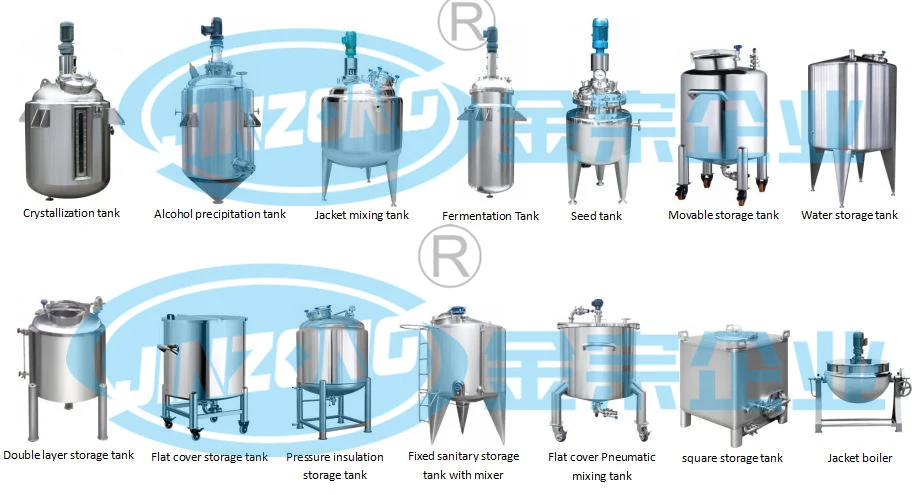

Storage tanks are divided into vertical storage tanks and horizontal storage tanks single-layer storage tanks double-layer storage tanks
and three-layer thermal storage tanks.
2.Stainless steel storage tank equipment is reasonable in design,advanced in technologyand automatic control. lt meets the
requirements of GMP standards.The tank adopts a vertical or horizontal single-layer or double-layer structure and can be fled with insulation materials according to user requirements.
3.According to the storage capacity of 50-15000L,storage capacity of more than 20000L, it is recommended to use outdoor storage tanks The material is made of stainless steel imported from SUS304.
4.The storage tank has good thermal insulation performanceThe tank is equipped with the following devices: blender,CIP cleaning spray head, human hole,temperature hole, liquid leve indicatoranti-bacteria breathing hole,aseptic sampling port,incoming and outgoing feed port,etc.

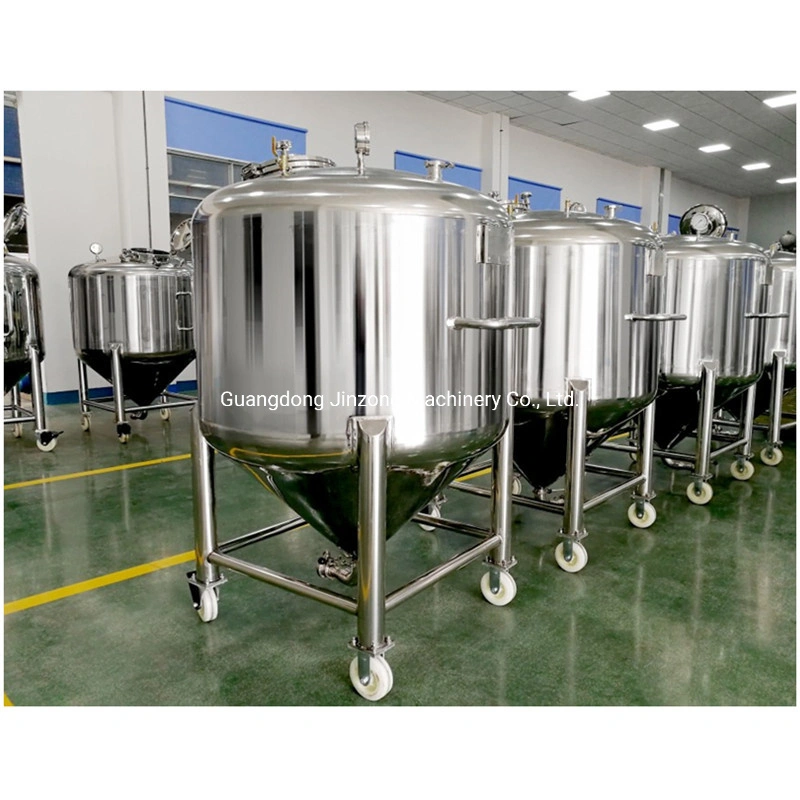

Customized Pressure Vessel Insulation Aseptic Storage Tank 50L-4000L



We offer a wide variety of shapes and configurations as well as custom fabrication.


Customized Pressure Vessel Insulation Aseptic Storage Tank 50L-4000L

In addition to above stainless steel models, we also offer several other steel tanks that can easily help with the storage of potable water, waste water, chemicals, fertilizers, petroleum and more.

 Provide professional oversea after-sales service.
Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
This product is well-known in the industry for its huge economic results. The product is very easy to maintain. This product is provided in different grades and qualities so that it can serve all purposes and requirements. The product is very easy to maintain.
