    Moveable Water and Oil Vessels for Small Scale Vacuum Emulsifying Mixer Equipment

    YGC Series Lab Vacuum Mixing machine Homogenizer Emulsifying Mixer

    Working capacity from 1L to 50L
    Ygc Series Lab Vacuum Mixing Machine Homogenizer Emulsifying Mixer
    Ygc Series Lab Vacuum Mixing Machine Homogenizer Emulsifying Mixer

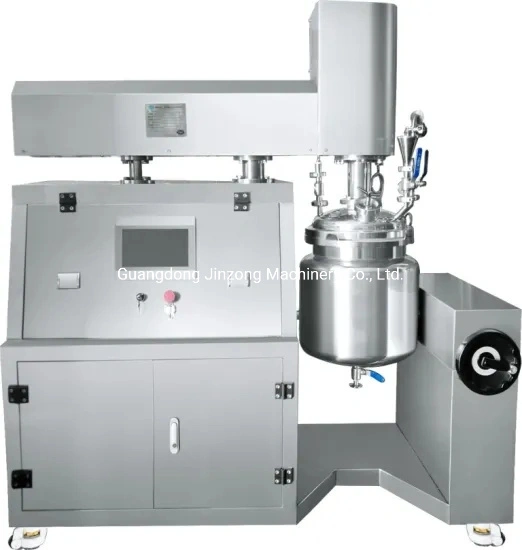

    The YGC Series Small Vacuum Homogenizer Emulsifying Blender Machine is suitable for bench-scale and pilot-scale tests or templet-making of diverse medicines and cosmetics, and is a necessary instrument in the laboratories of cosmetics and pharmaceuticals manufacturers. This machine is fully operational and has sound quality, available with hydraulic lifting type and electrical lifting type at choice.
    Standard type is not provided with water and oil vessels, but could be separately equipped with moveable vessel upon user requirements.
    YGC-IL is designed specifically for process developers, designed with desktop manual hand-cranking lifter and equipped with patented multifunctional homogenizer, featured by easy operation and several purposes.
    It is a small emulsifying equipment for laboratory producing cream products in the pharmaceutical and food industries.
    Ygc Series Lab Vacuum Mixing Machine Homogenizer Emulsifying Mixer

    Scope of application:
    pharmaceutical: ointment, preparation, cytoplasm, drug synthesis, vaccine, fat emulsion, suspension, etc.
    Food: salad dressing, mayonnaise, ice cream, cheese, yogurt for milk drinks, fruit juice, reduced milk, etc.


    Model

    Volume of Main Tank (L)

    Volume of Dissolving tank(L)

    Main Tank Dimension(mm)

    Dissolving Tank Dimension(mm)

    Total Power (kw)

    1

    1.2

    0

    600x300x650

    0

    13

    10

    13

    6/10

    1800x700x1300

    1200x600x800

    7

    20

    26

    12/16

    1800x700x1300

    1200x600x800

    10

    30

    37

    18/25

    2000x800x1500

    1200x600x800

    11

    50

    60

    30/40

    2000x800x1500

    1200x600x800

    14



    YGC Series Lab Vacuum Mixing machine Homogenizer Emulsifying Mixer

    Optional construction

    1. Controller: manual button controller, touch screen controller, automatic PLC controller
    2. Heating: steam heating, electric heating
    3. homogenizer: under homogenizer, upper homogenizer
    Ygc Series Lab Vacuum Mixing Machine Homogenizer Emulsifying Mixer
    The international recognition, popularity and reputation of this product are continuing to increase. The product is noted for its high precision. This product becomes a hot spot among customers in the industry recently. The product is noted for its high precision.
