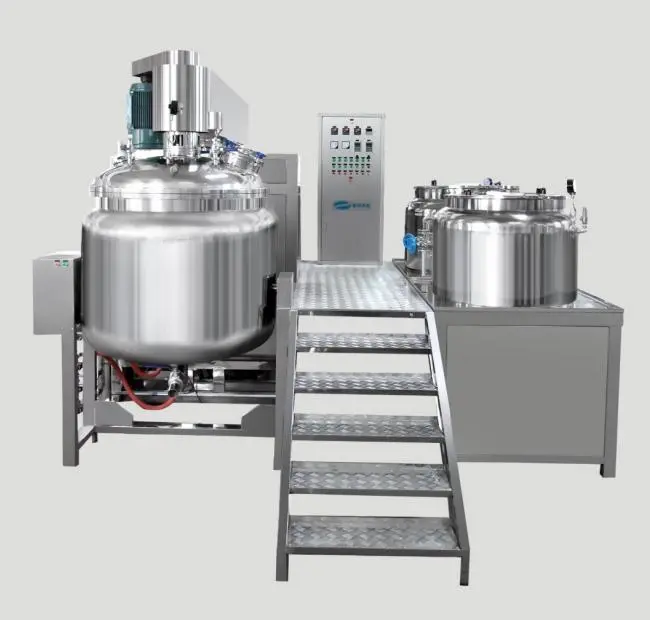

Vacuum Mixer Ointment Cream Gel Skin Care Emulsifying Homogenizer Equipment
| Model NO. | JZ-JRK | Customized | Customized |
| Condition | New | Warranty | 1 Year |
| After-sales Service | One Year Warranty, Lifelong Maintenance | Layout Type | Verticle |
| Additional Capabilities | Mixing and Homogenizing | Material | 316L |
| Mixing Drum Shape | Drum | Operating Type | Continuous Operating |
| Hopmogenizer Position | Top or Bottom | Trademark | Jinzong Machinery |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8479820090 |
Applications:
1. Medical: ultrasound gel, injection, syrup, etc.
2. Food: mayonnaise, tomato paste, cake gel, honey, chocolate etc.
3. Cosmetic: cream, body lotion, shaving foam, toothpaste, etc.
Advantage overview:
Shorten batch production time: thanks to the high efficiency of the homogenizer head and the optimized shear force transmission of the homogenization and emulsification.
Continuous high-quality production: thanks to the homogenizing head that has been repeatedly verified and designed, it optimizes the control and monitoring of the droplet size and its distribution. At the same time, the small circulation mode below the liquid surface is adopted for products that are prone to foaming.
Product stability: thanks to automatic formula control and optimized cleaning and sterilization performance.
Reduce costs: thanks to the huge difference in batch sizes that can be produced on the same equipment, as well as the efficient emulsification establishment ability.

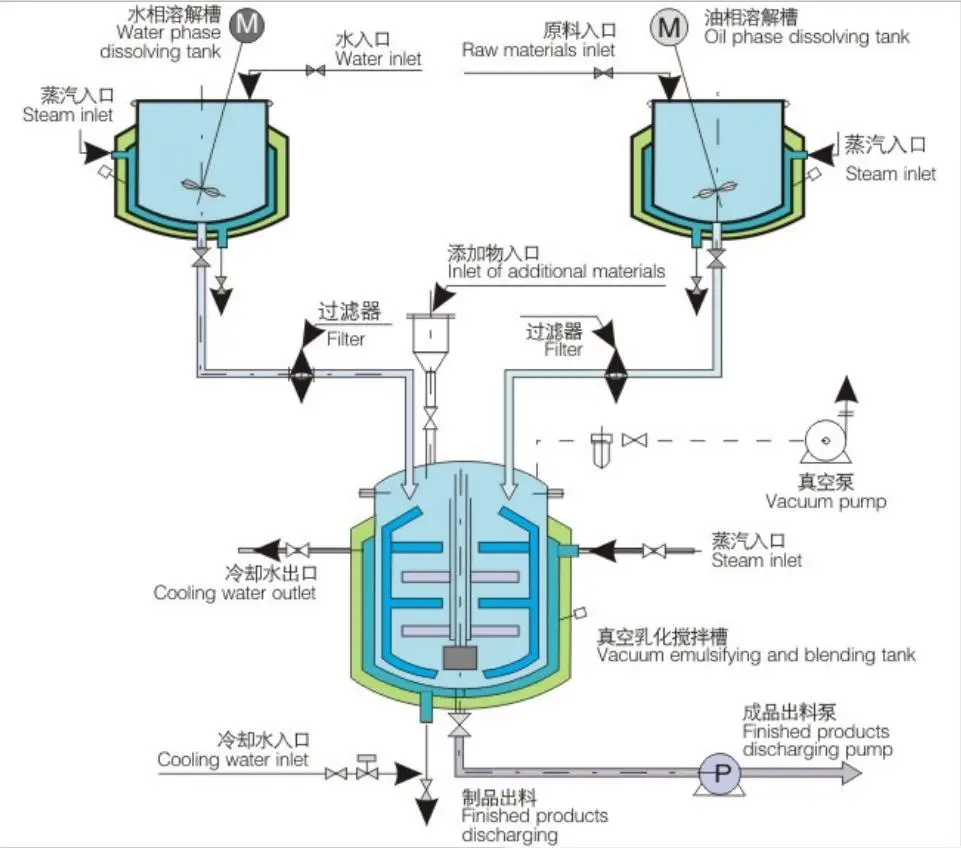

Production Process of Vacuum Emulsifying Machine:
Product Function Brief:
Stainless steel: SUS316L
Adopt hydraulic lift cover
High-speed homogenizing blender(speed from 0-3000RPM, frequency speed regulation)
Scraper blender speed: 0-83 RPM.
The working procedure is operated in the condition of vacuum in order to prevent the material coming into being buble after high-speed blending and reach the request of sanitation and asepsis.
CIP cleanning system is equipped in this system.
The contact part of vessel is made of SUS316L. other parts are made of SUS304.
Mirror finish of the inside surface is 300mesh.
Using SIMENS motor in order to ensure the stabilization of the contral.
Using Panasonic transducer.
Technical Parameter:
| Model | Volume of main pot(L) | Emulsifying motor | Mixing motor | Oil & water pot capacity(L)) | Dimension (mm) | Weight (kg) | ||
| Power (KW) | Speed (rpm) | Power (KW) | Speed (rpm) | |||||
| JRGP-50 | 75 | 3 | 0-3000 | 0.75 | 0-74 | 45/65 | 2400*2100*1900-2500 | 1600 |
| JRGP-75 | 100 | 3 | 0-3000 | 1.1 | 0-74 | 45/75 | 2600*2500*2000-2700 | 1700 |
| JRGP-100 | 130 | 4 | 0-3000 | 1.5 | 0-74 | 70/100 | 2600*2700*2050-2800 | 1800 |
| JRGP-200 | 260 | 5.5 | 0-3000 | 2.2 | 0-74 | 120/190 | 2900*3000*2400-3350 | 2300 |
| JRGP-300 | 375 | 7.5 | 0-3000 | 3 | 0-74 | 150/260 | 3000*3200*2600-3600 | 2500 |
| JRGP-500 | 620 | 11 | 0-3000 | 4 | 0-63 | 300/460 | 3500*3400*2800-4000 | 3300 |
| JRGP-1000 | 1250 | 15 | 0-3000 | 5.5 | 0-50 | 620/900 | 4100*4100*3600-5100 | 5000 |
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

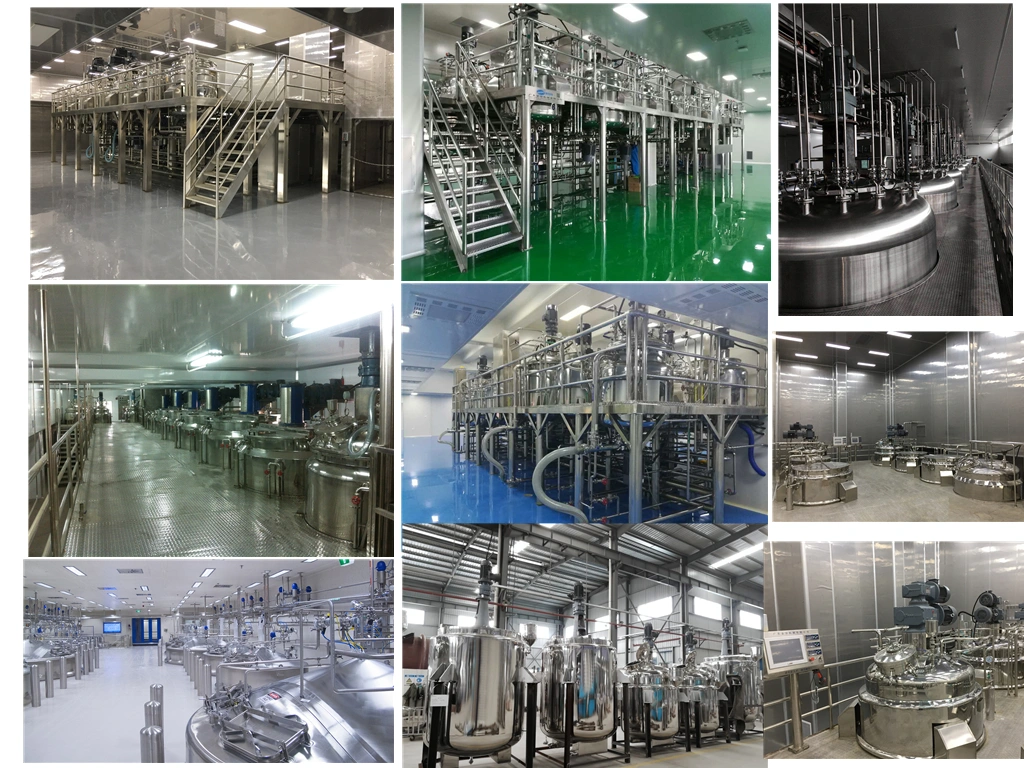

Project Example:
Our semi-automatic series & Automatic series Production Line has win the acknolwledge by many big enterprise at home and abroad.
Our production line is specially designed according to user's production technics and condition, and our company can provide from design, production, installment to raw material supply, which means the complete process of the project.

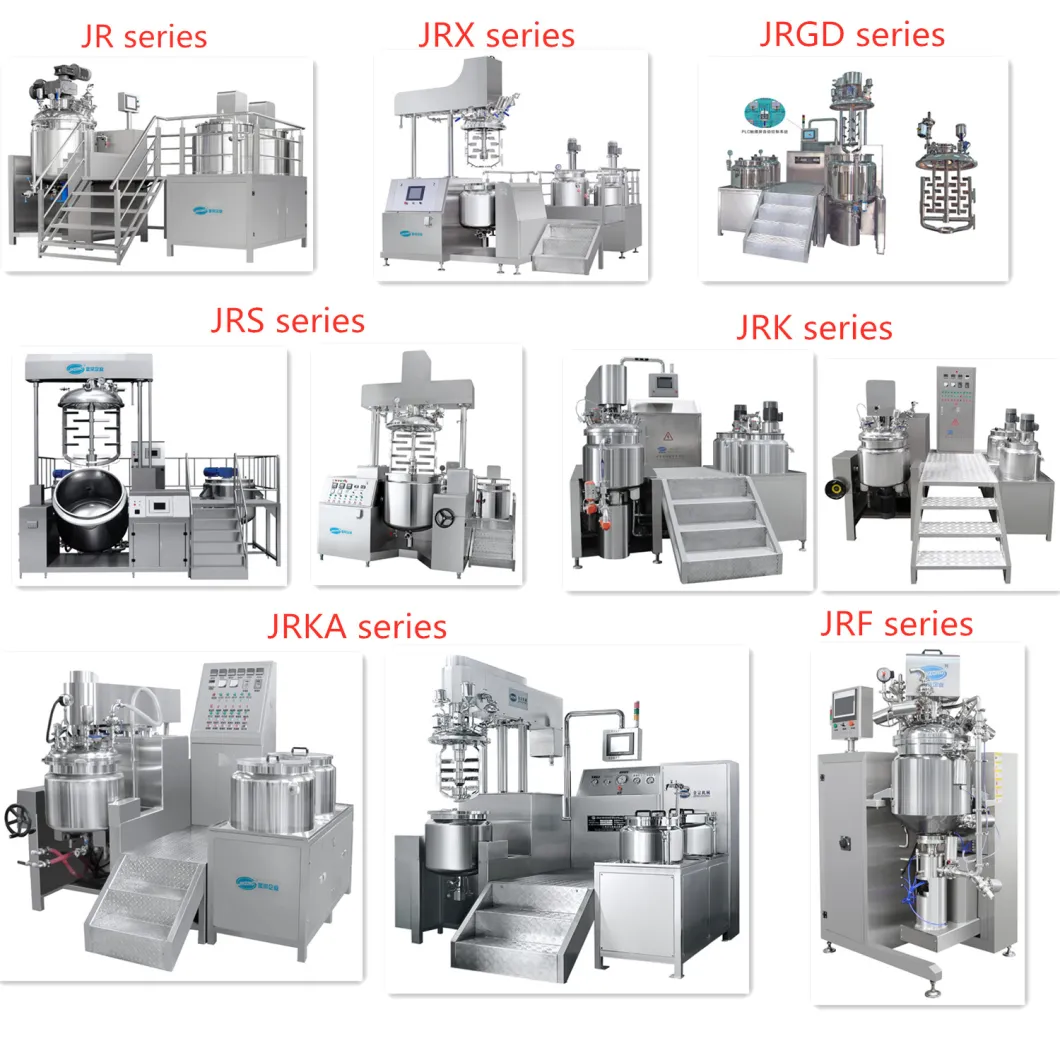

Different Type Vacuum Homogenizing Emulsifying Mixer for reference:
Please let me know your bottles' size and shape, cap's size and shape, label's shape, we will make a complete solution according to your requirements for you!
