Vacuum Mixer Emulsifier Cosmetic Cream/Lotion/Ointment Maker Gel Wax Paste Making Mixing Machine
1. Applications:The emulsifying effect is more prominent for materials of high base viscosity and high solid content. This machine is GMP as well as FDA standard, and is widely used in the high efficiency production of creams and ointment in cosmetics, pharmacy and chemicals. The product is widely applied in daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pesticide, fertilizer, fine chemical industry,etc.
Preparations, injections, APIs, Drugs.
Polysaccharide cellulose hemostatic isolation repair glue, hyaluronic acid dressing, collagen dressing, hypochlorite disinfectant
API, sub packed powder injection, lyophilized powder injection, cephalosporin solid, tablet, capsule, granule, small volume injection
Microcrystalline cellulose TC, TF, Tl, TLF, TP, TM, TMS, TMT, top series
Vitamin tablets, vitamin C pills, vitamin E, vitamin B, vitamin; auxohormome; nutramin
Veterinary biological products, veterinary pharmaceutical preparations and feed additives
Soft capsules, analgesic and anti-inflammatory, cardio cerebrovascular, oral cephalic blisters, brain tumor drugs, cephalic blisters for injection
Anti allergic drugs, circulatory system drugs, hormones and endocrine regulating drugs, antipyretic analgesic and non steroidal anti-inflammatory drugs, digestive system drugs, anti-tumor drugs, cervical cancer inhibitors, anticoagulants, vasodilators, antiplatelet aggregators, immunopotentiators
Fang shanneng, ademetionine p-toluenesulfonate, N-acetylneuraminic acid, cytidine disodium triphosphate, citicoline
Citicoline sodium, poly cytidine acid, creatine phosphate sodium, adenosine triphosphate disodium, poly inosinic acid, reduced glutathione, adenosylmethionine succinate
Research and development of cardiovascular, anti-tumor, liver protection, antibiotics, digestive and hemostatic drugs

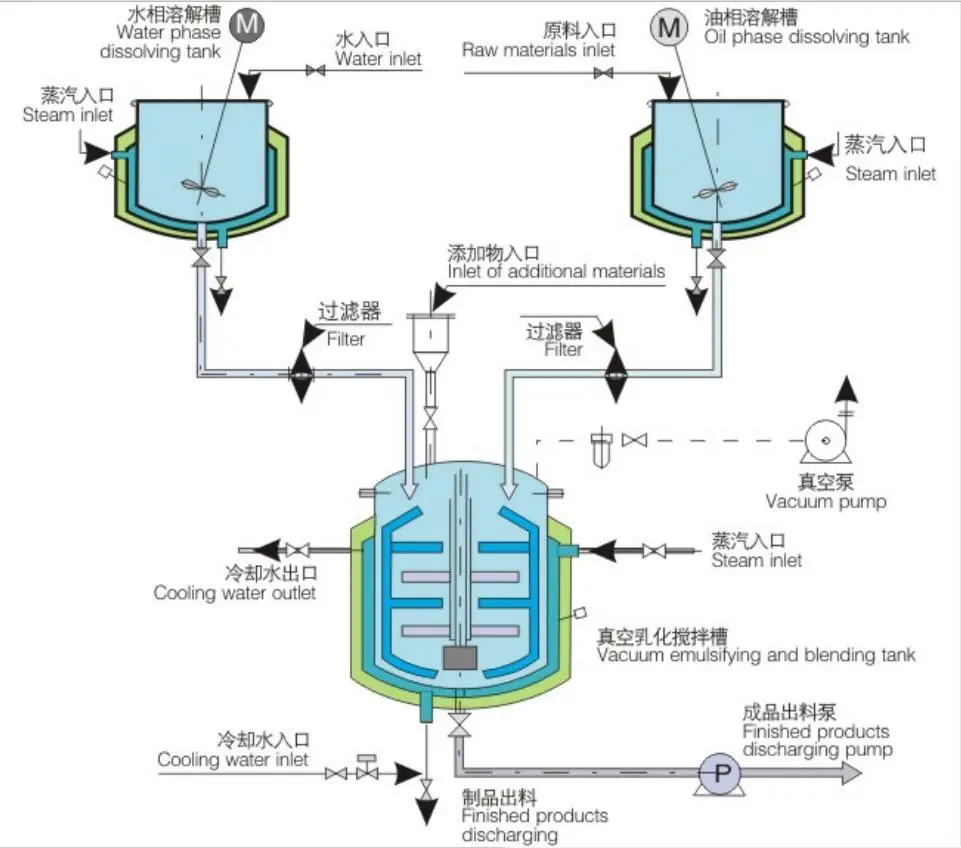

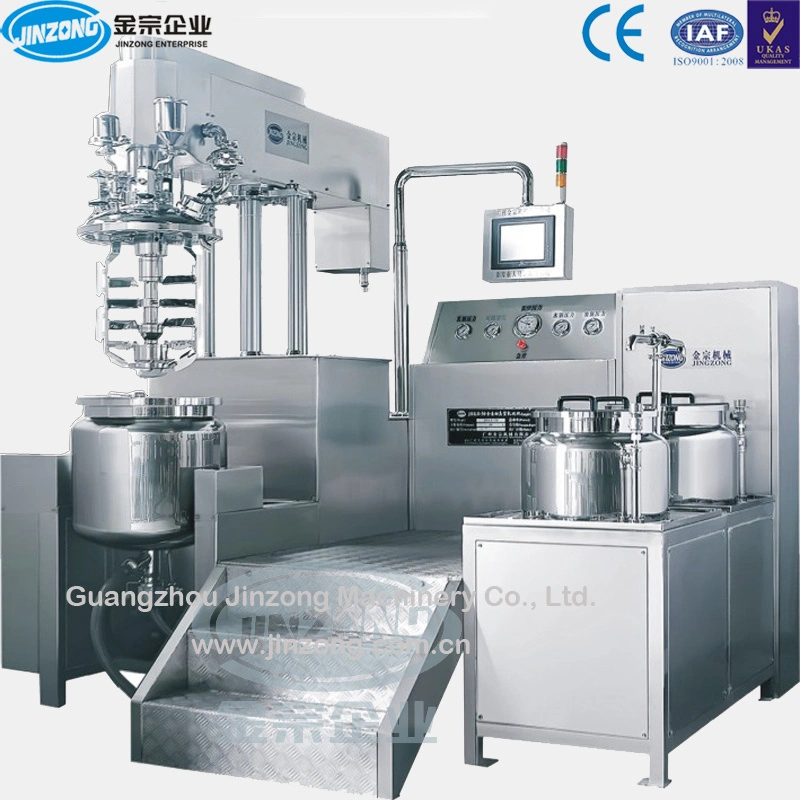

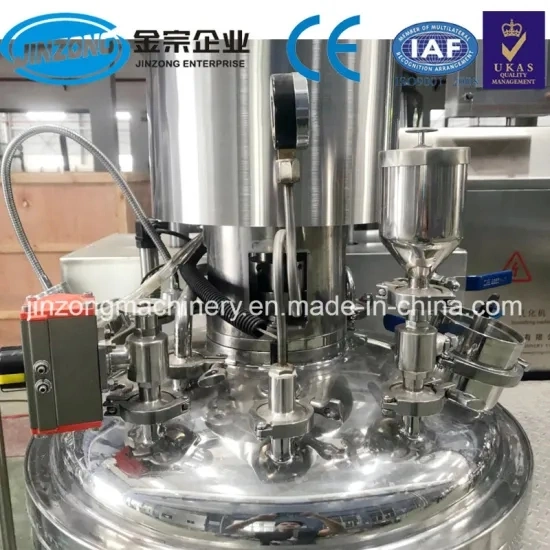

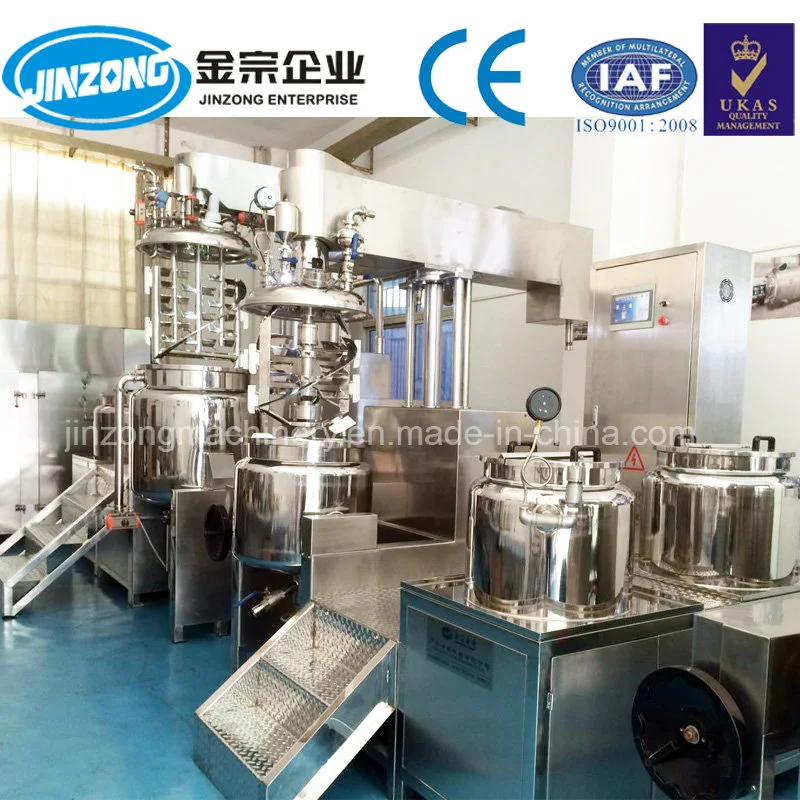

Pediatric medicine, cardiovascular medicine, anesthesia, severe medicine and chronic disease medicine2. Description:Our vacuum homogenizing emulsifying mixer combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.The vacuum homogenizing emulsifying mixer combines is developed on the basis of JRGD/Z, it is with fixed high-efficiency homogeneous emulsifier at the bottom, the emulsifying cover use the hydraulic pressure ascending, and main boiler fixed or can be design to the dumping ,the electrical control system with manual button control ,non-PLC and touch screen, the price is moderate.so it is very suitable for the high-efficiency production of various kinds of cream products.

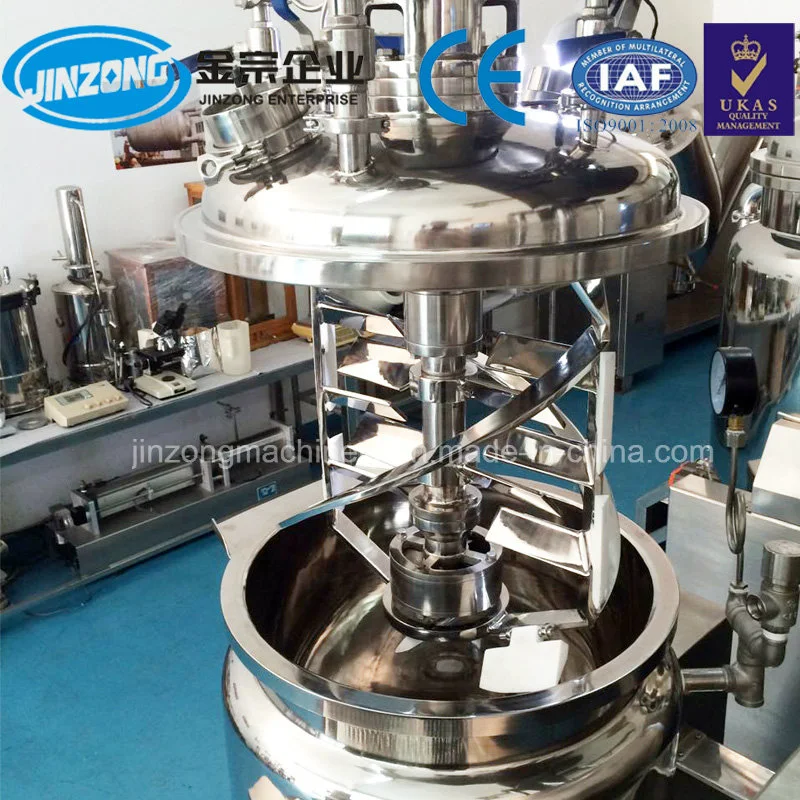

3. Performances and Features:A. High efficient emulsifier: it is a high efficient German compound homogeneous emulsifier with six-layer shear teeth of special structure, shearing more times, transient partial pressure up to 100Mpa above .its emulsification effect for materials which goes through the emulsifier is dozens of times than that of common ones.B. Precision motion mechanism and cooling system: high efficiency, power loss is small, heterogeneous devices can work long time, the application of special process requirementsC. Dead space-free multi-functional flow disturbance stirring system: it may effectively improve the stirring rate and mixing effects;D. Production of non-dead, out of less material residue: the JRKA homogeneous emulsifier type on the same machine, than the other types of emulsion is better;E. The cover of the main boiler can lift : to ensure that maintenance and cleaning easy;F. All lifting system uses hydraulic mechanism to ensure the smooth movement, accurate, and security;G. Manual control, operation and easy maintenance.
4. Technical Specifications:
| Model | Volume of main pot(L) | Emulsifying motor | Mixing motor | Oil & water pot capacity(L)) | Dimension
(mm) | Weight
(kg) |
Power
(KW) | Speed
(rpm) | Power
(KW) | Speed
(rpm) |
| JR-100 | 130 | 4 | 0-3000 | 1.5 | 0-74 | 70/100 | 2600*2500*2300 | 1200 |
| JR-200 | 260 | 5.5 | 0-3000 | 2.2 | 0-74 | 120/190 | 2800*3000*2650 | 1600 |
| JR-300 | 375 | 7.5 | 0-3000 | 3 | 0-74 | 150/260 | 2900*3000*2750 | 1900 |
| JR-500 | 620 | 11 | 0-3000 | 4 | 0-63 | 300/460 | 3300*3550*3050 | 2500 |
| JR-1000 | 1250 | 15 | 0-3000 | 5.5 | 0-50 | 620/900 | 4100*3900*3500 | 4000 |
| JR-2000 | 2600 | 18.5 | 0-3000 | 7.5 | 0-42 | 1200/1500 | 4500*5200*4000 | 6000 |
| JR-5000 | 6500 | 22 | 0-3000 | 15 | 0-42 | 2500/3600 | 5100*6400*4800 | |
- Adopting imported frequency converter for speed adjustment.
2.High speed shearing homogeneous.
- The maximum emulsifying rotation speed: 4,200 rmp; highest shearing fineness: 0.2-5 μ m
3.Being aseptic.
- Adopting vacuum defoaming, avoid dust.
4.Stable control.

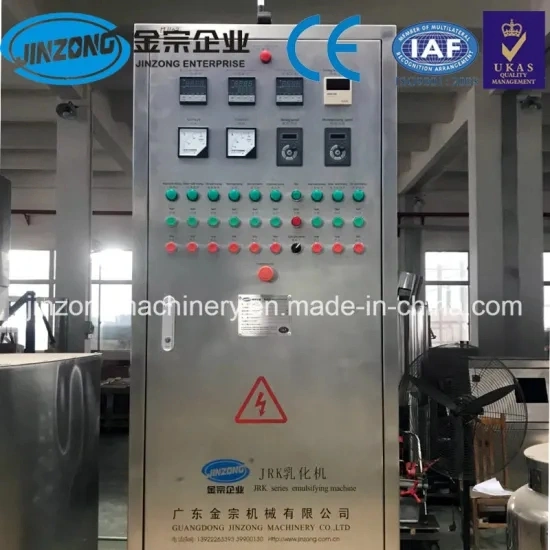

- Adopting imported control: German Siemens PLC brand
5.Convenient for cleaning and discharge.
- Adopting lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.6. Imported Materials:- Adopting imported 316L stainless steel materials, inside and outside polishing,conforming to GMP standard | Application: | Liquid with Suspended Solids, liquid wash, cosmetic beauty cream, shampoo, detergent etc |
| Function: | Mixing and homogenizing |
| Additional Capabilities: | Milling |
| Mixer Type: | Homogenizer |
| Homogenizer: | Bottom homogenizer with frequency inverter |
| Mixing: | Upper frame oar scrape mixer |
| Max. Loading Capacity: | 50-5000L |
| Dimension(L*W*H): | 3100*1750*3400mm |
| Voltage: | 380V/50Hz |
| Power(W): | 75KW |
| Heating method: | Electric heating / steam heating |
| Control: | Siemens PLC brand |
| Structure: | Water tank, oil tank, emulsifying tank, platform and cabinet |
| Material: | SUS304 & SUS316L (3 layers) |
| Certification: | CE |
| Warranty: | One year since the date of installation. |

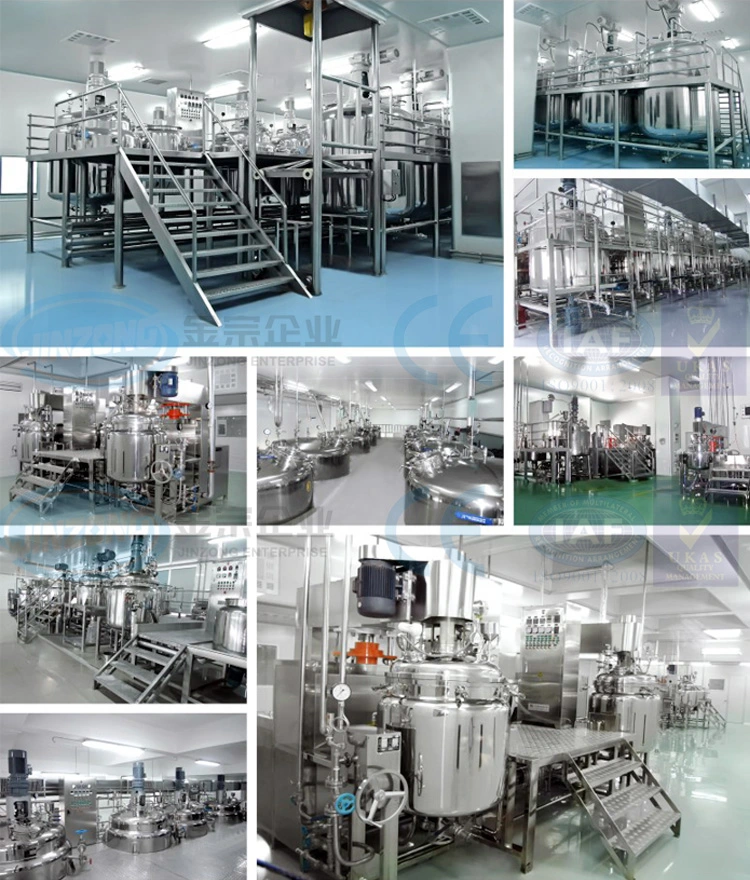

7. Project Example:

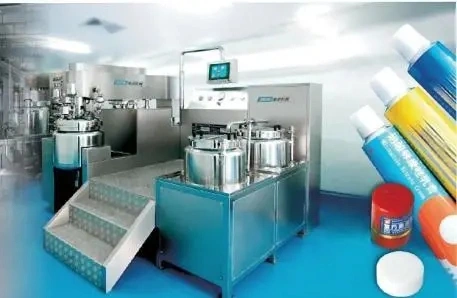

Cream Paste Production Projects
Ointment complete production line projects
Automatic Ointment Making Equipment
Vacuum Emulsifying ointment making machine
Cream mixer
API production line
Automatic Paste Filling Machine
Cream Emulsifier
Disinfectant/Gel Mixer

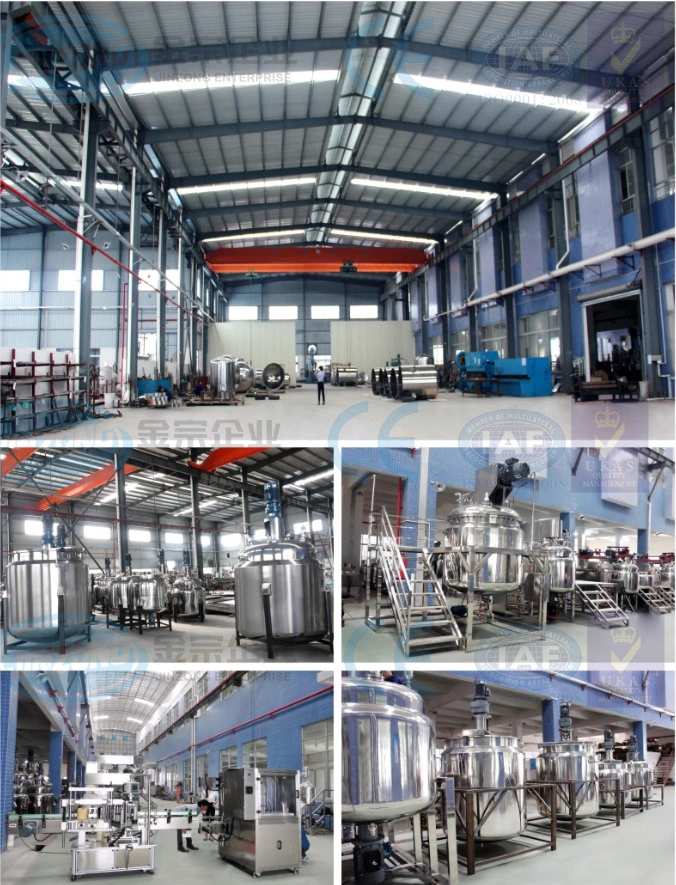

Welcome to china and Visit Our Factory !!
Company Information
1.Our history:
GUANGZHOU JINZONG MACHINERY CO.,LTD was established in 1999 as an own factory which is located in Guangzhou, China.
2.Our scale:
GUANGZHOU JINZONG MACHINERY CO.,LTD covers an area of 8,000 square meters and has about 200 employees, including 30 highly qualified staff members of specialists and engineers. With 25 well educated sales people from 5 different country so that our sales team provide service in 5 different languages.
Our experience and approach to engineering and manufacturing ensure that our products stand out among competitors and are the highest quality GMP Automatic euqipment available on the market.
Taking quality as priority, our QC staff members inspect all products piece by piece before delivery. We ensure that our products have good designs and top quality.
3.Our Mainly products:
We have extensive the experience in Manufacturing various kinds of GMP Automatic Equipments. we possess the very Professional workers in Production of Cosmetic Machinery ,Chemaical Machinery ,Pharmaceutical Machinery.
Most of our products have CE and IOS 90001:2000 Certificates.
4.Our mainly market:
Our products sell in United States, Canada, South America, Europe, Australia, the Middle East etc ,The products quality obtain customer Appreciation.
5.Our pursuits:
1) High Quality; 2) Quick Delivery; 3) Lowest Cost; 4) High Turnover; 5) High Efficiency; 6) Customers' Satisfaction 7)Best After-Sales Service
6.Our objective
Our objective is to establish a long-term and steady relationship with you and we hope to become your reliable cooperative partner.Please contact me if you are interested and have any questions
