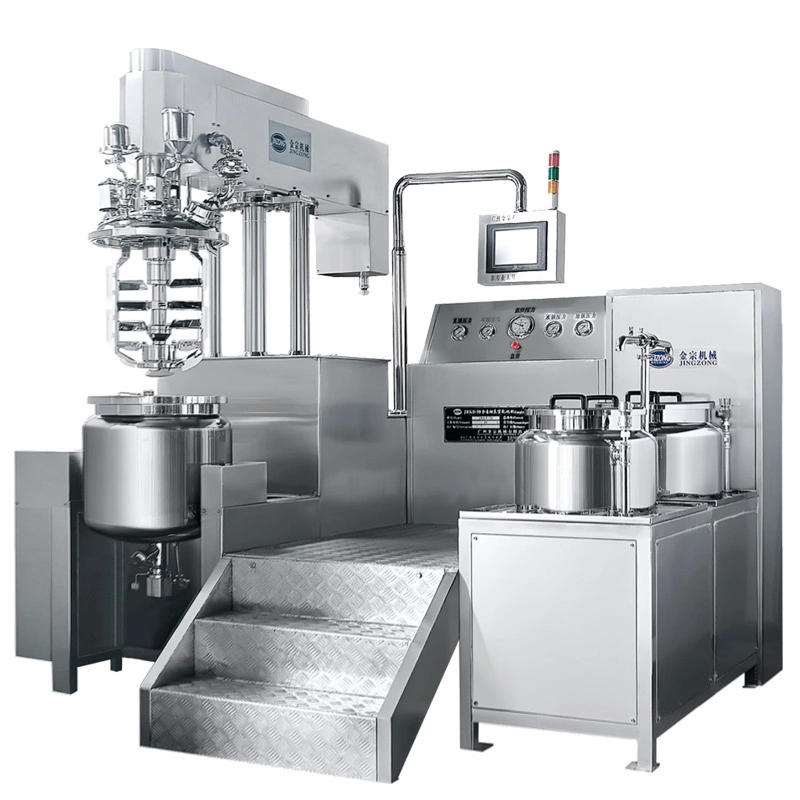

Vacuum Homogenizer Pharmaceutical Cream Manufacturing Plant Emulsifying Mixing Machine

Vacuum Homogenizer Pharmaceutical cream Manufacturing Plant emulsifying mixing machine
It's the most advanced homogenizer machine design from Europe.
The cream manufacturing plant consist the following equipments and accessories:
Manufacturing Vessel
Oil Phase Vessel
Water Phase Vessel
Storage Vessel
Working Platform
Vacuum Pump
Control Panel
Product Piping


Feature:
Working capacity from 50L to 2000L;
Suitable for cream and emulsions of 10,000~50,000cps viscosity;
Internal emulsifying and homogenizing by top mounted batch homogenizer;
Contra mixing system of center agitator and wall scraper;
Outer frame agitator has triangle design for enhanced mixing;
Variable speed for homogenizer and agitators;
Oil hydraulic lifting system for easy cleaning and maintenance;
Double jackets for heating and cooling;
Different jacket designs available for steam and electric heating;
Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit;
Double temperature probes and controllers for electrical heating in main emulsification machine;
Vacuum system to take out the air bubbles during mixing and to transfer the ingredients;
Compressed air to discharge the finished product;
Tilting system for discharging finished product and easy cleaning;
Multiple safety protection devices for vacuum, hydraulic pump and workers;
All contact parts are made of SS316L and mirror polished;
Spray ball is equipped to connect customer's CIP;
Optional control system: Electric control box,     PLC system, Automatic control system
The specifications of the vacuum emulsification equipment comply with GMP regulations;
Push buttons control panel for easy operation;
