Vacuum Homogenizer Emulsifying Mixing Machine Ointment Mixer
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Trademark | JINZONG | Transport Package | Wooden Case |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8474900000 |

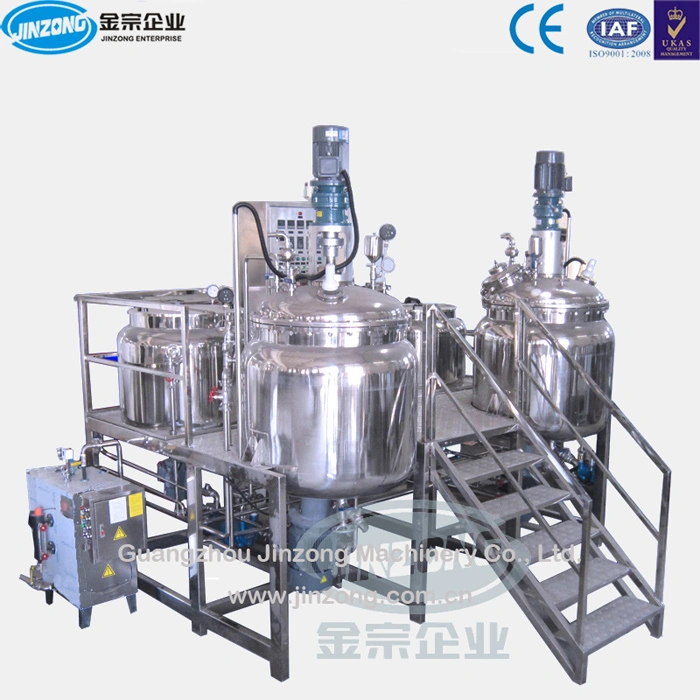

Vacuum Homogenizer Emulsifying mixing machine Ointment Mixer
Available capacity: 100 Liter to 20000 Liter
Features:

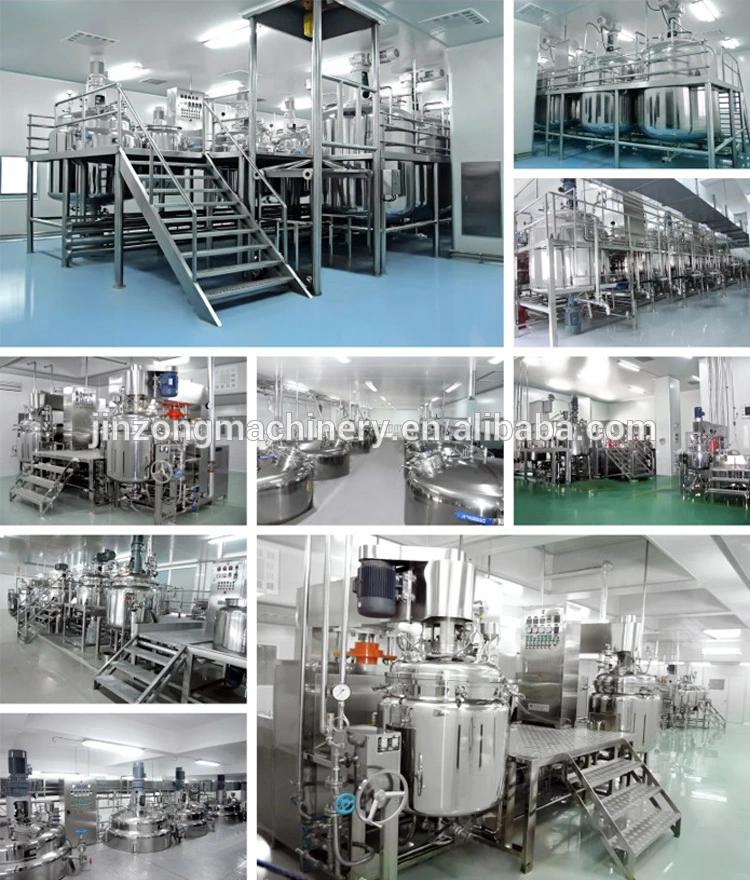

Project case
We are the manufacturer of Ointment Manufacturing Plant, which is manufactured using finest quality stainless steel material procured from the reliable vendors. These products are used in different industries such as food & beverage, pharmaceutical, pesticides, chemical as well as cosmetics. We manufacture these products in different quantities and these products are highly known for their long working life.
Available capacity: 100 Liter to 20000 Liter
Features:
High sanitary standard Design & Manufacturing
Internal surface Mirror polished to less than 0.5 Micron RA

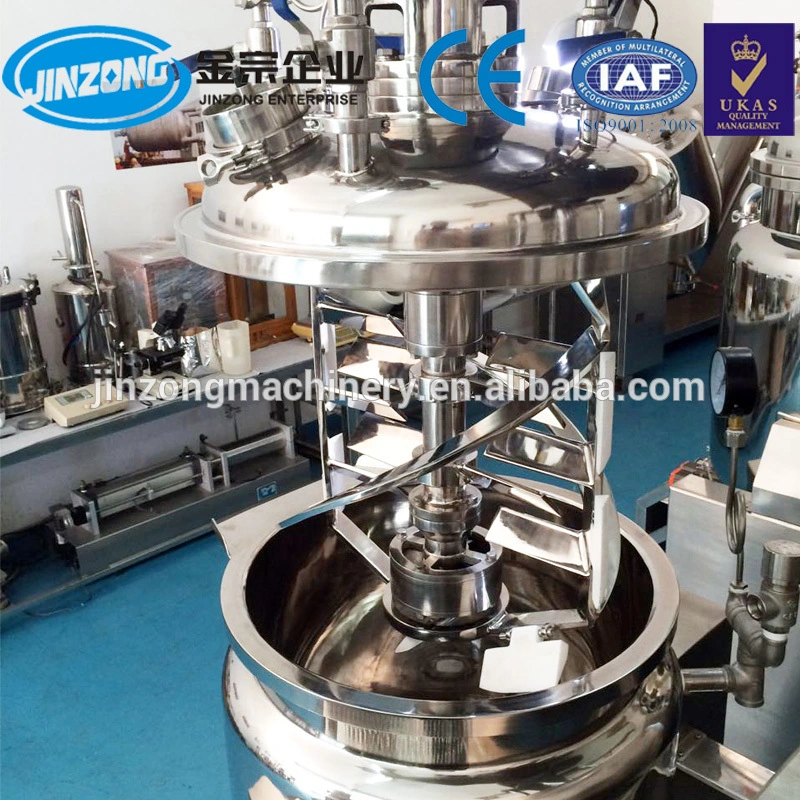

Double Speed contra-mixing slow agitator with step less speed control

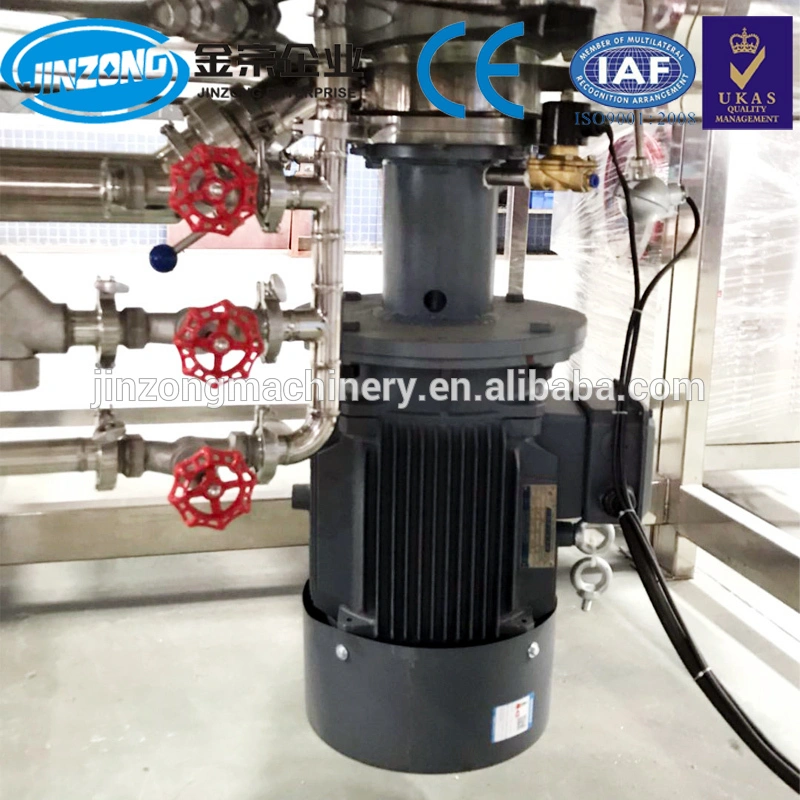

Inbuilt/Inline High speed Homogenizer
Hydro Lift top covers
SS 316L contact parts & SS 304 Non-contact parts
High standard Automation System
Smooth processing with low Shear force
Teflon scrapping mechanism with Agitator
Internal/External re-circulation system
The Plant is designed to be operated only by one operator and one helper.
All material transfers are done by vacuum or by transfer pumps.
All the vessels are cGMP
Silicon (food grade) gasket Used.
All contact parts are made of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free.
All pipes, pipe fittings and valves are made of SS304 / SS316 ( as per customer requirement ) seamless quality, internally electro polished, with tri-clover ended joints.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
Internal surface Mirror polished to less than 0.5 Micron RA
Double Speed contra-mixing slow agitator with step less speed control
Inbuilt/Inline High speed Homogenizer
Hydro Lift top covers
SS 316L contact parts & SS 304 Non-contact parts
High standard Automation System
Smooth processing with low Shear force
Teflon scrapping mechanism with Agitator
Internal/External re-circulation system
The Plant is designed to be operated only by one operator and one helper.
All material transfers are done by vacuum or by transfer pumps.
All the vessels are cGMP
Silicon (food grade) gasket Used.
All contact parts are made of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free.
All pipes, pipe fittings and valves are made of SS304 / SS316 ( as per customer requirement ) seamless quality, internally electro polished, with tri-clover ended joints.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
Project case
We are the manufacturer of Ointment Manufacturing Plant, which is manufactured using finest quality stainless steel material procured from the reliable vendors. These products are used in different industries such as food & beverage, pharmaceutical, pesticides, chemical as well as cosmetics. We manufacture these products in different quantities and these products are highly known for their long working life.
For manufacturers, it is a value-for-money product. It promotes economic growth by increasing productivity and cutting production costs. The product has a strong bearing capacity for heavy materials processing.
The product has alleviated the need to hire a large workforce. From a cost-savings standpoint, it can reduce the size of a business's workforce. The product has a strong bearing capacity for heavy materials processing.
