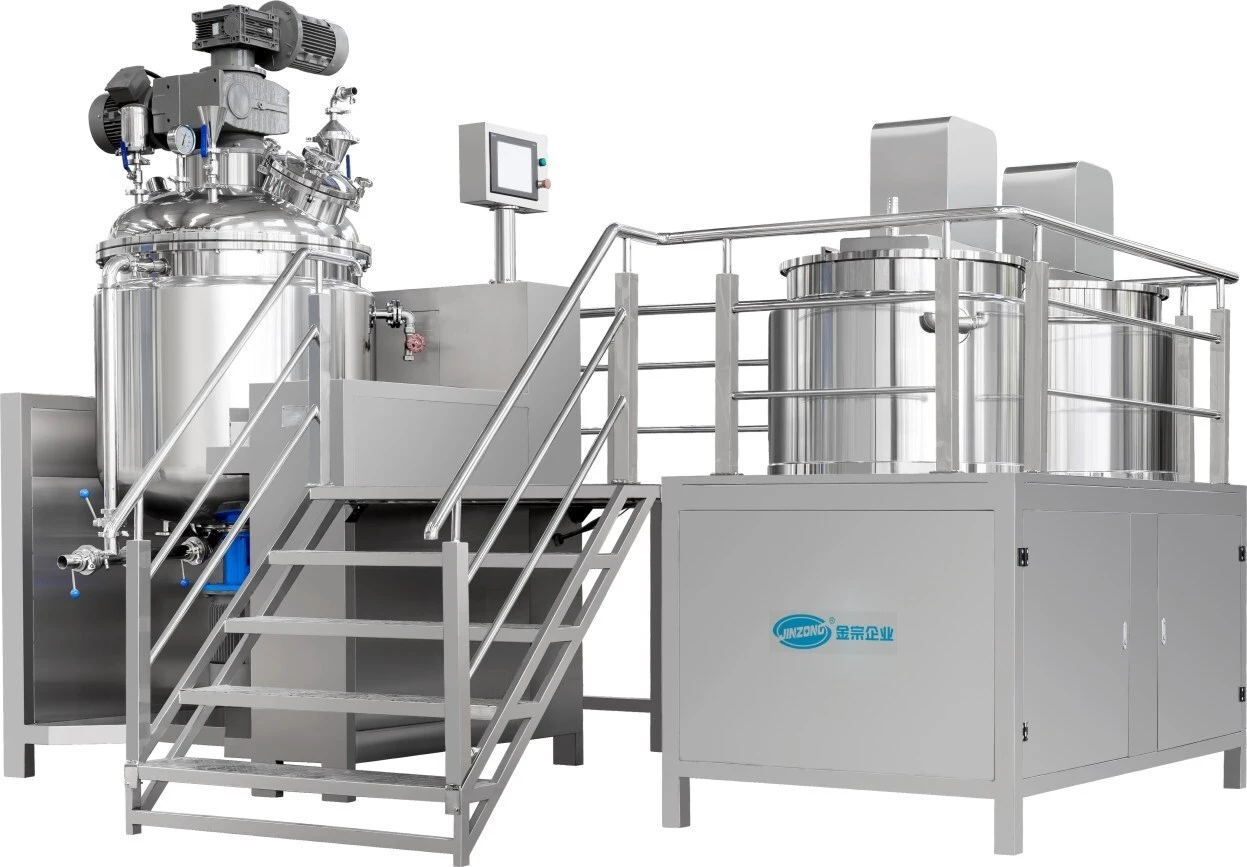

Vacuum Emulsifying Mixing Machine Unguent Machine for Pharmaceutical
| Model NO. | JR-100 | Condition | New |
| Warranty | 1 Year | Product Type | Pharmaceutical |
| Trademark | Jinzong | Origin | China |
1.Vacuum function, aseptic environment.
- Adopting vacuum defoaming, avoid dust.
2.Variable speed.
- Equipped with high quality frequency converter for speed adjustment.
3.High speed shearing homogeneous.
- The maximum emulsifying rotation speed: 4,200 rmp; highest shearing fineness: 0.2-5 μ m
4.Stable control.
- German Siemens PLC brand controller
5.Convenient for cleaning and discharge.
- Easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
6.MOC.
SUS316L for all contact product parts & SUS304 for external, inside and outside polishing,conforming to GMP standards.
| Application: | Liquid with Suspended Solids, ointment, paste, disinfectant, liquid wash, cosmetic beauty cream, shampoo, detergent etc |
| Function: | Mixing, emulisifying and homogenizing |
| Additional Capabilities: | Milling |
| Mixer Type: | Homogenizer |
| Homogenizer: | Bottom homogenizer with frequency inverter |
| Mixing: | Upper frame type stirring blade with Teflon scarpers |
| Max. Loading Capacity: | 50-5000L |
| Dimension(L*W*H): | 3100*1750*3400mm, customized |
| Voltage: | 380V/50Hz |
| Power(W): | 7.5-75KW |
| Heating method: | Electric heating / steam heating |
| Control: | Siemens PLC brand |
| Structure: | Water tank, oil tank, emulsifying tank, platform and cabinet |
| Material: | SUS304 & SUS316L (3 layers) |
| Certification: | CE |
| Warranty: | One year since the date of installation. |

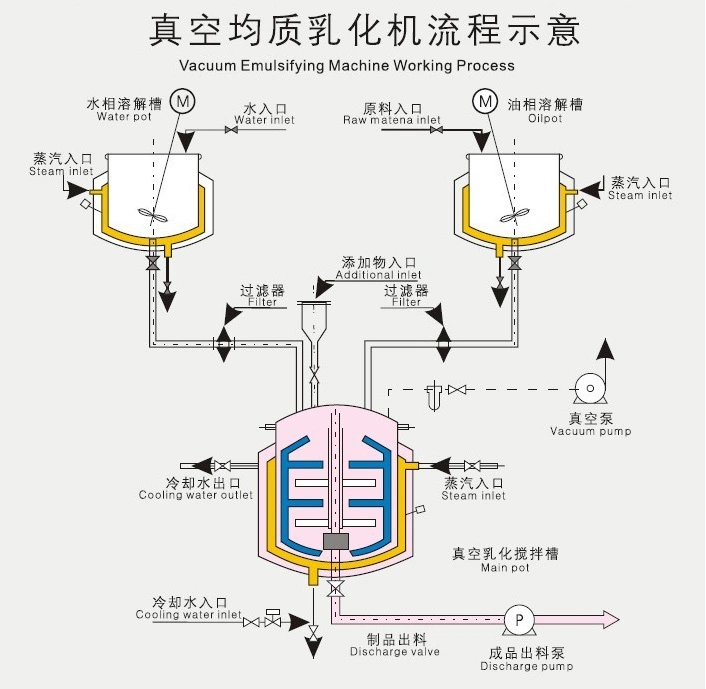

Working process of JinZong Vacuum Emulsifying mixing machine :

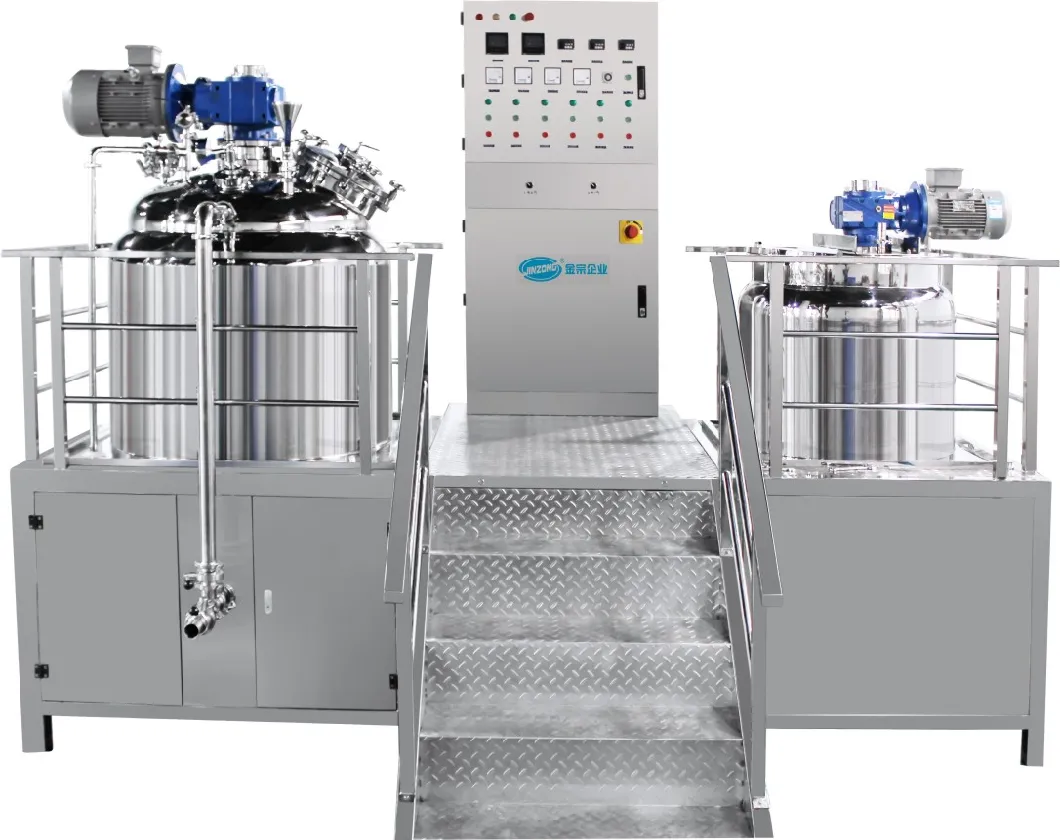

Vacuum emulsifying mixing machine Unguent Machine for Pharmaceutical

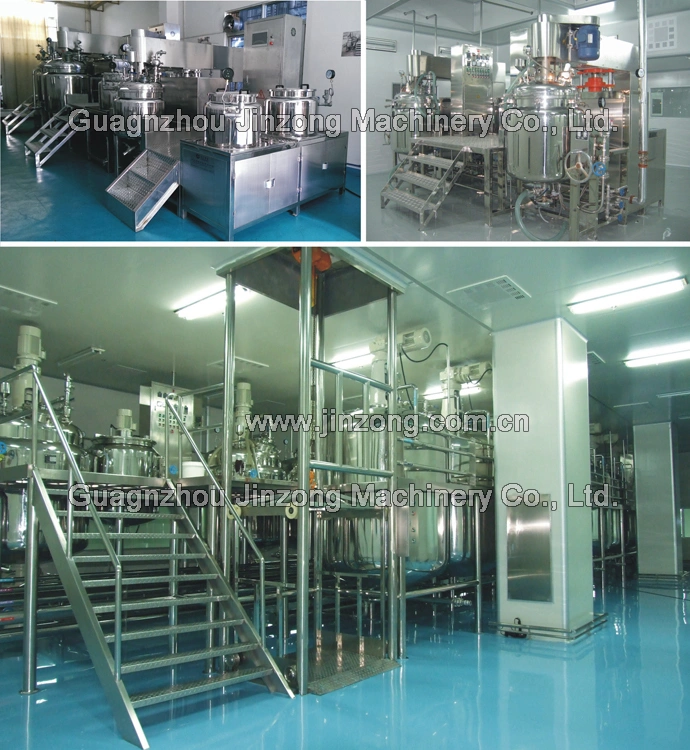

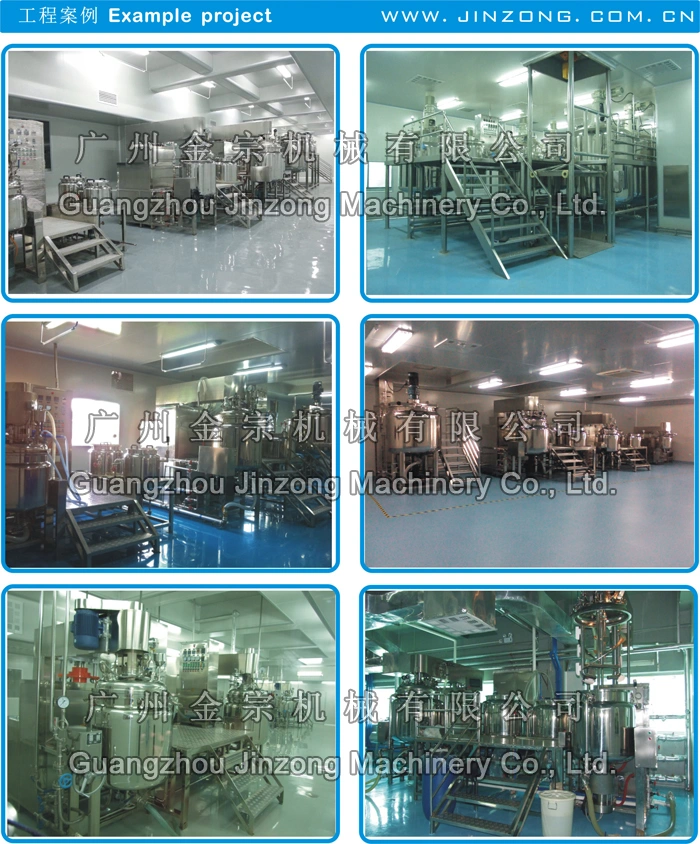

Vacuum emulsifying mixing machine Unguent Machine for Pharmaceutical project cases
