Starch Paste Kettle for Preparation of Binder Materials Cooking Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Trademark | JINZONG | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |

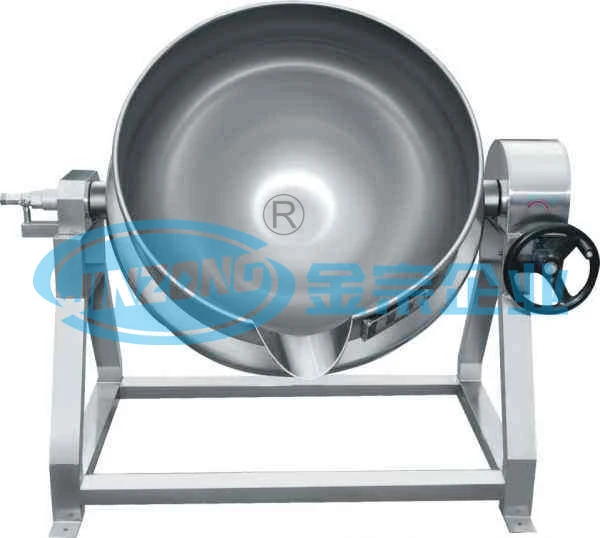

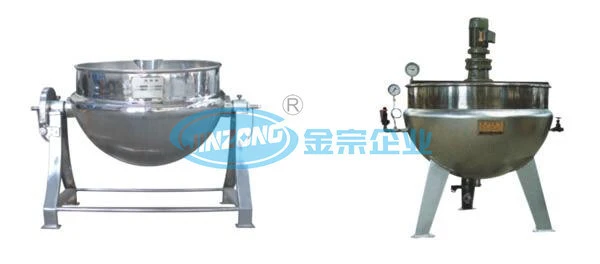

Starch Paste Kettle for Preparation of Binder Materials cooking machine
Our huge range of Motorized Tilting Paste Kettle is manufactured with the use of latest equipment and sophisticated tools. These Paste Kettle are manufactured for mixing numerous sticky products at the controlled pressure or under a certain defined temperature. This is facilitated with mixing the stirrer, existing manually or automatically for the purpose of tilting the vessel in a manual or motorized manner. With the help of controller & pressure gauge, the display or control of the atmosphere of mixing can be done.
technical parameter:

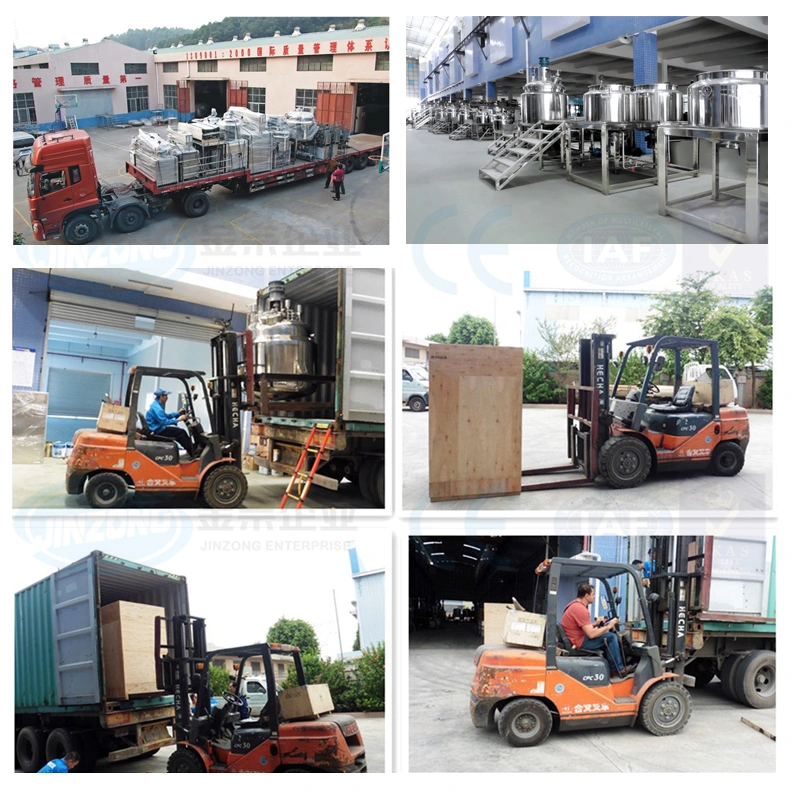

Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
Product Description
The Starch Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
The Starch Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
Features:
With inbuilt heating element Jacket
Flame proof construction
Resistant against abrasion
Flame proof construction
Resistant against abrasion
Salient Features of Starch Paste Kettle
All the contact parts from SS 316 and non contact SS 304
Mounting stand from SS 304
Top drive with German make
Discharge via Tilting
With inbuilt heating element Jacket
Mounting stand from SS 304
Top drive with German make
Discharge via Tilting
With inbuilt heating element Jacket
Optional Accessories:
Insulation Jacket on Steam Jacket
Flame Proof Construction
Electrical Heater
Flame Proof Construction
Electrical Heater
Our huge range of Motorized Tilting Paste Kettle is manufactured with the use of latest equipment and sophisticated tools. These Paste Kettle are manufactured for mixing numerous sticky products at the controlled pressure or under a certain defined temperature. This is facilitated with mixing the stirrer, existing manually or automatically for the purpose of tilting the vessel in a manual or motorized manner. With the help of controller & pressure gauge, the display or control of the atmosphere of mixing can be done.
technical parameter:
Model | G50 | G100 | G200 | G300 | G400 | G500 | G600 |
Effective volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Pan design pressure (Mpa) | 0.09 | ||||||
Jacket design pressure (MPa) | 0.15-0.8 | ||||||
Maxium tiltable angle | 90° | ||||||
Motor power (kw) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
Electric heating power (kw) | 6 | 12 | 18 | 18 | 24 | 36 | 42 |
Heating area (m2) | 0.46 | 0.58 | 1.13 | 1.43 | 1.75 | 2.00 | 2.30 |
Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
The product is competitively priced and widely used by people from all walks of life. The product requires less training than other same types.
The product, with so many advantages and huge economic benefits, has gradually developed to a popular trend in the industry. The product requires less training than other same types.
