Starch Paste Kettle Cooking Pot Open Heating and Mixing Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Trademark | JINZONG | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |

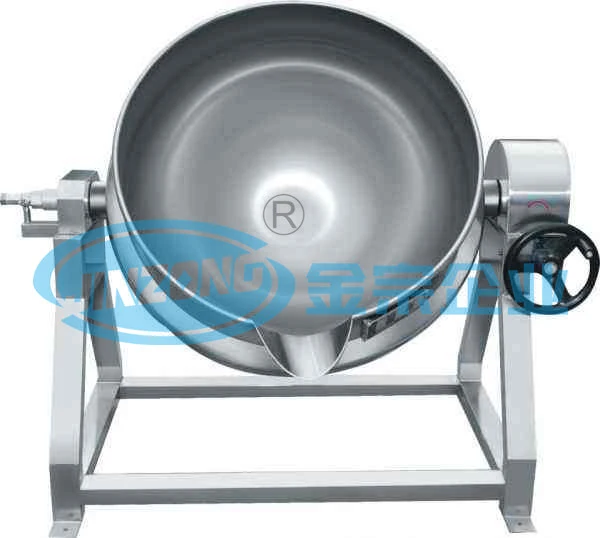

Starch Paste Kettle Cooking pot open heating and mixing machine
With thorough industry knowledge, we are engaged in manufacturing, supplying and exporting a wide range of Starch Paste Kettle used for paste / binder preparation for RMG process. Fine grade stainless steel is used in fabricating the machine ensuring the long service life and efficient working. Further, the kettle also has top drive with German make gear box making the working easier and defect free. Clients can avail these machines from us at market leading prices.
technical parameter:

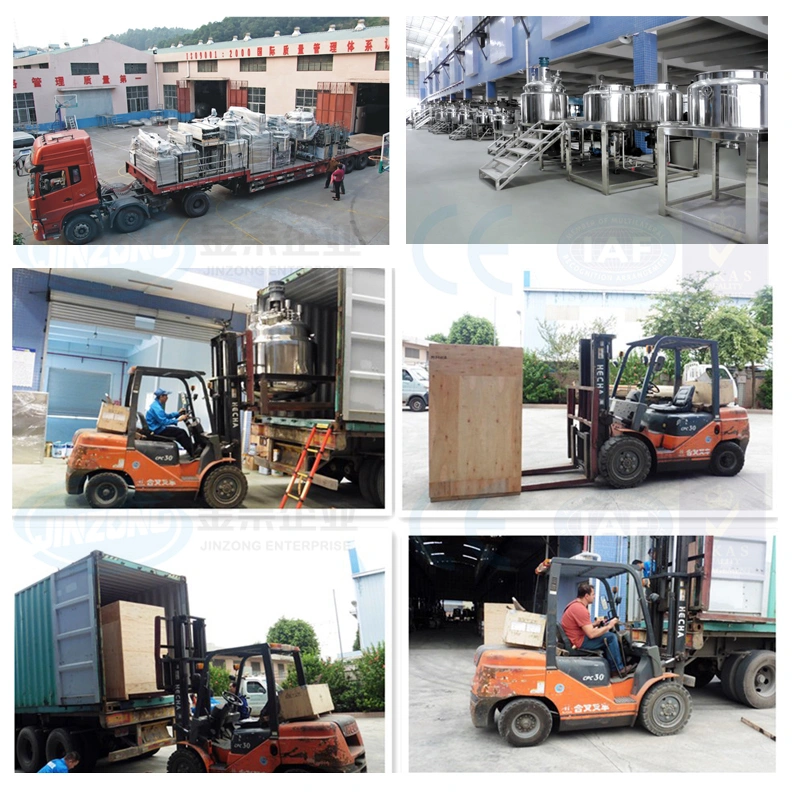

Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.

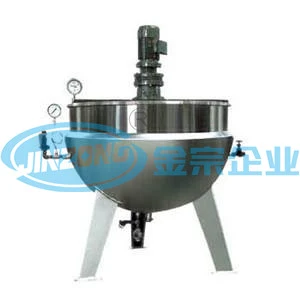

Product Description
The Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
The Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
Features :-
All contact part made of SS 316 as per GMP standard
Hemispherical design for proper mixing paste
Jacket provided with steam/ Thermic/ Fluid heating arrangement
Driven via motor assembly on top
Tilting arrangement for kettle is provided for discharge for starch paste
Anchor type impeller design for proper mixing of paste
Safe earthing system
Optional Accessories
Flameproof construction
All contact part made of SS 316 as per GMP standard
Hemispherical design for proper mixing paste
Jacket provided with steam/ Thermic/ Fluid heating arrangement
Driven via motor assembly on top
Tilting arrangement for kettle is provided for discharge for starch paste
Anchor type impeller design for proper mixing of paste
Safe earthing system
Optional Accessories
Flameproof construction
With thorough industry knowledge, we are engaged in manufacturing, supplying and exporting a wide range of Starch Paste Kettle used for paste / binder preparation for RMG process. Fine grade stainless steel is used in fabricating the machine ensuring the long service life and efficient working. Further, the kettle also has top drive with German make gear box making the working easier and defect free. Clients can avail these machines from us at market leading prices.
technical parameter:
Model | G50 | G100 | G200 | G300 | G400 | G500 | G600 |
Effective volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Pan design pressure (Mpa) | 0.09 | ||||||
Jacket design pressure (MPa) | 0.15-0.8 | ||||||
Maxium tiltable angle | 90° | ||||||
Motor power (kw) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
Electric heating power (kw) | 6 | 12 | 18 | 18 | 24 | 36 | 42 |
Heating area (m2) | 0.46 | 0.58 | 1.13 | 1.43 | 1.75 | 2.00 | 2.30 |
Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
Simplistic, yet stylish, the product is built to stand the test of time. People will find that this product is durable in use. It is highly resistant to UV light and flame.
One of the customers said: 'when I bought this product, I've checked it on the sole which is sturdy enough to provide protection from sharp objects.' It is highly resistant to UV light and flame.
