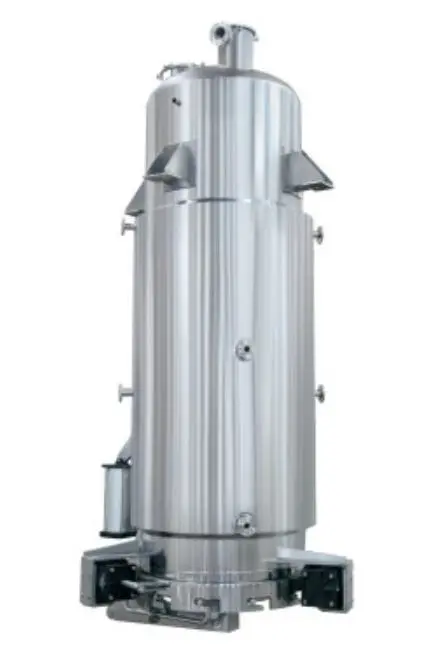

Stainless Steel Vertical Cylinder Type Extractor for Essential Oil Extration

Stainless Steel Vertical Cylinder Type Extractor for essential oil extration



The tank body is equipped with CIP cleaning automatic rotary spraying ball head, temperature measuring hole, explosion-proof view lamp, view mirror, rapid open feeding inlet etc., which can guarantee the convenient operation. It is in compliance with GMP standard. Using high quality material SUS304, and the jacket is made of completely sealed aluminum silicate blanket for temperature holding. The complete equipment supplied shall include: Defoamer, condenser, cooler, oil and water separator, filter and control desk for cylinder etc. Accessories.

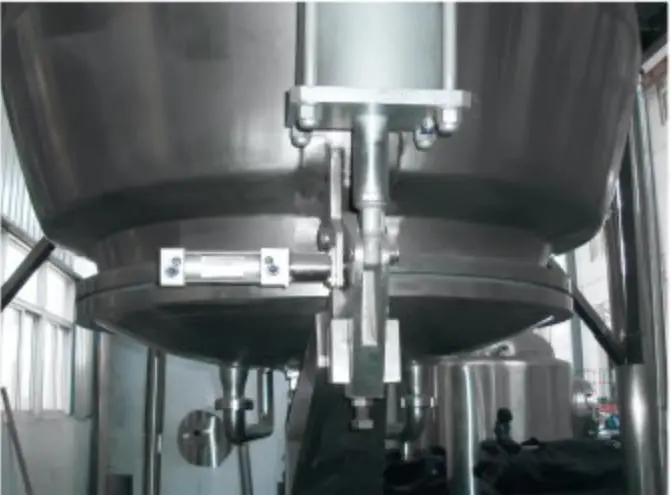

Rapid open safety discharging door
The tank cover can be automatically opened and closed. It adopts cylinder control and is provided with safety device to avoid accidental operation and provide high safety factor. It is suitable for use in small and medium-sized reside discharging vent.



Application of the extraction tank

The equipment is suitable for the operation of traditional Chinese medicine, food, chemical industry, such as atmospheric pressure, micro-pressure, water frying, warm leaching, hot reflux, forced circulation leakage, aromatic oil extraction and organic solvent recovery, etc., with high efficiency. Convenient operation and other advantages. Tank equipped with CIP cleaning system, in line with GMP medical standards.

Apply for extract liquid, cream & extract powder
