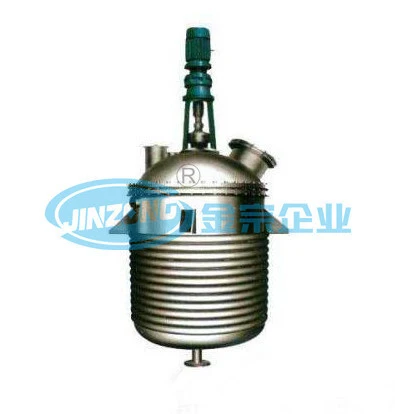

Stainless Steel Reactor Dissolving mixing tank
Custom manufacturer of stainless steel jacketed reactors. Features include C-coil & half pipe, internal coils, electric heaters & external panels. Reactors are available with 0-2.5Mpa operating pressure in conventional & dimpled jackets. Available in 304/304L, 316/316L.
.
Stainless Steel Reactor Dissolving Mixing Tank



 Stainless steel reaction tank is the key equipment for API production process. Our company can provide users various reactors with engineering design, equipment model selection guide, equipment machining, equipment installation and turn-key project.
Features:
capacity: 50L-50000L, customized
Weight: customized
Cerification: CE, ISO9001
Volume: customized
Place of Origin: Guangdong, China
Brand Name: Jinzong

Material
stainless steel, high temperature stainless steel, strong acid and alkali resistant stainless steel,

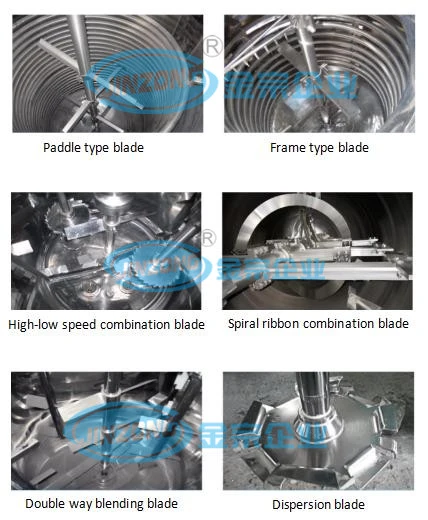

Stirring Type
Slurry type, anchor type, frame type, push type and single (double) spiral type, and other types of blades can be designed and manufactured according to customer requirements.
Stainless Steel Reactor Dissolving Mixing Tank
Model selection reference of reaction tank
CompositionInstructions
Specification (L)50-50000
Design Pressure (Mpa)Atmospheric Pressure or under pressure
MaterialCarbon steel, stainless steel, enamel, graphite
Heating FormsElectrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.
Cooling FormsRefrigeration medium in the internal pipe jacket
Blending PowerModel selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.
Stirring blade FormsAnchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
SealMechanical seal or stuff packing seal
Inner Surface TreatmentPolished or no polished
Discharge ValveFlanged ball valve, open downward discharge valve and others
Technological Pipe HoleManhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,

production details:

Stainless Steel Reactor Dissolving Mixing Tank

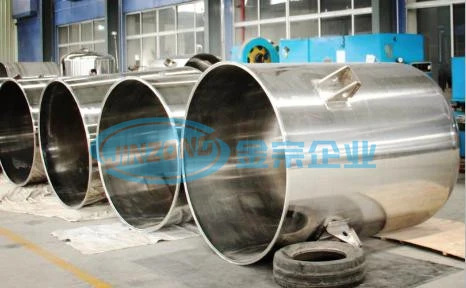

good quality stainless steel material with excellent polished treatment
Stainless Steel Reactor Dissolving Mixing Tank
Siemens agitator motor

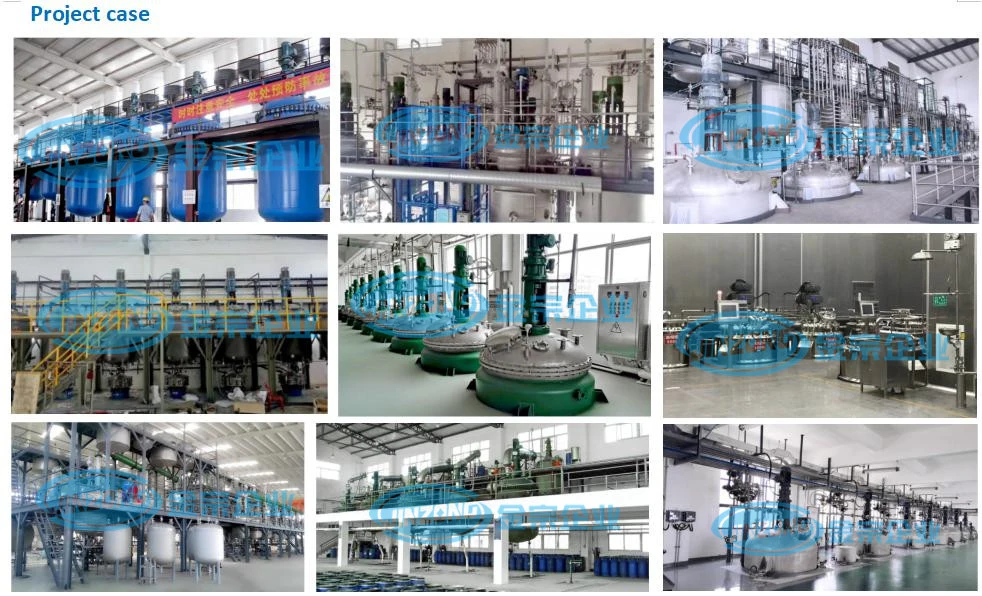

Project case

Stainless Steel Reactor Dissolving Mixing Tank
Stainless Steel Reactor Dissolving Mixing Tank
. Stainless Steel Reactor Dissolving Mixing Tank

Offering custom stainless steel fabrication as well as stock products, JINZONG provides round, vertical, domed top, horizontal, rectangular and clamp cylinder stainless steel tanks. With services such as painting, powder coating and installation, JINZONG features both quality stainless steel tanks and an experienced and skilled staff to ensure complete customer satisfaction.
Investing in this product will create a valuable resource for large production volumes, which in turn, will increase profitability. It is highly resistant to UV light and flame. Tasks that are too heavy or too delicate for human muscles to do can be done easily by this product. It is highly resistant to UV light and flame.
