Model NO. | YFA | Layout Type | Verticle |
Mixing Drum Shape | Drum | Additional Capabilities | Milling |
Operating type | Continuous Operating | Condition | New |
Trademark | JINZONG | Transport Package | Wooden Case |
Specification | SUS304, 316L | Origin | Guangdong |
HS Code | 8479820090 |
Stainless Steel Reaction mixing Tank, Reaction Vessel, Reactor API manufacturing machine

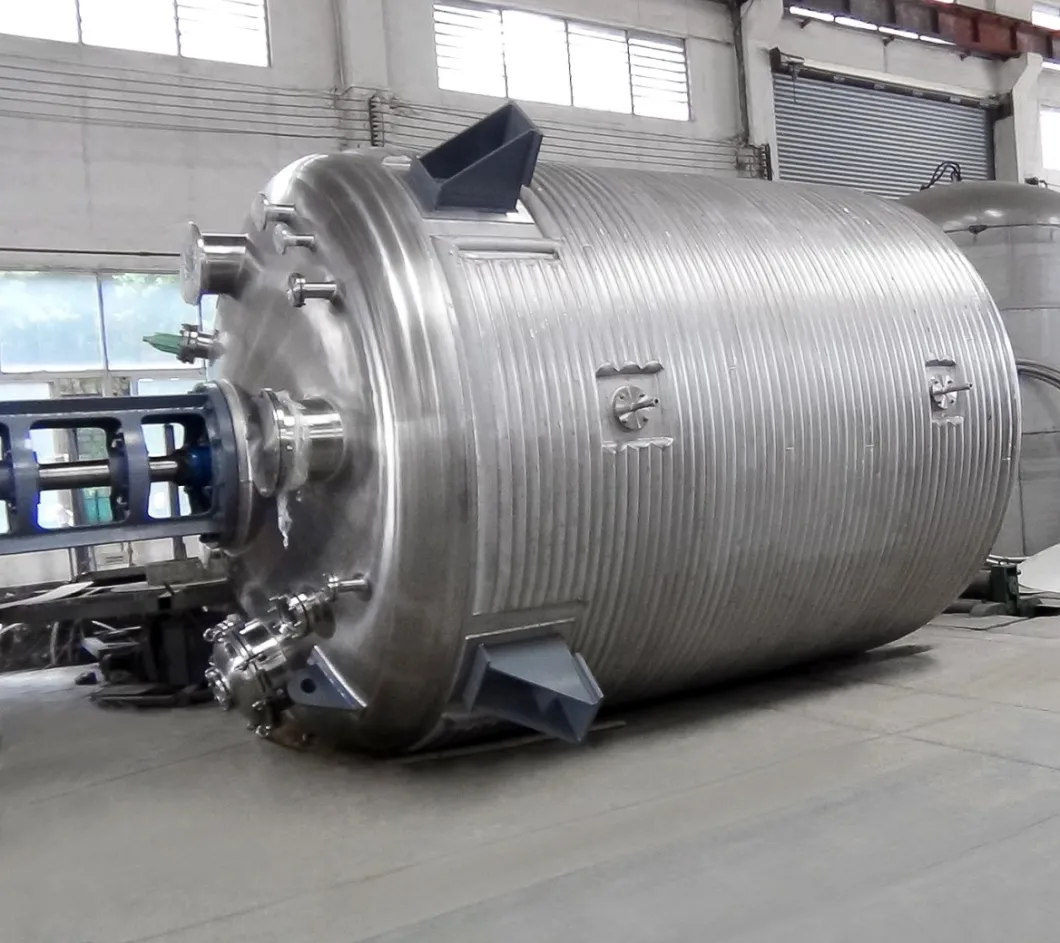

YFA series stainless steel reaction tank is used in pharmacy, chemical project, fine chemicals and composed chemical industry. The material is SUS304 or SUS316L. The tank body has jacket on it, and it has three optional jacket structures such as standard jacket, outer circular pipe jacket and Milo plate honey net jacket. It can be heated or cooled; inner surface adopts mirror polish, no dead angle, and closed design to ensure material in asepsis condition. The conic tip processed by spinning pressure, compliance with GMP standard. The agitator adopts sanitary mechanical seal, container insulation adopts polyurethane or alumina silicate, joint adopts ISO standard quick open clamp, sanitary and easy, transferring sledge processed by spinning pressure, outer surface adopts polish, sand-blast, dull polish or cold rolled original color subtopics. The machine equips with asepsis respirator, CIP cleaning spray nozzle, sight glass, and flange quick open manhole.
Stainless Steel Reaction tank, Vessel (reactor)

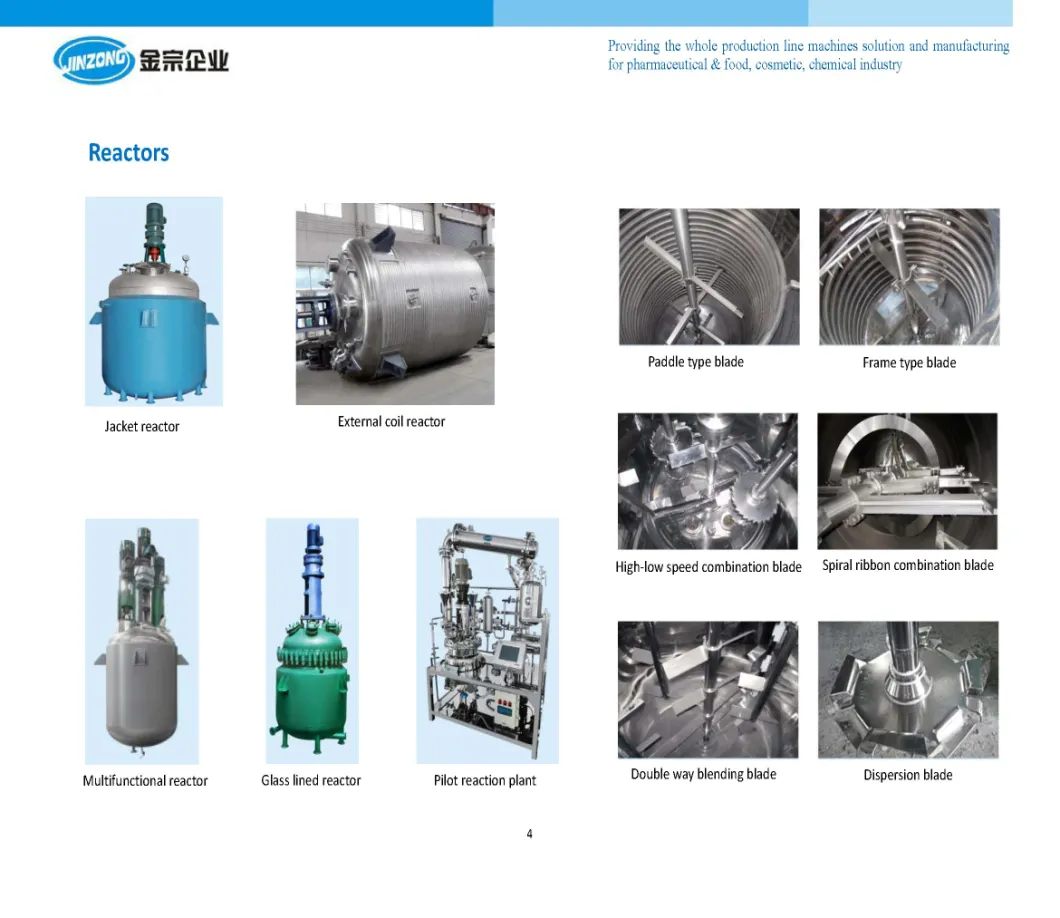

Reactor Series
The reaction kettle is widely used for reaction, evaporation, concentration, synthesization, polymerization, mineratization, etc. in chemical industry, medicine, dye, pesticide, organic synthesis, petroleum, food additives, industry of national defense and scientific research. Our company is an enterprise specialized in designing and manufacturing reaction kettles, we can design and manufacture various types of reaction tanks for users.
Product Function Brief
A. Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
B. Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
C. Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc.
D. Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
E. Applicable Field: All the liquid-liquid, liquid-powder reaction industry.
Model selection reference of reaction kettle
Reaction tank | Vertical fractionating column | Horizontal condenser | separator | ||||
Volume (L) | Size of column (mm) | Stuff volume (m³) | Cooling area (m2) | Size (mm) | Cooling area (m2) | Size | Volume (L) |
300 | Φ159x560 | 0.01 | 0.22 | Φ219x1000 | 2.4 | Φ410x450 | 60 |
500 | Φ159x750 | 0.015 | 0.29 | Φ219x1500 | 3.6 | Φ410x450 | 60 |
1000 | Φ194x800 | 0.025 | 0.62 | Φ273x1500 | 5 | Φ410x450 | 60 |
1500 | Φ194x850 | 0.025 | 0.62 | Φ273x2000 | 6.5 | Φ410x450 | 60 |
2000 | Φ219x1000 | 0.035 | 1.0 | Φ325x2000 | 8 | Φ600x600 | 150 |
3000 | Φ273x1100 | 0.058 | 1.2 | Φ325x2000 | 10 | Φ600x600 | 150 |
5000 | Φ273x1200 | 0.065 | 1.5 | Φ377x2000 | 15 | Φ700x750 | 300 |
8000 | Φ325x1500 | 0.065 | 4 | Φ426x2000 | 20 | Φ700x750 | 300 |
10000 | Φ325x1800 | 0.07 | 5 | Φ426x3000 | 30 | Φ700x750 | 300 |
15000 | Φ377x1800 | 0.08 | 6 | Φ450x3000 | 40 | Φ800x750 | 500 |
20000 | Φ377x1800 | 0.08 | 6 | Φ450x3000 | 50 | Φ800x750 | 500 |
25000 | Φ377x2000 | 0.12 | 10 | Φ455x3000 | 60 | Φ800x750 | 500 |
30000 | Φ377x2500 | 0.12 | 10 | Φ475x3000 | 80 | Φ800x750 | 500 |
