Pharmacy Lab Equipment Glass Reactor Pilot Bioreactor

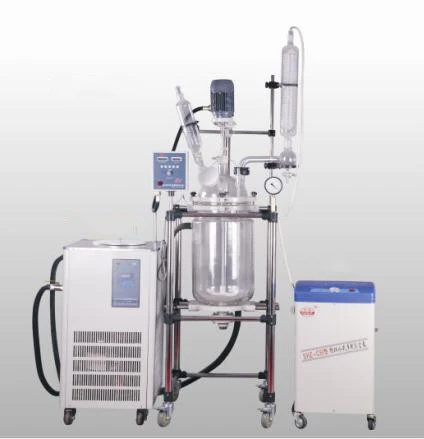

 Glass Reactor pilot Bioreactor is the ideal equipment for mixing, reaction and distillation in chemistry and pharmaceutical industries.
        The range of options ranges from 1 liter to 200 litres,When working with heating / cooling circulators, the temperature inside the vessel can be gently and accurately controlled by thermal fluid circulation inside the jacket. This reaction vessel is rated to operate safely under full vacuum.
        This system can be modified in our own factory quickly in case any customization is needed from us (dimension, motor power, explosion proof, additional glassware, custom port size, etc). Please contact us if any further details are needed.

Application:
Jacketed glass reactor is widely used in the experiment, middle-scale test, and production of chemistry,
 fine chemical engineering, biological pharmacy and synthesis of new materials.
What are the characteristics of jacketed glass reactor?
• GG17 high borosilicate glass, with good chemical and physical properties.
• Reacting Temperature: -80ºC~300ºC.
• Stainless steel frame with pulley.
• Under normal pressure and negative pressure conditions, the vacuum degree can be up to 0.098MPa.
• LCD Speed and temperature display controller.
• The blades are available in PTFE, stainless steel or PTFE- coated stainless steel and can be clamped
   on the stirring shaft.
• Different forms of thermo-fluid ports (glass barb, stainless steel barb, flange, NPT thread, etc.) is optional.
