Pharmaceutical Glass Lined Hydrolysis Synthesis distillation vessel concentrator ReactorGuangdong
Jinzong Machinery Co., Ltd. is a professional manufacturer of chemical, biological & pharmaceutical machinery and equipment more than 20 years .
1.working temperature: 0-150ºC,
temperature abrupt change cold shock: 110ºC,
heat thermal shock 120ºC,
heating and cooling for glass-lined equipment should be slow.
2.voltage withstanding: glass-lined has good insulation. When glass is inspected by 20KV high frequency electric spark, the working surface is not conductive
3.Corrosion resistance: It can resist the corrosion of inorganic acids, organic acids, organic solvents and weak alkali of various concentrations (except hydrofluoric acid, >30% medium concentration fluoride ions and >180ºC concentrated phosphoric acid and strong alkali).
4.Non-sticky: It has a smooth and clean surface, and is not easy to bind materials. It is very suitable for food and easy-to-bind materials.

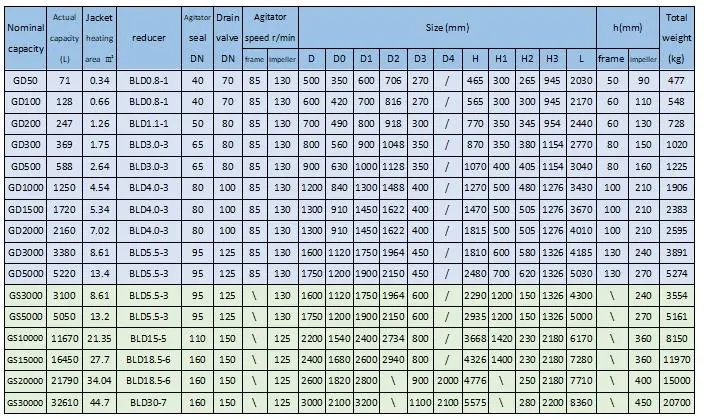

Jinzong glass lined reactor specification:
Jinzong provides a full range of integrated solutions from R & D Lab test, pilot prodution to large scale production for the API industry, and provides pharmaceutical manufacturer with complete upstream and downstream of API process system design, which can meet the process requirements of different production lines of clients, including fermentation, extraction, chemical synthesis and related supporting systems, and assist customers to achieve high standard and high efficiency process flow.
Jinzong provides an intelligent API engineering integration solution for a pharmaceutical industry, covering the turnkey project design, process optimization and automation control implementation. The project reflects the characteristics of Jinzong API technology "originated from process design and service process production", helps customers realize process optimization, improve production efficiency, and strive to build API process pipeline and automatic control demonstration project.
