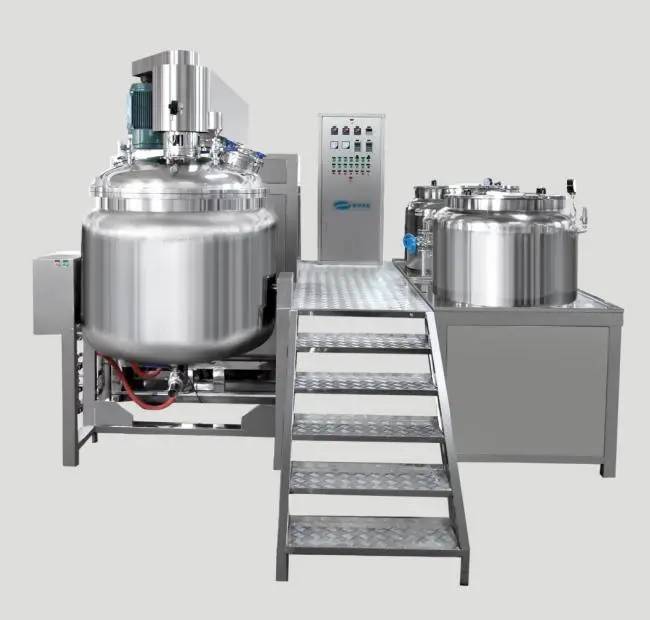

Ointment Gel Manufacturing Plant Mixing Machine
![Ointment Gel Manufacturing Plant Mixing Machine](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/5ec86178e7c9dfe270a504e14b0f6268.jpg)
Gel manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotion, Gel, Tooth Paste & emulsions & homogenization.

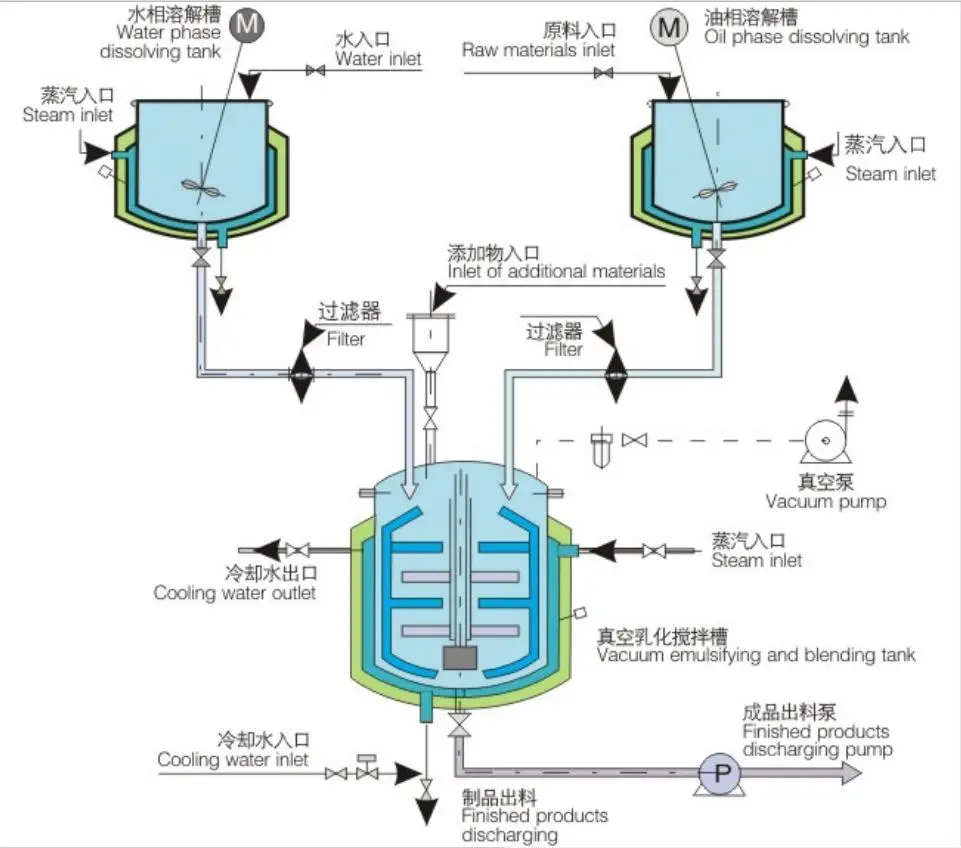

Fully automatic Ointment, Cream, Tooth Paste , Gel manufacturing plant consisting of
![Ointment Gel Manufacturing Plant Mixing Machine](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/10d7121cc4f397d3846e926fa05d4e9c.jpg)
- Pre determined water phase vessel.
- Pre determined oil, wax, petroleum jelly phase vessel.
- Vacuum Homogenizer Mixer vessel.
- Vacuum Pump
- Storage vessel
- Interconnecting pipeline.
- Transfer Pumps (Bump Pump, Lobe Pump & Metering pumps)
- Integrated automatic control panel.
- Working Platform
![Ointment Gel Manufacturing Plant Mixing Machine](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/bd6f7e7966a44696b6b61aa583af39e3.jpg)

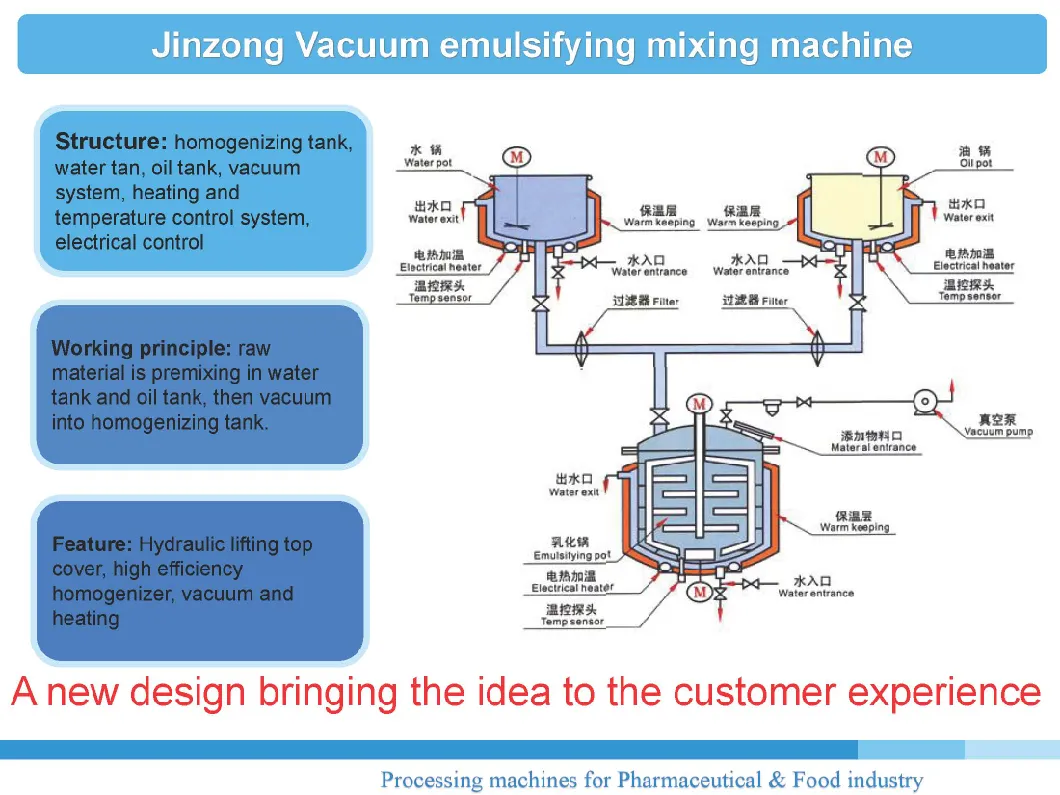

Jinzong vacuum emulsifying mixer is the most popular vacuum emulsifier homogenizer design in Asia and is suitable for making small to medium batches of ointment, cream and emulsions.
![Ointment Cream Gel Mixing Manufacturing Machine Emulsifying Mixer](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/8547a34fbf21f4c8284db201e4a31fab.jpg)
Feature:
Working capacity from 1L to 2000L;
Suitable for cream and emulsions of 10,000~50,000cps viscosity;

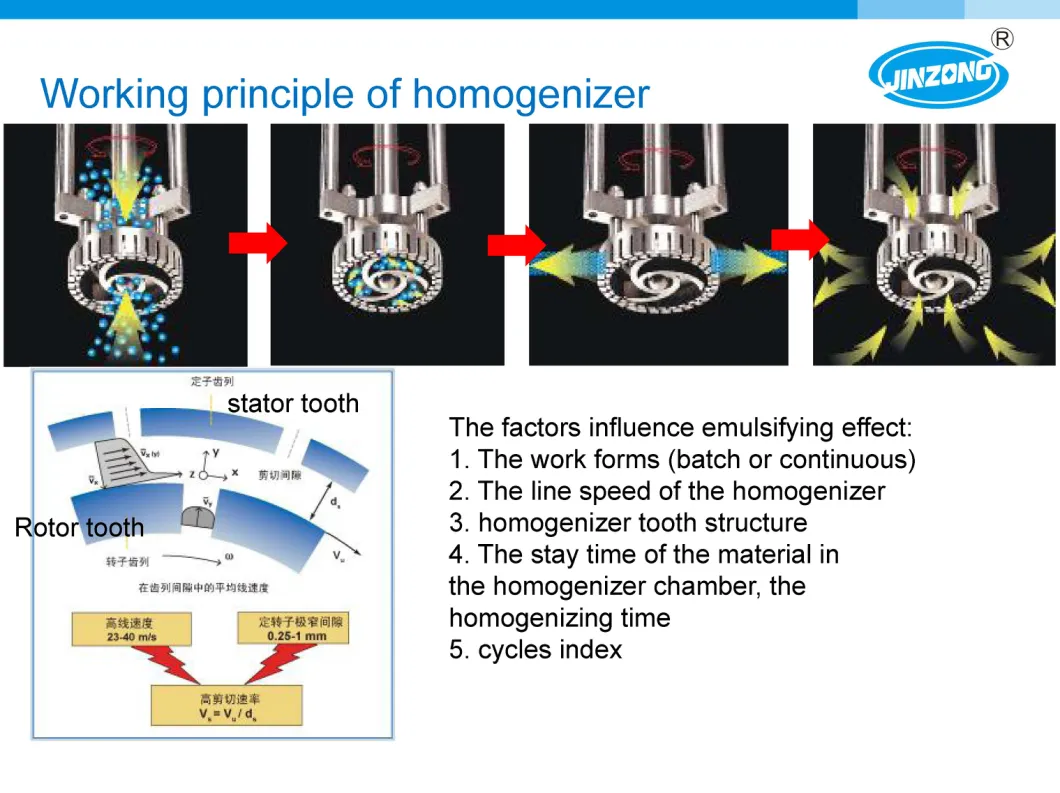

Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;

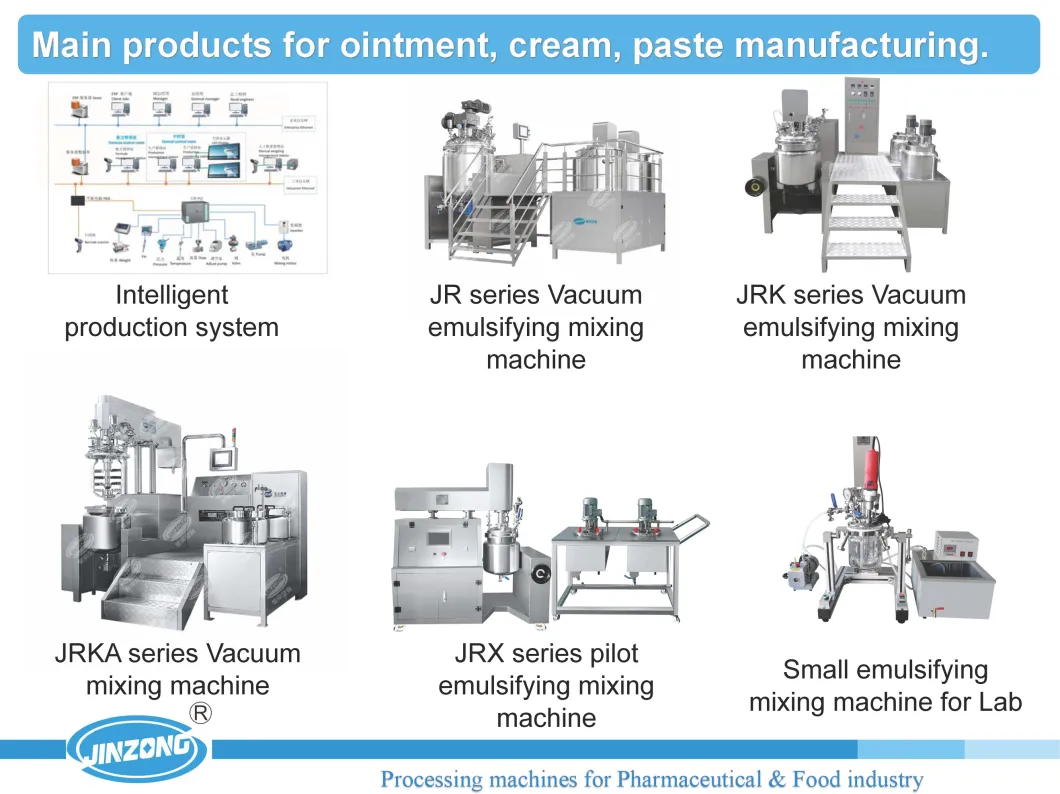

JR series Vacuum emulsifying mixing machine
Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
100 | 130 | 70/100 | 2600*2500*2300 | 5.5 | 1200 |
200 | 260 | 120/190 | 2800*3000*2650 | 7.7 | 1600 |
300 | 375 | 150/260 | 2900*3000*2750 | 10.5 | 1900 |
500 | 620 | 300/460 | 3300*3550*3050 | 15 | 2500 |
1000 | 1250 | 620/900 | 4100*3900*3500 | 20.5 | 4000 |
2000 | 2600 | 1200/1500 | 4500*5200*4000 | 26 | 6000 |
3000 | 3800 | 1500/2400 | 4800*5700*4200 | 33 | 9000 |
5000 | 6500 | 2500/3600 | 5100*6400*4800 | 37 | |
10000 | 12500 | 5000/7000 | | 52 | |
JRK series Vacuum mixing machine Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
50 | 75 | 45/65 | 2700*2300*1950-2650 | 9 | 1600 |
100 | 130 | 70/100 | 2900*2700*2050-2800 | 10 | 1800 |
200 | 260 | 120/190 | 3200*2900*2350-3300 | 13 | 2200 |
300 | 375 | 150/260 | 3350*3000*2550-3650 | 17 | 2500 |
500 | 620 | 300/460 | 3800*3400*2800-4050 | 25 | 3300 |
1000 | 1250 | 620/900 | 4150*4150*3700-5200 | 32 | 5000 |
JRKA series Vacuum mixing machineModel | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
50 | 75 | 45/65 | 2700*2500*2000-2700 | 9 | 1600 |
100 | 130 | 70/100 | 2900*2500*2000-2800 | 10 | 1800 |
200 | 260 | 120/190 | 3200*3000*2400-3350 | 13 | 2200 |
300 | 375 | 150/260 | 3350*3100*2550-3650 | 17 | 2500 |
500 | 620 | 300/460 | 3800*3400*2850-4100 | 25 | 3300 |
1000 | 1250 | 620/900 | 4150*4150*3700-5200 | 32 | 5000 |
JRX series pilot emulsifying mixing machineModel | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Main Tank Dimension(mm) | Dissolving Tank Dimension(mm) | Total Power (kw) |
5L | 1.2 | 3/3 | 1100*400*1250-1600 | 1000x600x800 | 6 |
10L | 13 | 6/10 | 1650*600*1800-2350 | 1200x600x800 | 8 |
20L | 26 | 12/16 | 1650*600*1800-2400 | 1200x600x800 | 10 |
30L | 37 | 18/25 | 1650*600*1800-2400 | 1200x600x800 | 15 |
50L | 60 | 30/40 | 1700*650*1900-2500 | 1200x600x900 | 19 |
![Ointment Cream Gel Mixing Manufacturing Machine Emulsifying Mixer](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/04b2d690f083bba96778a26555b733fc.jpg)
![Ointment Cream Gel Mixing Manufacturing Machine Emulsifying Mixer](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/d8f2f555390ff5d4142bd62de947e909.jpg)
REQUEST FREE QUOTE
Contra mixing system of center agitator and wall scraper;
Outer frame agitator has triangle design for enhanced mixing;
Variable speed for homogenizer and agitators;
Oil hydraulic lifting system for easy cleaning and maintenance;
Double jackets for heating and cooling;
Different jacket designs available for steam and electric heating;
Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit;
Double temperature probes and controllers for electrical heating in main emulsification machine;
Vacuum system to take out the air bubbles during mixing and to transfer the ingredients;
Compressed air to discharge the finished cream;
Tilting system for discharging finished product and easy cleaning;
Multiple safety protection devices for vacuum, hydraulic pump and workers;
All contact parts are made of SS316L and mirror polished;
Spray ball is equipped to connect customer's CIP;
The specifications of the vacuum emulsification equipment comply with cGMP regulations;
Push buttons control panel for easy operation;
Power supply of 380V, 50Hz, 3 Phase;
Application
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;
Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;
Options
Fixed cover with bolts or welding to save budget;
Frame type slow agitator for oil pre-mixer;
Mettler-Toledo load cells;
Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc;
Flow meter automation for feeding liquid oil and water;
Pressure vessel design for different steam pressure;
SIP is available upon request;
Different power supply acceptable;
Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of chemical, biological & pharmaceutical machinery and equipment more than 20 years .
![Ointment Cream Gel Mixing Manufacturing Machine Emulsifying Mixer](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/84d8723b180cc2f633a8fc08dca06ebf.jpg)
![Ointment Cream Gel Mixing Manufacturing Machine Emulsifying Mixer](https://imgbd.weyesimg.com/prod/moving/img/070dc1d2b5d0ccab3c752ebbd9348d4a/b157338d2db51600ca9897190ec2b829/c584daa7a4c35aa85005f9cbf4340c4b.jpg)
Please do contact us should you have any inquiries about our product. We are competent and are your one stop shopping centre for all your machinery needs.
