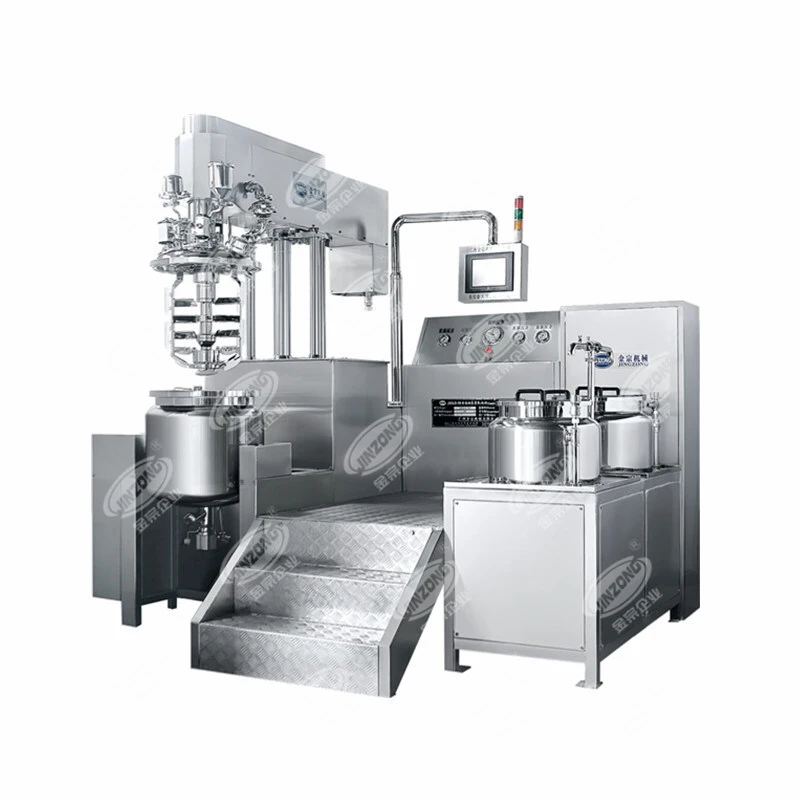

Ointment Cream Gel Mixing Manufacturing Machine Emulsifying Mixer

Ointment cream gel mixing manufacturing machine emulsifying mixer
Jinzong vacuum emulsifying mixer is the most popular vacuum emulsifier homogenizer design in Asia and is suitable for making small to medium batches of ointment, cream and emulsions.

Feature:
Working capacity from 1L to 2000L;
Suitable for cream and emulsions of 10,000~50,000cps viscosity;

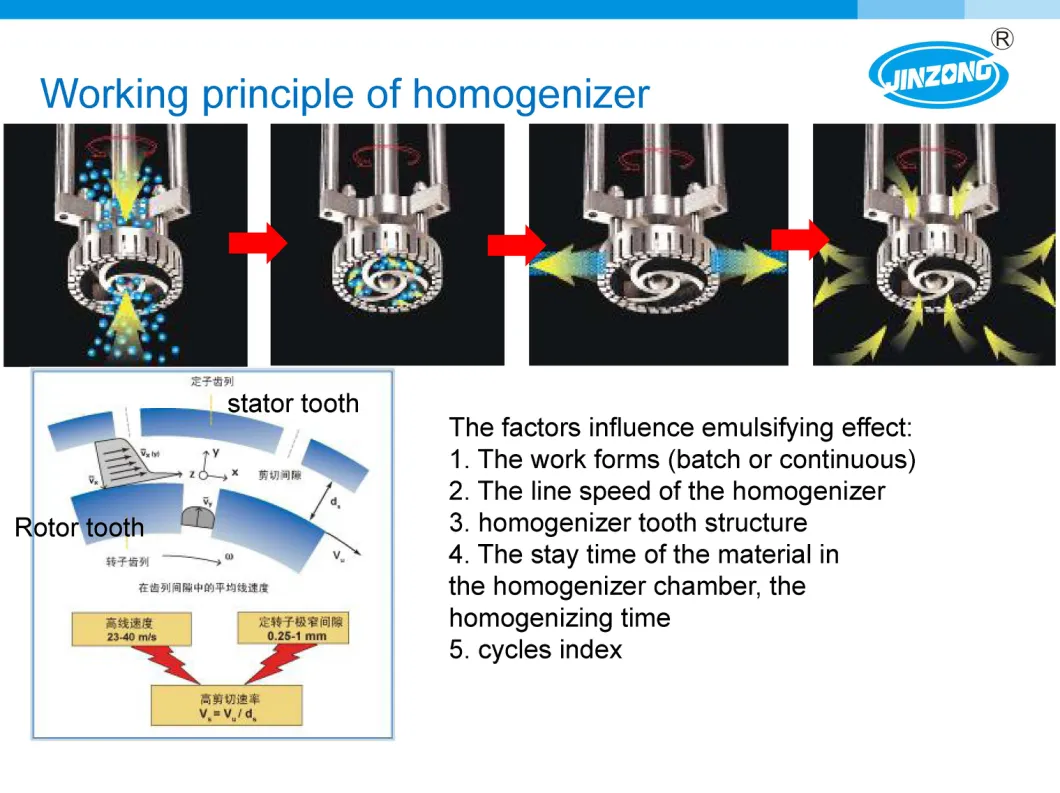

Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;

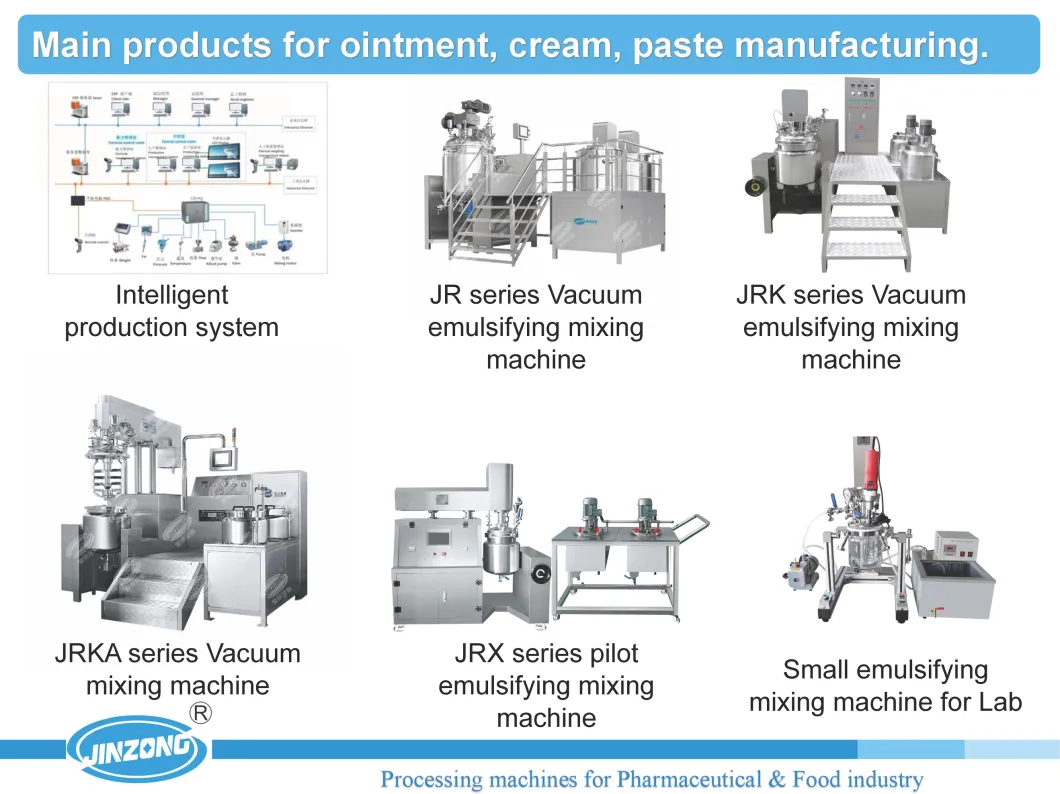

JR series Vacuum emulsifying mixing machine
JRK series Vacuum  mixing machine
JRKA series Vacuum  mixing machine
JRX series pilot  emulsifying mixing machine
REQUEST FREE QUOTE

Contra mixing system of center agitator and wall scraper;
Outer frame agitator has triangle design for enhanced mixing;
Variable speed for homogenizer and agitators;
Oil hydraulic lifting system for easy cleaning and maintenance;
Double jackets for heating and cooling;
Different jacket designs available for steam and electric heating;

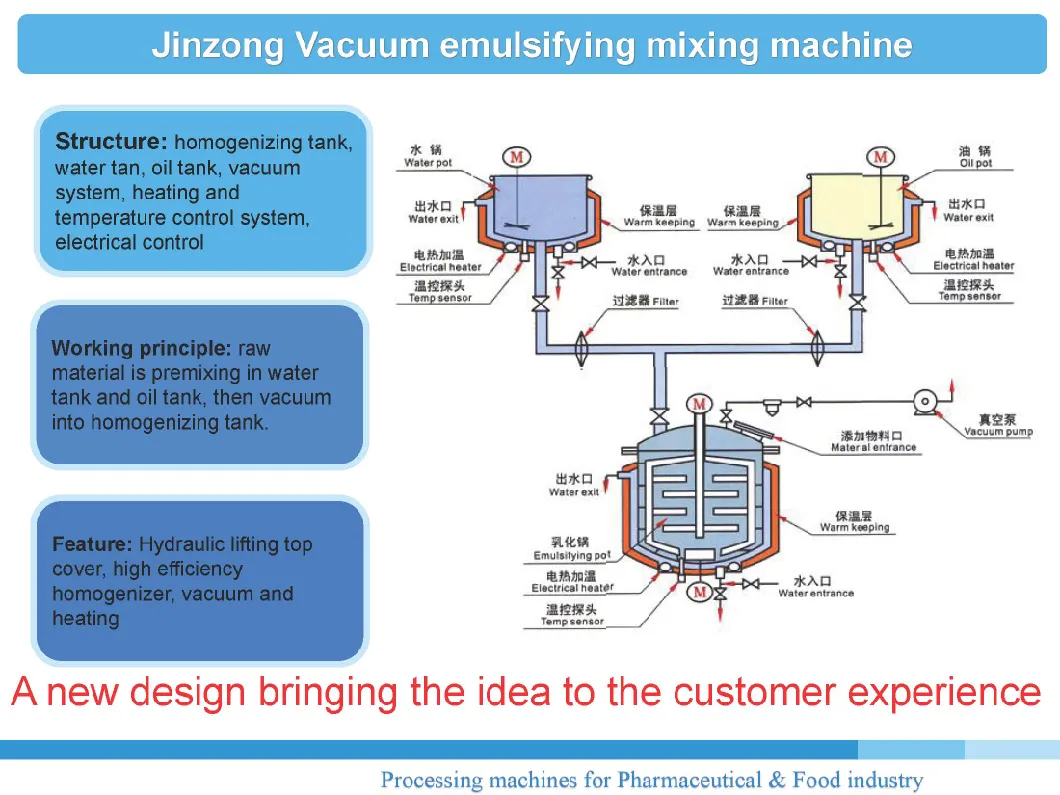

Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit;
Double temperature probes and controllers for electrical heating in main emulsification machine;
Vacuum system to take out the air bubbles during mixing and to transfer the ingredients;
Compressed air to discharge the finished cream;
Tilting system for discharging finished product and easy cleaning;
Multiple safety protection devices for vacuum, hydraulic pump and workers;
All contact parts are made of SS316L and mirror polished;
Spray ball is equipped to connect customer's CIP;
The specifications of the vacuum emulsification equipment comply with cGMP regulations;
Push buttons control panel for easy operation;
Power supply of 380V, 50Hz, 3 Phase;

Application
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;
Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;

Options
Fixed cover with bolts or welding to save budget;
Frame type slow agitator for oil pre-mixer;
Mettler-Toledo load cells;
Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc;
Flow meter automation for feeding liquid oil and water;
Pressure vessel design for different steam pressure;
SIP is available upon request;
Different power supply acceptable;

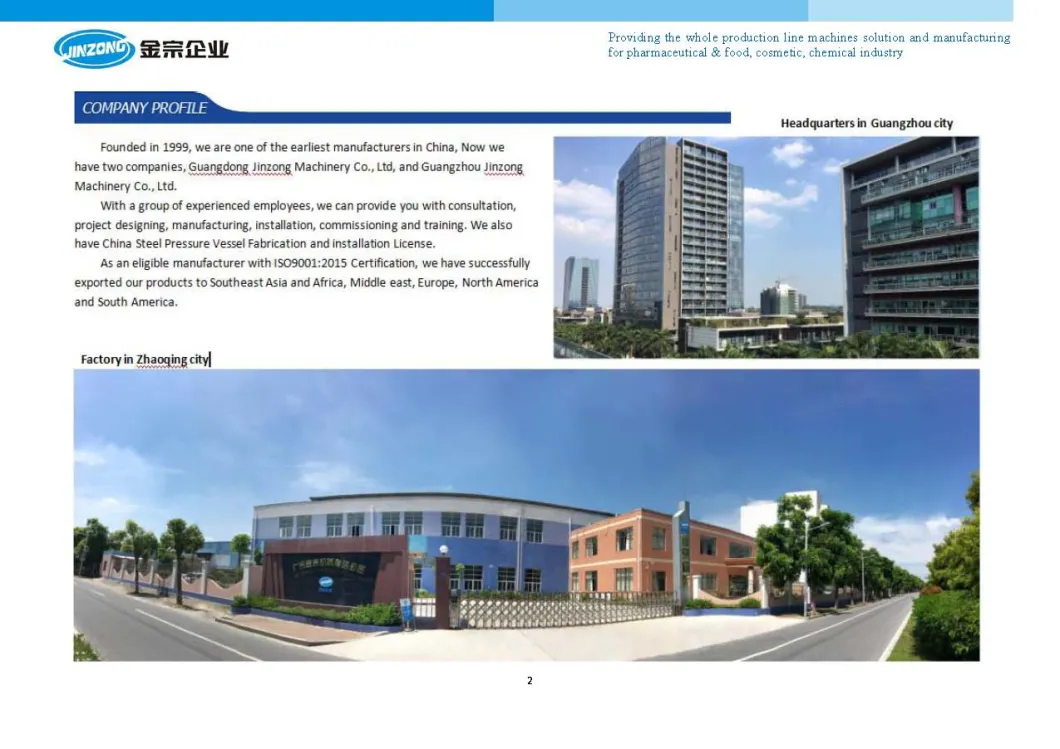

Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of chemical, biological & pharmaceutical machinery and equipment more than 20 years .


Please do contact us should you have any inquiries about our product. We are competent and are your one stop shopping centre for all your machinery needs.
