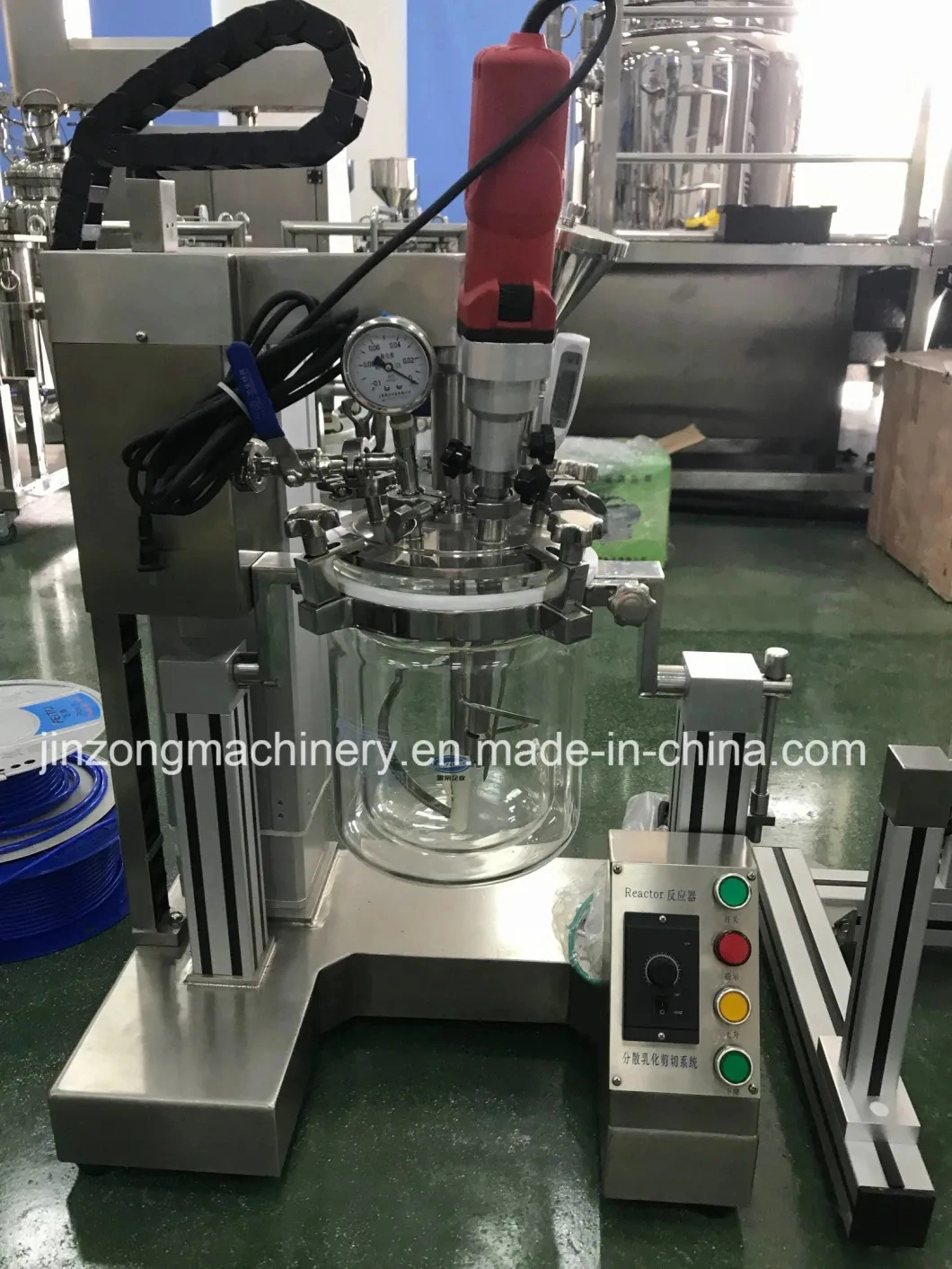

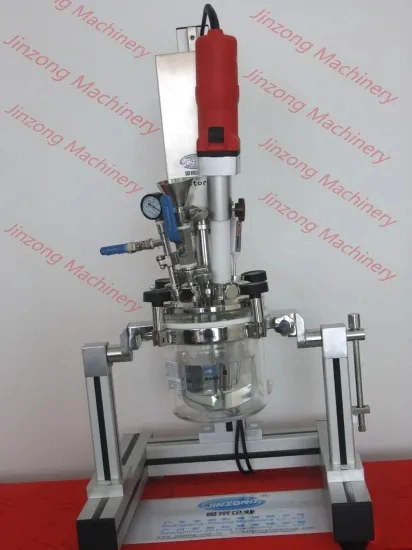

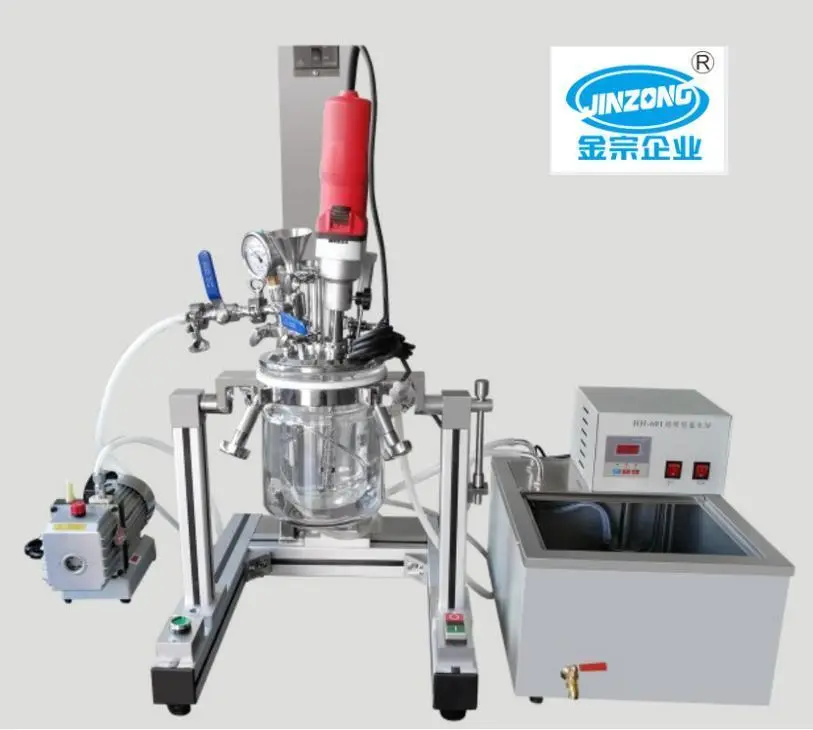

Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine

Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.JZ-MLRCustomizedCustomized
ConditionNewWarranty1 Year
After-sales ServiceOne Year Warranty, Lifelong MaintenanceTrademarkJinzong Machinery
Transport PackagePlywood CaseOriginGuangdong, China (Mainland)
HS Code8479820090
Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Cream Making Machine
Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine
Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine

1. Descriptions:

1. Laboratory vacuum emulsifier,in the vacuum or pressure environment, the process of material dispersion, emulsification, homogenization, mixing and other processes. Equipped with a variety of high-efficiency macro-mixers, high-shear homogenizing, and reliable vacuum sealing systems and temperature control systems, a variety of sensing systems can simulate industrial production in a laboratory environment.
2. Used in the laboratory for dispersion, mixing, emulsification, homogenization, and dissolution. The whole process of stirring, homogenizing, emulsifying, dispersing, mixing, etc. of the material can be observed through a glass kettle under vacuum or pressure conditions.
3. The temperature, pressure, viscosity, etc. of the material can be measured simultaneously. The material can also be heated or cooled.

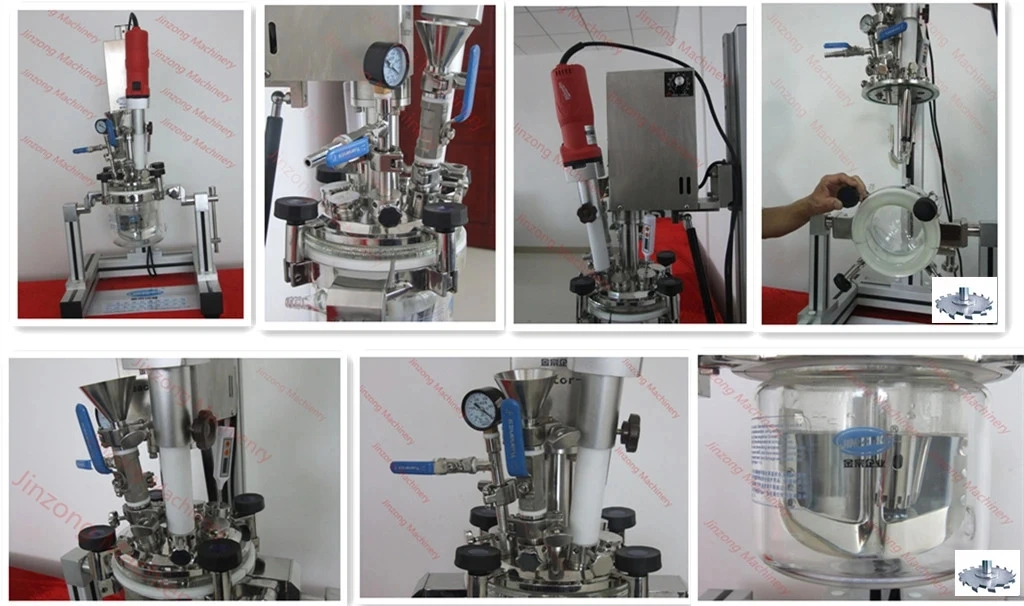

2. Details Images:
Double layers: heating through water or oil.
Glass reactor: Can see the whole processing of mixing, homogenizing, emulsifying of materials.
Motor: Imported from Germany, continuously viable.
Vacuum meter: In the condition of vacuum or pressure, we can get good emulsion product.
Whole bracket adopts SUS304, the contact material parts adopt SUS316L with GMP Standard.
Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine

Key words:
Laboratory small capacity 1L 2L 5L 10L small scale vacuum emulsifying mixer reactor for sample cream lotion production
1L-2L lab vacuum emulsifier small lotion mixer cosmetic small high speed shear homogenier mixing machine
2l/5l Laboratory cosmetic glass reactor equipment digital lab vacuum homogenizer emulsifying mixer
5L Lab Jacked Glass Lined Reactor Mixer Vacuum Homogenizer Emulsifying Mixing Machine
10L Lab Jacketed Glass Reactor Laboratory Mixer Disperser Blender Agitator for Price

Laboratory Small Rubber Plastic Two Roll Heated Open Mill Mixer Machine
High Shear Cosmetic vacuum lab transparent emulsifier homogenizer mixer tank with digital
Small scale capacity vacuum emulsifying mixer, lab vacuum reactor glass material
Chemical agitator's liquid laundry detergent production mixer




3. Technical Parameter:
Stirring Power:120 W
Voltage:220V,50 Hz
Rotation speed:10~200 rmp
Medium viscosity range:0~15,000m Pas
Vertical stroke:210 mm
Min. stirred volume:400 ml
Min. emulsify volume:500 ml
Max. working volume:1000 ml
Max. permissible continuous operating temperature:< 100ºC
Vacuum:-0.08 Mpa
Contact with the material parts:SS316L
Elevation ways:pneumatic elevation
Discharging:manual rotation of tanks
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

4. Advantage:
* Simple structure
 * Small volume
 * Low noise
 * Smooth operation plane
 * Long service life
 * Easy to operate, clean, disassembling and maintenance
Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine


5. Packing:
In strong wooden case(s), suitable for long-distance ocean/parcel post/air freight or land transportation and to change of climate, well protected against moisture and shocks.

6. Company Infomation:
Guangzhou Jinzong Machinery(as Jinzong Machinery) is a technology innovation enterprise integrating design, manufacturing and system integration of processing machines for chemical, cosmetic, food, pharmaceutical industry,which was established in 1999,  covers an area of 18,000 square meters in Zhaoqing city. Jinzong Machinery specializes in research, development and auxiliary service of chemical production equipment for resin, paint, ink, adhesive and etc.
Combining these years of chemical process knowledge and engineered system design experience, Jinzong Machinery provides a proven European technology according to international codes and standards.
By consistently keeping to professional operation concept, Jinzong Machinery will continue to provide you with service quality of a higher level. We are elaborately carving and presenting the best in the aspects of product design, manufacturing and product quality
Multifunctional Lab Vacuum Emulsifying Mixer Cosmetic Gel Cream Making Machine
7. Product lines range from:

1> Chemical Machinery:  reactor, mixing equipment,separation equipment, storage tank etc.
2> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
3> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
