Manufacturer of Pharmaceutical Glass Lined Reactor Enamel reaction tank
We provide a wide range of glass line vessel equipment, which is mainly used for the production of highly refined and pure products such as fine chemicals, pesticides, vitamins and pharmaceuticals. This system is highly corrosion resistant and their modular construction allows the changes to be made in the overhead structure depending on the process requirements.

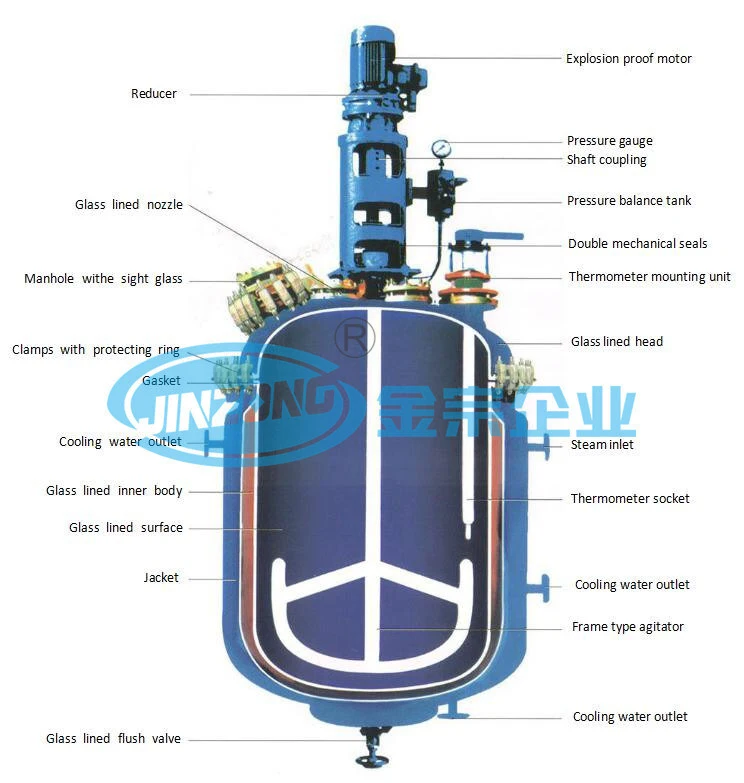

Jinzong glass lined reactor structure
The reactor is mainly composed of tank body, insulation material and accessories. The tank body includes inner cylinder, outer cylinder, jacket and supporting foot, etc. Rock wool filling is used as insulation layer between inner cylinder and outer cylinder, jacket form is integrate jacket.
The accessories mainly include sanitary manhole, mirror, light, material and liquid inlet and outlet pipe, thermometer, pressure gauge, etc.
Mechanical stirring: The stirring motor is installed on the top of the tank, and the stirring shaft is composed of the upper half shaft and the lower half shaft, the upper half shaft and the tank body are sealed by filler and have good performance; the lower half shaft is connected with the upper half shaft through flange, and the paddle is welded on the lower stirring shaft, frame type paddle.
Jinzong glass lined reactor specification:
GD series GS series
Glass-lined reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of pharmaceutical, chemical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research.
We specialized in manufacturing pressure vessels, reactors. Our company is a turnkey supplier that offers friendly service. We put accountability at a high priority and we will work with you every step of the way to ensure your success. We strive to promote the growth of your business by supplying you with the best products. We have a successful background of manufacturing amazing pressure vessels.
