Macro lab pilot Vacuum ointment Homogenizer Cream Mixer ManufacturerFeature:
Working capacity from 1L to 2000L;
Suitable for cream and emulsions of 10,000~50,000cps viscosity;
Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;

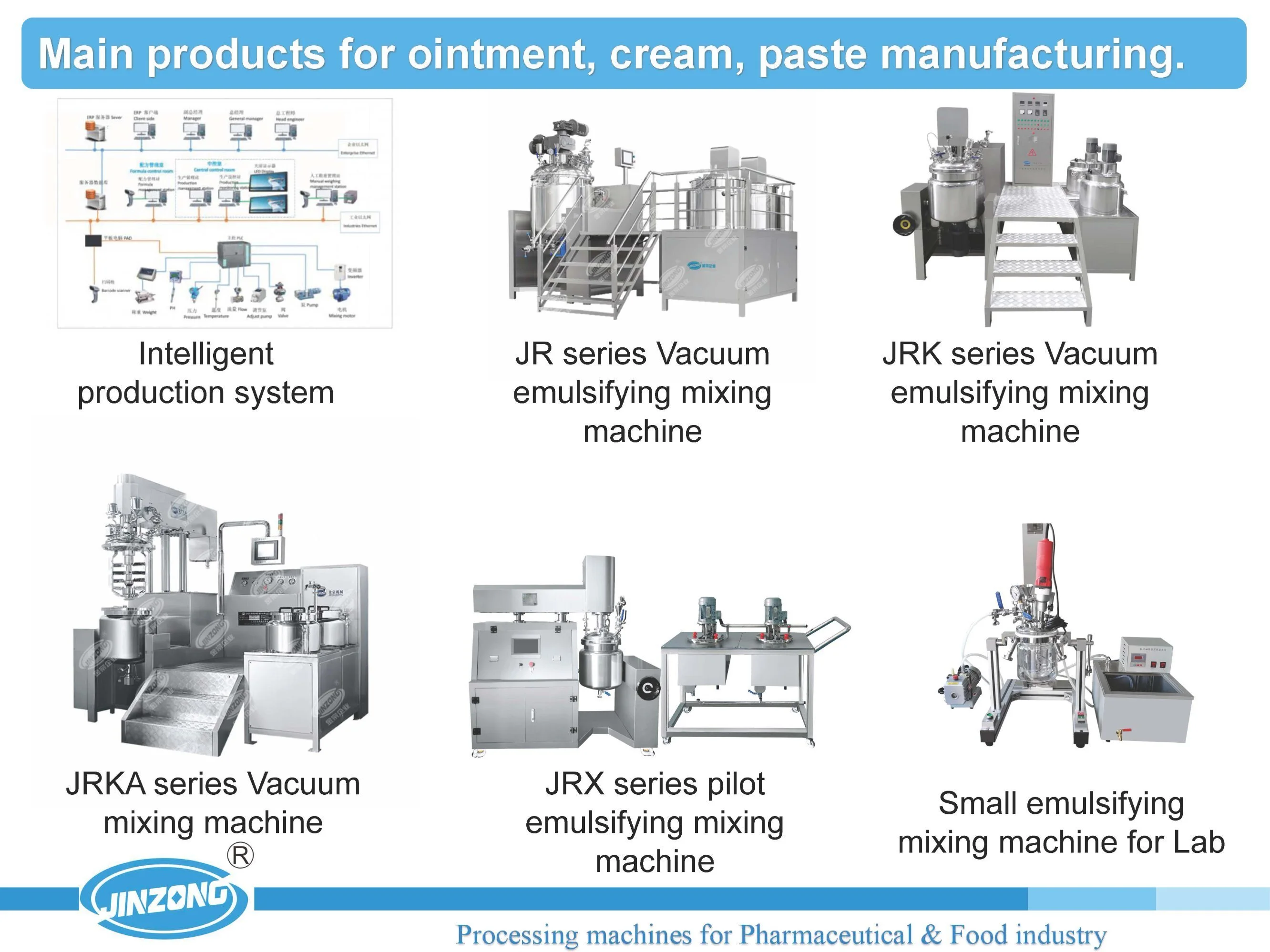

JR series Vacuum emulsifying mixing machine
Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
100 | 130 | 70/100 | 2600*2500*2300 | 5.5 | 1200 |
200 | 260 | 120/190 | 2800*3000*2650 | 7.7 | 1600 |
300 | 375 | 150/260 | 2900*3000*2750 | 10.5 | 1900 |
500 | 620 | 300/460 | 3300*3550*3050 | 15 | 2500 |
1000 | 1250 | 620/900 | 4100*3900*3500 | 20.5 | 4000 |
2000 | 2600 | 1200/1500 | 4500*5200*4000 | 26 | 6000 |
3000 | 3800 | 1500/2400 | 4800*5700*4200 | 33 | 9000 |
5000 | 6500 | 2500/3600 | 5100*6400*4800 | 37 | |
10000 | 12500 | 5000/7000 | | 52 | |
JRK series Vacuum mixing machine
Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
50 | 75 | 45/65 | 2700*2300*1950-2650 | 9 | 1600 |
100 | 130 | 70/100 | 2900*2700*2050-2800 | 10 | 1800 |
200 | 260 | 120/190 | 3200*2900*2350-3300 | 13 | 2200 |
300 | 375 | 150/260 | 3350*3000*2550-3650 | 17 | 2500 |
500 | 620 | 300/460 | 3800*3400*2800-4050 | 25 | 3300 |
1000 | 1250 | 620/900 | 4150*4150*3700-5200 | 32 | 5000 |
JRKA series Vacuum mixing machine
Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
50 | 75 | 45/65 | 2700*2500*2000-2700 | 9 | 1600 |
100 | 130 | 70/100 | 2900*2500*2000-2800 | 10 | 1800 |
200 | 260 | 120/190 | 3200*3000*2400-3350 | 13 | 2200 |
300 | 375 | 150/260 | 3350*3100*2550-3650 | 17 | 2500 |
500 | 620 | 300/460 | 3800*3400*2850-4100 | 25 | 3300 |
1000 | 1250 | 620/900 | 4150*4150*3700-5200 | 32 | 5000 |
JRX series pilot emulsifying mixing machine
Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Main Tank Dimension(mm) | Dissolving Tank Dimension(mm) | Total Power (kw) |
5L | 1.2 | 3/3 | 1100*400*1250-1600 | 1000x600x800 | 6 |
10L | 13 | 6/10 | 1650*600*1800-2350 | 1200x600x800 | 8 |
20L | 26 | 12/16 | 1650*600*1800-2400 | 1200x600x800 | 10 |
30L | 37 | 18/25 | 1650*600*1800-2400 | 1200x600x800 | 15 |
50L | 60 | 30/40 | 1700*650*1900-2500 | 1200x600x900 | 19 |
Vacuum homogeneous emulsifier combination - there are two types of combination to choose, single emulsifier and oil-water pot emulsifier. Both can be chosen different power and mixing form combination to obtain the required performance.
High shear vacuum homogenizer mixing form - the main pot is frame mixing with homogenizing head, oil-water pot has anchor mixing, dispersing plate and pulp-blade mixing, etc.
PLC system - PLC control system can not only control the equipment, but also connect with remote PC with automatic processing program to optimize production time and save power.
High shear vacuum homogenizing emulsifier temperature measurement - can be measured from the wall of the container, can also be located in the mixing barrel of materials, with the rotation movement.
It is a emulsifying equipment for producing high-quality cream products in the pharmaceutical and food industries.
High shear vacuum homogenizing emulsifier lifting mode - double column hydraulic lifting, single column hydraulic lifting, electric screw lifting.
Compared with other types of emulsifier, it has many outstanding characteristics.

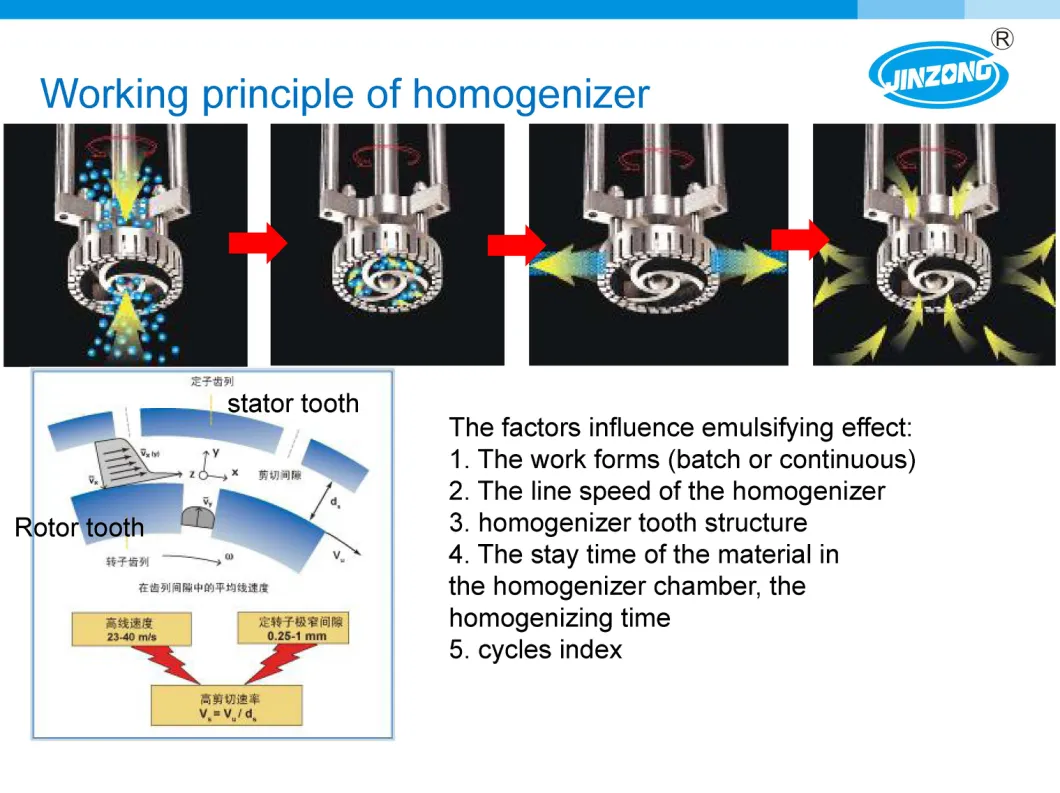

Homogenizing structure with Germany technology, combined type high-efficiency homogeneous emulsifier has six shear teeth with special structure. The shear times are many. The instantaneous local pressure can reach more than 100 Mpa, and the homogeneous emulsification effect can be achieved dozens of times by one pass of materials.
Upper and lower homogeneous emulsifier: Emulsifier can rise up and down freely at the bottom of the pot through hydraulic system. It can work in different states. It can be widely applied for many materials.
Precision kinematic phase structure and cooling system: high efficiency, low power loss, homogenizer can work continuously for a long time, suitable for some special process requirements.
Various feeding modes: top and bottom feeding separately, or both top and bottom feeding at the same time, especially suitable for the process that the late additives must be completely homogeneous emulsification requirements.
Unique bottom one-button powder absorption function: As long as a switch is turned on, the system can automatically inhale powder and other materials from the bottom and complete homogeneous emulsification.
The omni-directional multi-effect turbulent mixing system without dead angle, can effectively improve mixing speed and mixing effect.
No dead angle in production and less residue in discharging material: Like the upper homogenizing emulsifier, it is better than other types of emulsifier.
Automatic discharging function: remote pipeline transportation function can be realized without adding other equipment, effectively avoiding secondary pollution of rabbit manufactured products;
Circulating cleaning function: more convenient than any other type of emulsifier cleaning.
Emulsifying pot cover can be lifted to ensure easy maintenance and cleaning.
Hydraulic mechanism is used in all lifting systems to ensure smooth, accurate and safe operation.
Processing parameter recording function: The system can automatically record the main process parameters. Technical managers can check the historical work records at any time, meet the requirements of GMP and ISO system for process quality recording, and ensure product quality.
Application
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;

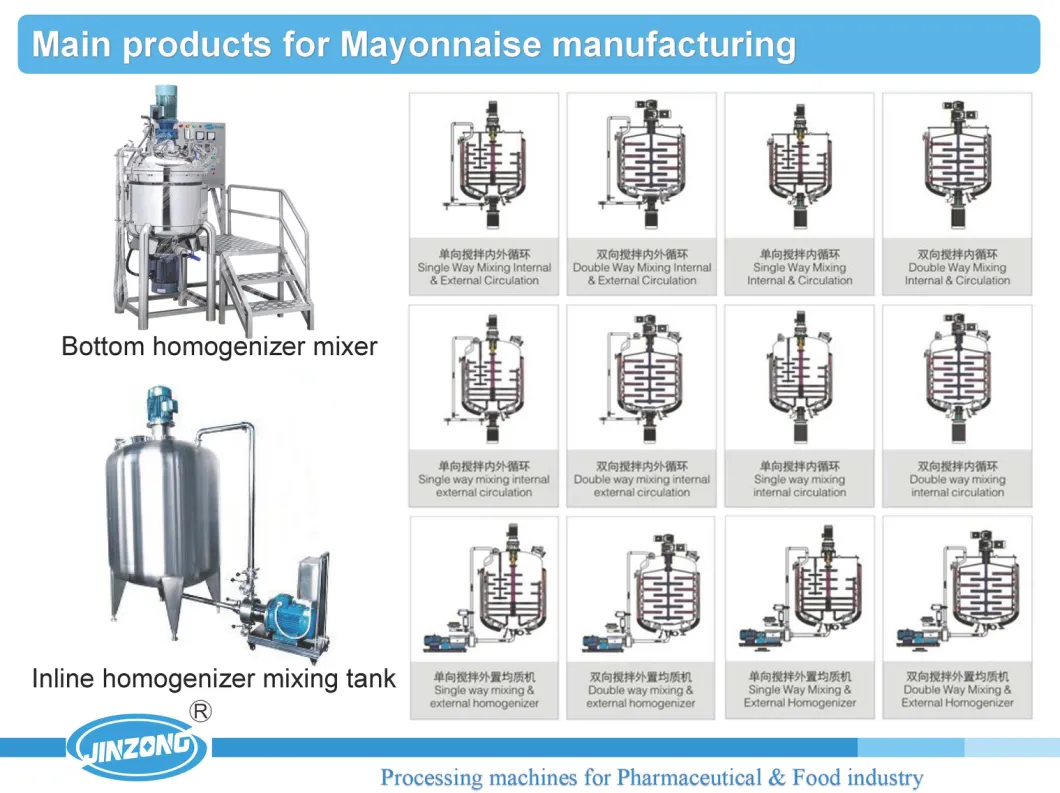

Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;
Jinzong
vacuum emulsifying mixer is the most popular vacuum emulsifier homogenizer design in Asia and is suitable for making small to medium batches of ointment, cream and emulsions.
