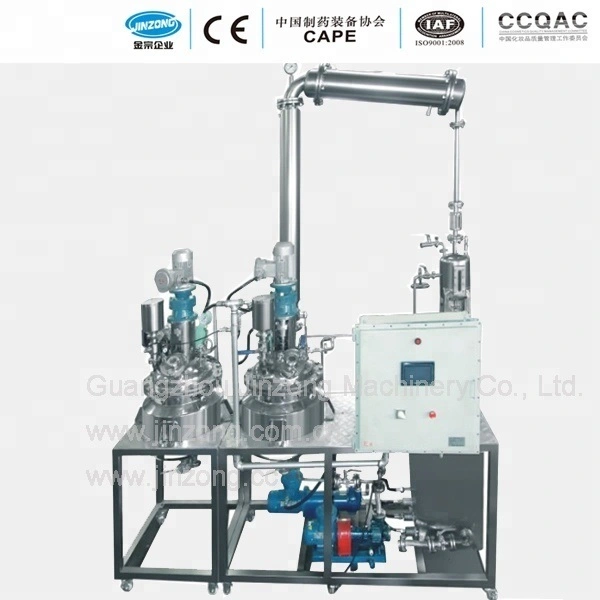

Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant 1
Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant 2
Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant 3
Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant 1
Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant 2
Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant 3

Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant

    oops...!

    no product data.

    Go to homepage
    CustomizedCustomizedConditionNew
    Warranty1 YearTrademarkJINZONG
    Transport PackagePlywood CaseSpecificationSUS304, 316L
    OriginGuangdongHS Code8419899090
    Lab Stainless Steel Reactor Pilot Reactor Small scale Synthesis Reaction plant
    Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant
    Pharmaceutical Pilot Reactor
    1.Capacity 5L-200L.
    2.Including jacketed reactor,condenser,storage tank,conduction oil preheating tank,hot oil pump,pipelines,valves,temperature gauge PT100,pressure gauge,platform etc.
    3.Made of SUS316L and SUS304.
    4.Heating and cooling by jacket or heated by jacket and cooling by inner pipe coil.

    Manufacturing different type pilot equipment according to customer's requirement:
    Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant


    Automatic control system.
    Jinzong Machinery has in-house capabilities to both upgrade existing synthetic resin and polymer emulsion manufacturing plants and design new ones with state of the art process control systems.
    Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant


    JZ series complete reactor is made of stainless steel, all parts are polished mirrorlike and manufactured meticulously. Equipped with all necessary functions, superior quality.
    It is widely used for reaction, evaporation, concentration, synthesization, polymerization, mineratization, etc. in pharmaceutical industry, chemical industry, dye, pesticide, organic synthesis, petroleum, food additives, industry of national defense and scientific research.
    Lab Stainless Steel Reactor Pilot Reactor Small Scale Synthesis Reaction Plant




    Model selection reference of reaction kettle

    Composition

    Instructions

    Specification (L)

    5-200

    Design Pressure (Mpa)

    Atmospheric Pressure or under pressure

    Material

    Carbon steel, stainless steel, enamel, graphite

    Heating Forms

    Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.

    Cooling Forms

    Refrigeration medium in the internal pipe jacket

    Blending Power

    Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.

    Stirring blade Forms

    Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type

    Seal

    Mechanical seal or stuff packing seal

    Inner Surface Treatment

    Polished or no polished

    Discharge Valve

    Flanged ball valve, open downward discharge valve and others

    Technological Pipe Hole

    Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, m


    Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.


    mechanical equipment from Guangdong Jinzong Machinery Co., Ltd. has passed a series of international quality assurance system and product safety certification. The product has high sensitivity to quickly respond to users' operation. Guangdong Jinzong Machinery Co., Ltd. has a good sense of customer service. The product has high sensitivity to quickly respond to users' operation.
