Jinzong Machinery Pilot/Small/Laboratory Reaction Mixer Plant for Pharmaceutical
| Model NO. | JZ | Customized | Customized |
| Condition | New | Warranty | 1 Year |
| Description | Stainless Steel Reactor for Small Scale Reaction | Application | Reaction, Mixing, Heating, Concentration, Solvente |
| Trademark | JINZONG | Transport Package | Plywood Case |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8419899090 |

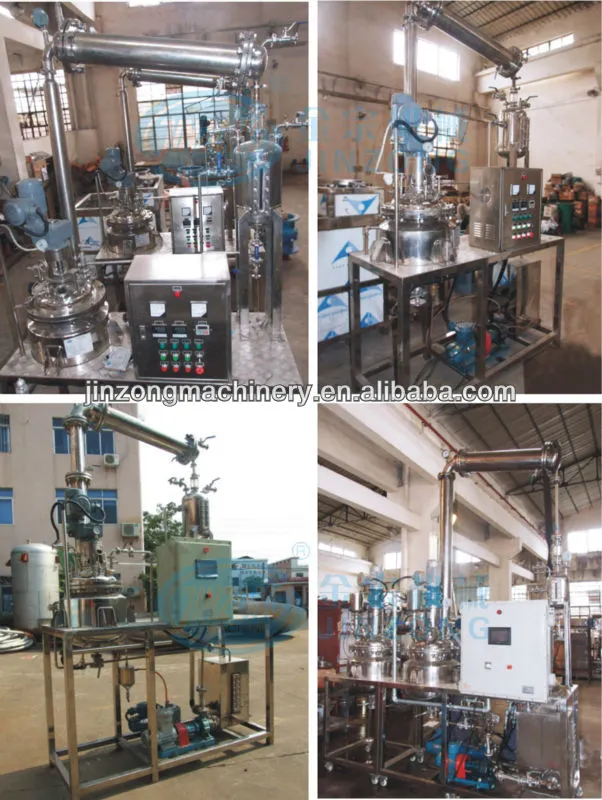

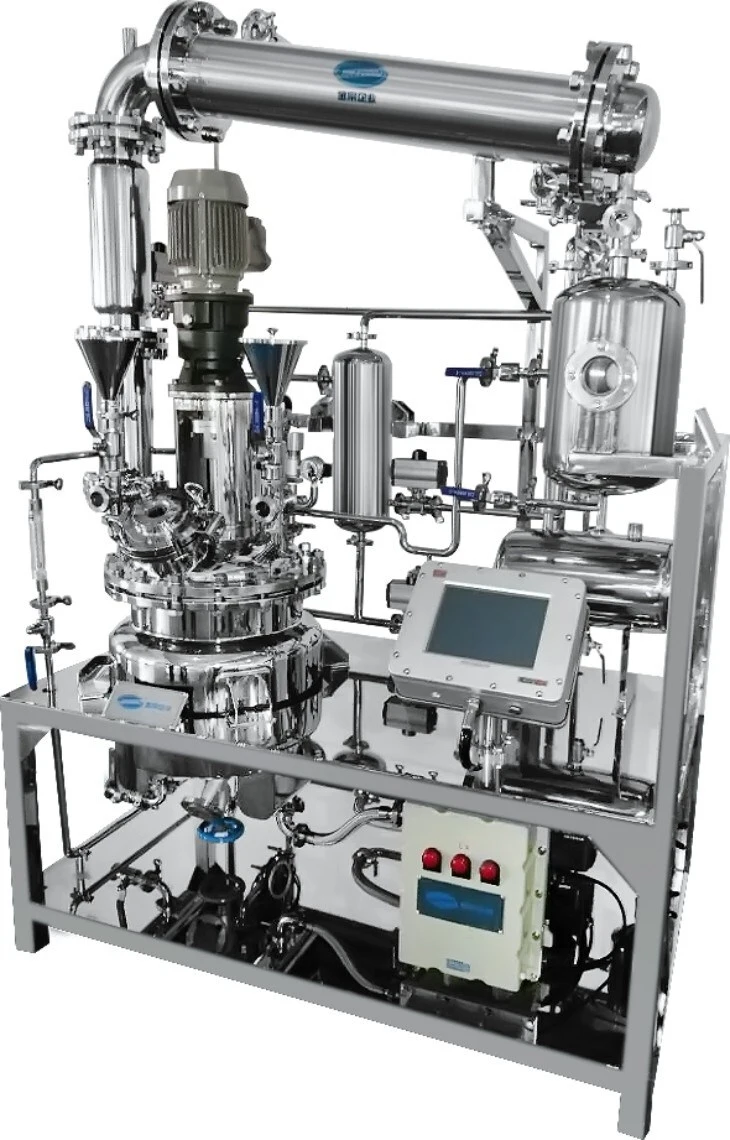

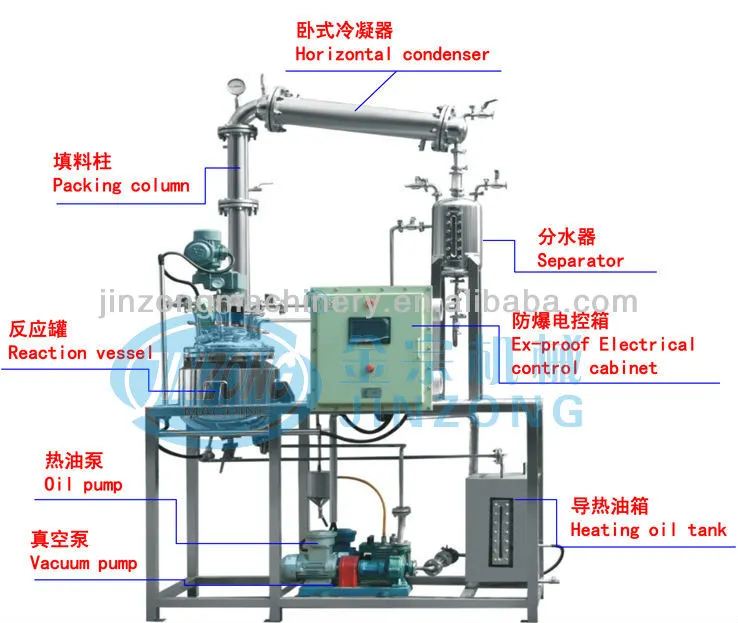

This laboratory reactor is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform
JZ series complete reactor is made of stainless steel, all parts are polished mirrorlike and manufactured meticulously. Equipped with all necessary functions, superior quality.
It is widely used for reaction, evaporation, concentration, synthesization, polymerization, mineratization, etc. in pharmaceutical industry, chemical industry, dye, pesticide, organic synthesis, petroleum, food additives, industry of national defense and scientific research.
Our company is an enterprise specialized in designing and manufacturing reaction kettles, we can design and manufacture various types of reaction plants for users.
Model selection reference of reaction kettle
Composition | Instructions |
Specification (L) | 5-200 |
Design Pressure (Mpa) | Atmospheric Pressure or under pressure |
Material | Carbon steel, stainless steel, enamel, graphite |
Heating Forms | Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc. |
Cooling Forms | Refrigeration medium in the internal pipe jacket |
Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
Stirring blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type |
Seal | Mechanical seal or stuff packing seal |
Inner Surface Treatment | Polished or no polished |
Discharge Valve | Flanged ball valve, open downward discharge valve and others |
Technological Pipe Hole | Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, m |
