Jacketed Reaction Stainless Steel Reactor Vessel for Pharmaceutical Processing
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Warranty | 1 Year | Trademark | JINZONG |
| Transport Package | Plywood Case | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |
Jacketed Reaction Stainless Steel Reactor Vessel for pharmaceutical processing
Reaction vessel is a container with an agitator for mixing, dispersing and reaction of different materials in chemical production. It is widely used in chemical, food, pharmaceuticals, resin, coating, paint, printing ink industry.
.
Stainless steel reaction tank is the key equipment for API production process. Our company can provide users various reactors with engineering design, equipment model selection guide, equipment machining, equipment installation and turn-key project.
Features:
capacity: 50L-50000L, customized
Weight: customized
Cerification: CE, ISO9001
Volume: customized
Place of Origin: Guangdong, China
Brand Name: Jinzong
Material
stainless steel, high temperature stainless steel, strong acid and alkali resistant stainless steel,

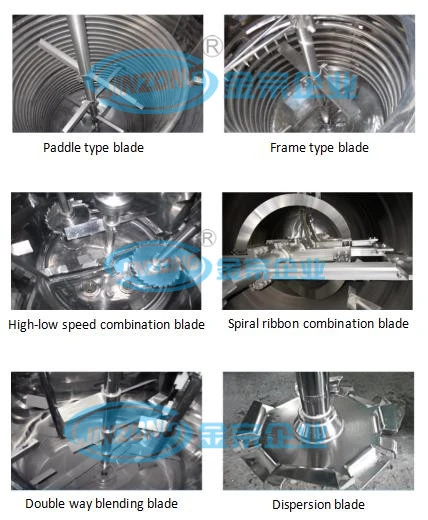

Stirring Type
Slurry type, anchor type, frame type, push type and single (double) spiral type, and other types of blades can be designed and manufactured according to customer requirements.
Model selection reference of reaction tank
production details:
good quality stainless steel material with excellent polished treatment
Siemens agitator motor

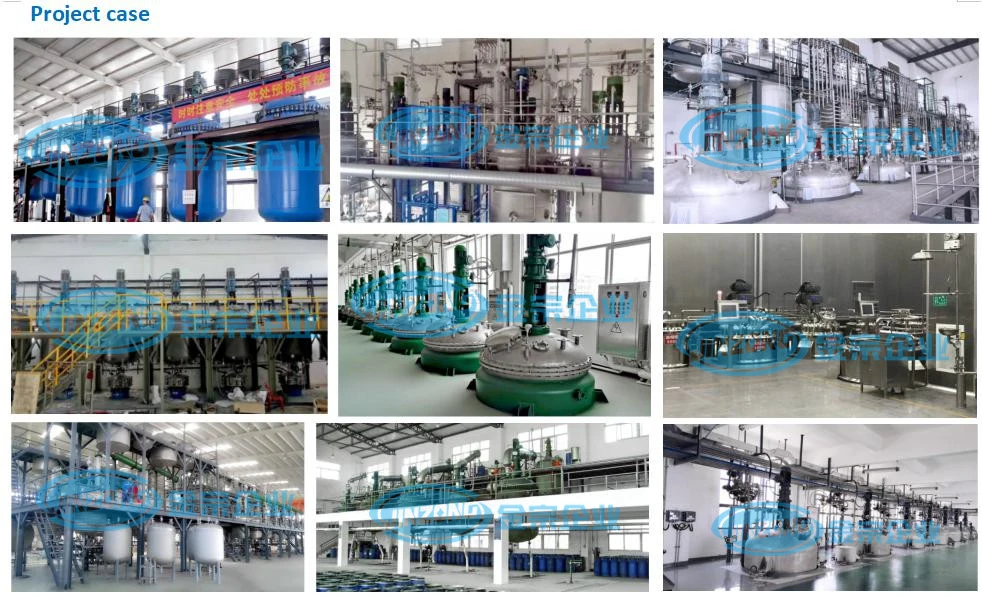

Project case
We take customer satisfaction very seriously here at JINZONG. Our teams go out of our way to provide you amazing stainless steel tanks that are conducive to your work zones. Our innovated solutions are capable of handling demanding projects. It is our objective to meet all of your needs. Our cost effective products are unsurpassed. If you have any questions please feel free to contact us today!
Reaction vessel is a container with an agitator for mixing, dispersing and reaction of different materials in chemical production. It is widely used in chemical, food, pharmaceuticals, resin, coating, paint, printing ink industry.
.
Stainless steel reaction tank is the key equipment for API production process. Our company can provide users various reactors with engineering design, equipment model selection guide, equipment machining, equipment installation and turn-key project.
Features:
capacity: 50L-50000L, customized
Weight: customized
Cerification: CE, ISO9001
Volume: customized
Place of Origin: Guangdong, China
Brand Name: Jinzong
Material
stainless steel, high temperature stainless steel, strong acid and alkali resistant stainless steel,
Stirring Type
Slurry type, anchor type, frame type, push type and single (double) spiral type, and other types of blades can be designed and manufactured according to customer requirements.
Model selection reference of reaction tank
| Composition | Instructions |
| Specification (L) | 50-50000 |
| Design Pressure (Mpa) | Atmospheric Pressure or under pressure |
| Material | Carbon steel, stainless steel, enamel, graphite |
| Heating Forms | Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc. |
| Cooling Forms | Refrigeration medium in the internal pipe jacket |
| Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
| Stirring blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type |
| Seal | Mechanical seal or stuff packing seal |
| Inner Surface Treatment | Polished or no polished |
| Discharge Valve | Flanged ball valve, open downward discharge valve and others |
| Technological Pipe Hole | Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2, |
production details:

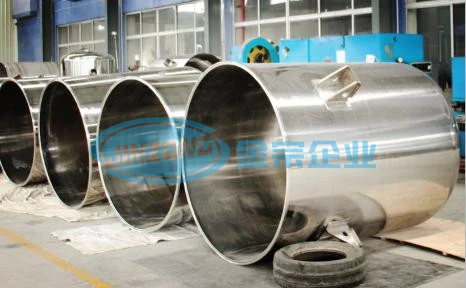

good quality stainless steel material with excellent polished treatment
Siemens agitator motor
Project case
We take customer satisfaction very seriously here at JINZONG. Our teams go out of our way to provide you amazing stainless steel tanks that are conducive to your work zones. Our innovated solutions are capable of handling demanding projects. It is our objective to meet all of your needs. Our cost effective products are unsurpassed. If you have any questions please feel free to contact us today!
The product contributes a lot of benefits for people in the long run. People will find it has a short investment recovery period by cutting a huge amount of electricity demand. The product requires less training than other same types.
Using this product can have a positive effect on business. It allows shopkeepers to have better control over their business operations. The product requires less training than other same types.
