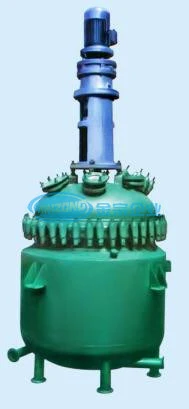

Intermediate Manufacturing Machine 5-8000L Glass Lined Reactor Manufacturer

Glass-lined reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of pharmaceutical, chemical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research.




Corrosion resistance: It resists all kinds of thickness of mediums like inorganic acid, organic acid, organic solvent and weak base etc. But it isn't suitable for strong base, hydrofluoric acid, fluorion medium, phosphoric acid whose temperature is over 180 degree and thickness is over 30% etc.

Product Application
The whole system of glass-lined pilot reactor consists of micro glass-lined reaction kettle, tower section, chip condenser, storage tank and glass-lined pipeline, and equipped with the corresponding external cycle oil bath heating temperature control system and mixing frequency control system. To complete the reaction, reflux, distillation and other processes. It's the ideal pilot and production equipment for bio-pharmaceutical, fine chemicals & new materials.




Model selection reference of reaction kettle
Composition:     Instruction
Specification :   50L-50T
Design Pressure Mpa:  Atmospheric pressure or under pressure
Blending Power:  Model selection is made according to material viscosity, liquid-solid ration, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil
Stirring Blade Forms: Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
Seal: Mechanical seal or stuff packing seal
Inner Surface Treatment: Polished or no polished
Discharge Valve: Flanged ball valve, open downward discharge valve and others
Technological Pipe Hole: Manhole, sight glass, distillation mouth, imported materials, pressure gauge port,
