Inactivation Tank Sterile Storage Tank Biological Wastewater Inactivation System

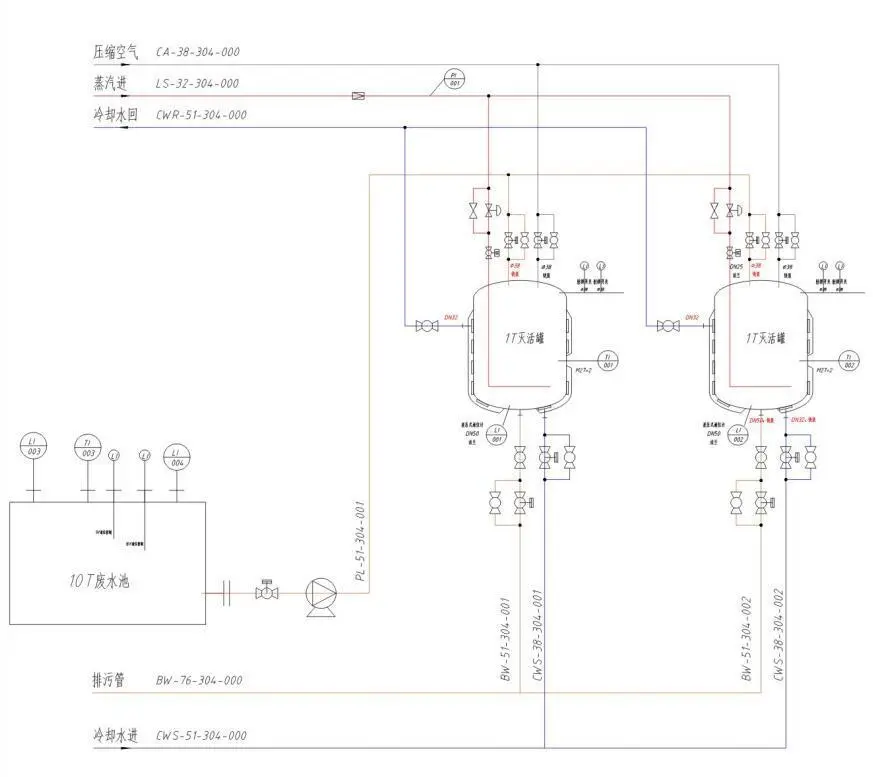

A biological wastewater inactivation system includes a temporary storage tank and at least two inactivation tanks. Water inlet and sewage outlet are set on the temporary storage tank and inactivation tank. Water delivery pipe is set on the temporary storage tank to connect the water inlet of each inactivation tank. Air inlet pipe, exhaust pipe, cleaning pipe and cleaning device with internal cleaning pipe are set on the temporary storage tank and inactivation tank. Steam generation device is connected to the air inlet pipe, The cleaning pipe is externally connected with a detergent device and a disinfectant device, and the inactivation tank is provided with an "L" type adapter pipe. One end of the "L" type adapter pipe is internally connected with an air inlet pipe, and the other end is equipped with a silent steam water mixer; The temporary storage tank and inactivation tank are also equipped with temperature meter, pressure sensor and liquid level sensor, and connected with PLC controller through communication. The air inlet pipe, exhaust pipe and cleaning pipe are equipped with pneumatic stop valve, and the PLC controller is connected with the water inlet pump and each pneumatic stop valve; The invention has the advantages of low operation cost, safety and reliability, thorough inactivation, automatic control and low labor intensity.
The system has the following advantages:
(1) The system has simple structure and ingenious design, adopts PLC controller to realize the automatic control of each water pump and pneumatic stop valve in the inactivation system, realizes the unattended and efficient production operation of the inactivation system, reduces the energy consumption, and greatly reduces the operation cost and labor intensity of workers;
(2) The system realizes the real-time recording of the temperature, pressure, liquid level and other parameters involved in the operation of the inactivation system through the PLC controller, and displays them to the user through the touch screen as the basis for judging the normal operation of the system;
(3) By setting an L-shaped adapter pipe and a silent steam water mixer in the inactivation tank, the system ensures that the steam and the biological wastewater are fully contacted and mixed, and makes the biological wastewater reciprocate in the inactivation tank, which not only improves the inactivation efficiency, but also prevents the scale in the biological wastewater from condensing on the inner wall of the inactivation tank when the biological wastewater is inactivated, Thus, the workload of subsequent descaling and cleaning is greatly reduced;
(4) The system adopts the design of no dead angle in the temporary storage tank and the inactivation tank, especially improves the structure of the sewage outlet of the tank body, effectively prevents the residue of biological wastewater, and ensures complete inactivation;
(5) The system configures an insulating layer on the inactivation tank to ensure the heat loss in the inactivation process, thus ensuring the inactivation effect;
(6) In the system, a safety valve is arranged on the ventilation pipe between the temporary storage tank and the inactivation tank, so as to ensure that the pressure in the tank is maintained within the range of the calibration value when the inactivation tank is used for the inactivation treatment of the biological wastewater, and improve the safety of the system operation;
(7) The exhaust gas filter is externally connected at the exhaust pipe of the temporary storage tank and the inactivation tank, so that the gas in the tank is discharged to the atmosphere after being treated, so as to prevent environmental pollution and pose a threat to people's life and health.
