    Model NO.JZ-GARCustomizedCustomized
    ConditionNewWarranty1 Year
    After-sales ServiceOne Year Warranty, Lifelong MaintenanceTrademarkJinzong Machinery
    Transport PackagePlywood CaseSpecificationDepends on Capactiy
    OriginGuangdong, China (Mainland)HS Code8419899090
    Global Sources

    We are a leading manufacturer of Food and Pharmaceutical Equipments since 1999, covering wide range of products, with strong production and design strength, we can provide you with turnkey projects such as engineering design, equipment selection guidance, equipment customized processing and equipment installation of pharmaceutical projects.

    Glass Lined Reactor Synthesis Corrosion Resistant Enamel Tank with Heating Cooling Mixing Jacked Chemical Reactor

    1. Descriptions:

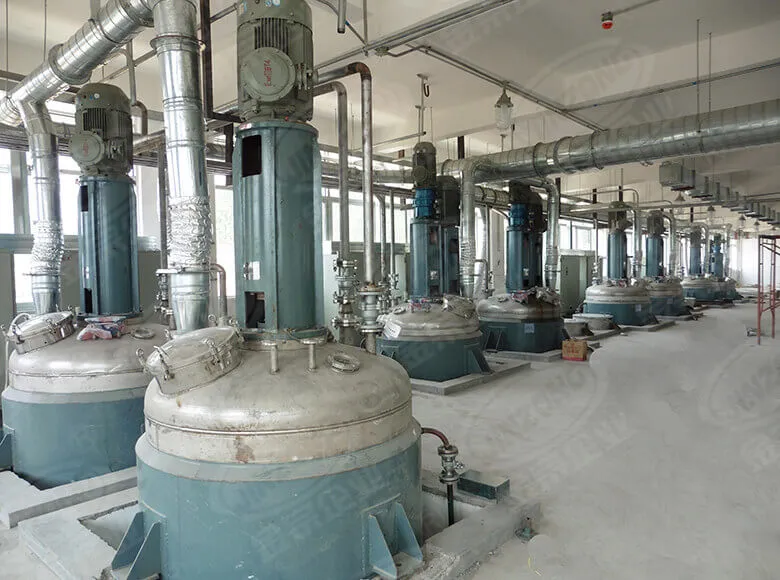

    Because of the different production processes and operating conditions, the reactor is divided into two series: the electric heating series reactor and the steam heating series reactor (cycle oil heating). The working principle of the electric heating reactor is to put the electric heater into the heat transfer oil in the jacket, using the heat transfer oil as the heat carrier to heat the material in the still.
    Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank
    Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank

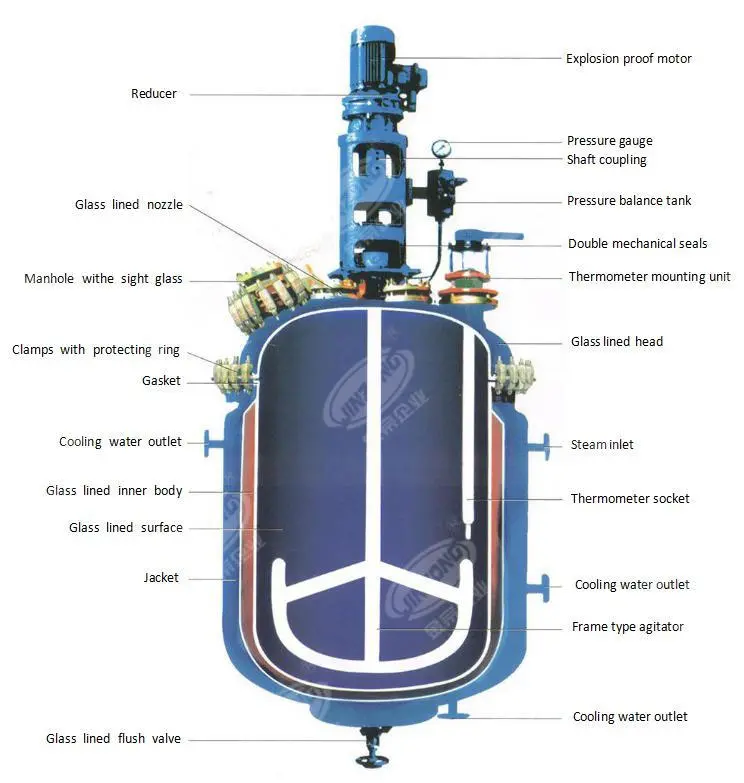

    The glass lined reactor consists of the lid, drum shell, jacket, agitator, shaft seal drive device and support, and the shaft seal drive device is divided into the packing seal and mechanical seal.

    Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank

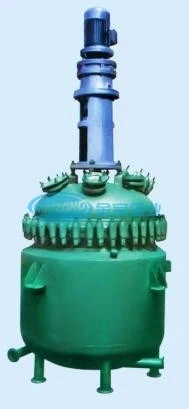

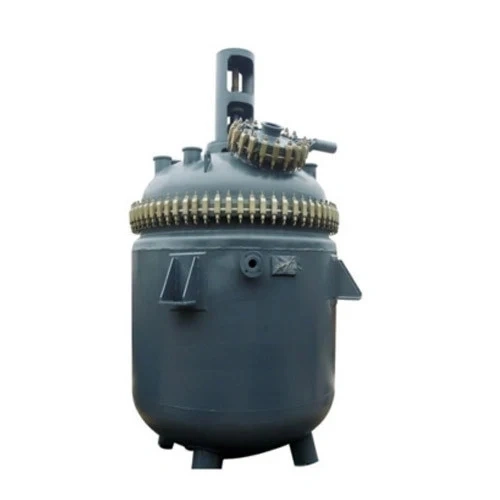

    Glass lined reactor are primarily used for carrying out critical chemical processes where corrosion resistance and chemical inertness are of prime importance. The open type reactors consist of two major parts-the vessel and the over.

     The reactors range in capacity from 50L to 12500L. The reactor vessel is provided with all necessary accessories such as agitator, thermowell, etc. Depending on the design pressure requirement, seal may be stuffing box type, single mechanical seal or double mechanical seal.
    All types of agitators may be used with these reactors. The reactors can be customized for GMP applications for use in pharmaceutical industry.
    They are designed to withstand temperatures between-20ºC to +200ºC and pressure up to 6 Bar in the vessel as well as the jacket. Hence, they provide the benefit of chemical inertness, corrosion resistance and mechanical strength all together to become the preferred MOC for reactor vessels in critical conditions.

    2. Applications:
    Glass line reactor is widely used in Active Pharmaceutical Ingredients API manufacturing process, Intermediate manufacturing process, such as Synthesis reaction, Hydrolysis reaction, quenching reaction, distillation concentration.

    Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank

    Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank

    3. Technical Information:
    Volume(L)5010020030050010001500200030005000(B)5000(A)6300
    Motor Power(Kw)0.80.81.1334445.55.55.57.5
    Calculated Volume(L)711282473895881250172021603715565056507000
    Heat Exchange Area0.340.661.261.752.644.545.347.028.6113.813.816.4
    N. weight(kg)47754870697510521657205121703833414250325978
    Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

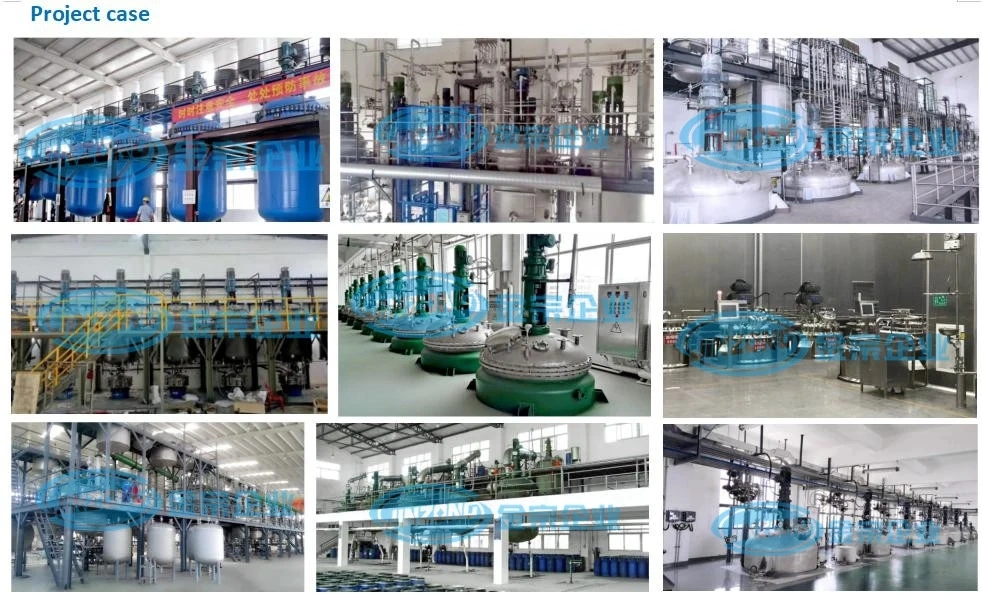

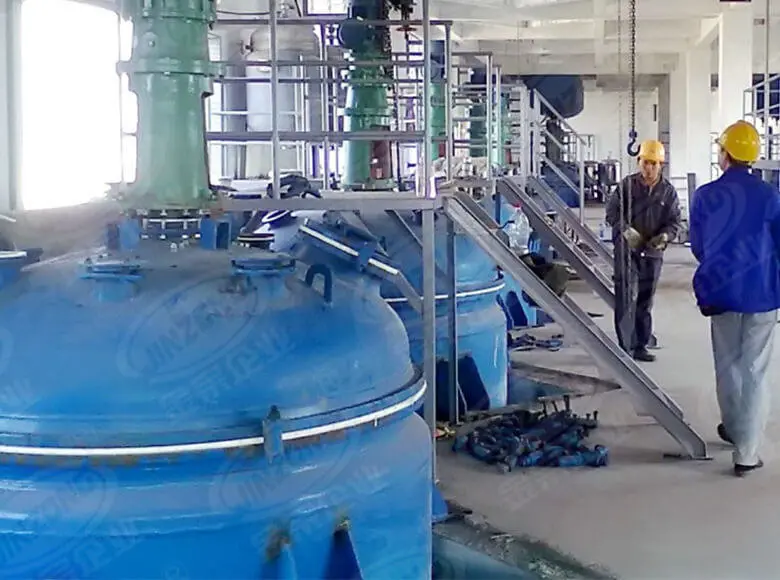

    4. Project Case:

    Averbatan intermediate manufacturing plant
    Hydrolysis of silkworm chrysalis production line
    Extraction of complex amino acids from protein production line
    MCC Microcrystalline cellulose manufacturing plant
    Diaminobutyric acid manufacturing plant
    Vitamin derivatives manufacturing plant



     Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction TankGlass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction TankGlass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank


    Glass Lined Tank Synthesis Corrosion Resistant Enamel Reactor with Heating Cooling Mixing Jacketed Eeaction Tank
    Notes:
    1) According to user's different requirements,there are many mixing methods(anchor, paddle, pan wheel, push, or box-type stirring )to choose.
    2) There are five kinds of heating way,including the jacket heating , coil heating, electric heating,steam heating,and the heat transfer oil heating.
    3)The user can choose the explosion-proof device,the sealing device, positive pressure or negative pressure inside the reactor.

    4)With many years' experiences of design and production, our technical engineers can design according to the users' special requests.

    F&Q
    Q: Do you have machines in stock?
    A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.
    Q: Can you send the detailed drawings of the machine to us before we place order?
     A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters for you and send you the detailed drawings. Once you confirm without questions, we will put it into production.

    Q: Can we pay the balance after we receive the machines and test without problems?
    A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
