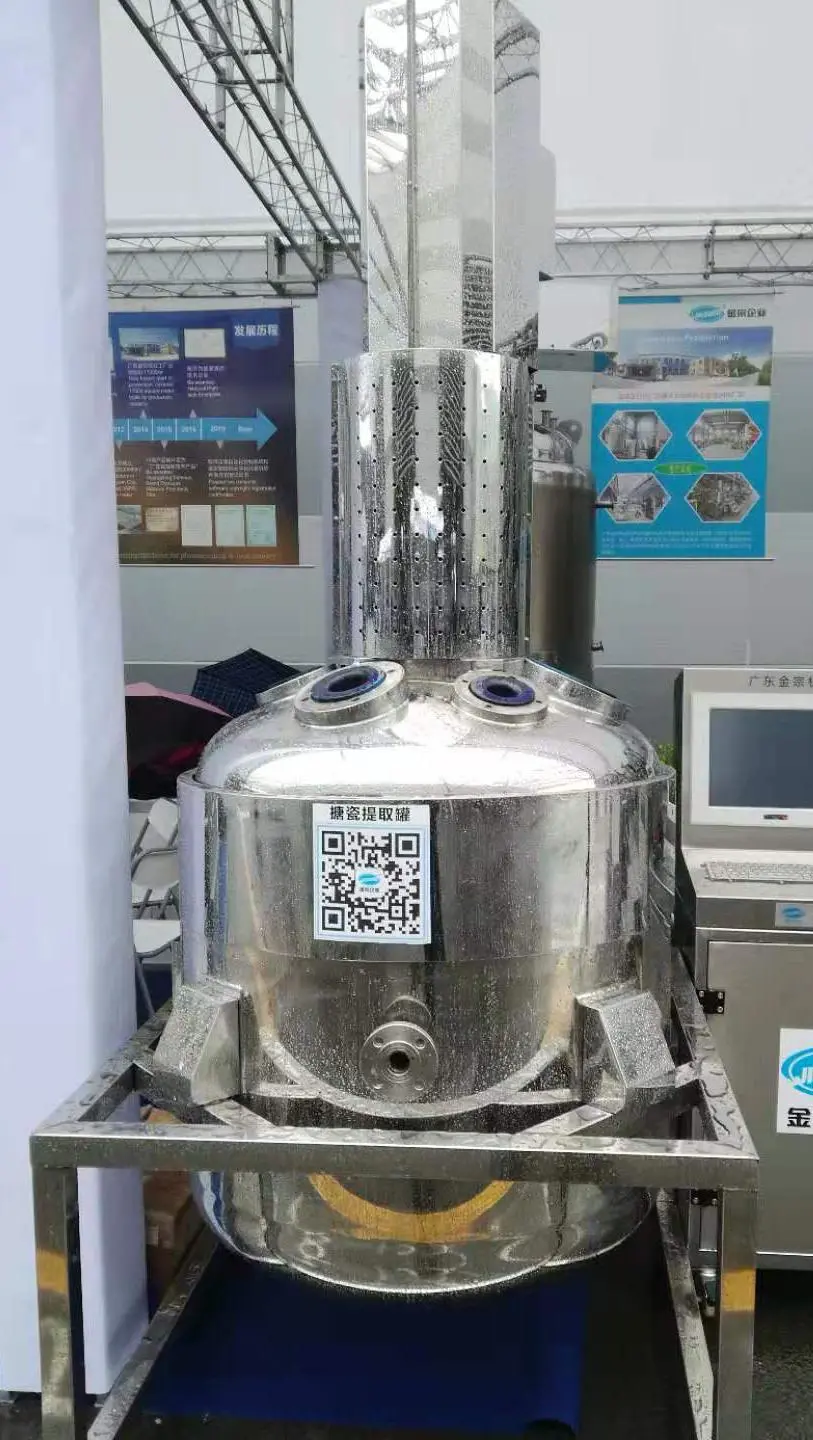

Glass lined reactor with stainless steel outer surface
1.working temperature: 1-150ºC,
temperature abrupt change cold shock: 110ºC,
heat thermal shock 120ºC,
heating and cooling for glass-lined equipment should be slow.
2.voltage withstanding: glass-lined has good insulation. When glass is inspected by 20KV high frequency electric spark, the working surface is not conductive
3.Corrosion resistance: It can resist the corrosion of inorganic acids, organic acids, organic solvents and weak alkali of various concentrations (except hydrofluoric acid, >30% medium concentration fluoride ions and >180ºC concentrated phosphoric acid and strong alkali).
4.Non-sticky: It has a smooth and clean surface, and is not easy to bind materials. It is very suitable for food and easy-to-bind materials.
Glass lined reactor is lined with glass which containing high silicon dioxide on the inner surface of steel containers and burned at high temperature to firmly adhered on the metal surface. It has the advantages of glass stability and metal strength. Glass lined reactor has excellent properties of acid resistance, alkali resistance, impact resistance and temperature change resistance. It is an excellent corrosion resistance equipment. It has been widely used in chemical, petroleum, medicine, pesticide, food and other industries.
