Extraction and Concentration Production Line for Pharmaceutical Extraction Plant Solution

Extraction and concentration production line for pharmaceutical extraction plant solution,
China manufacturer, ONE BELT ONE ROAD

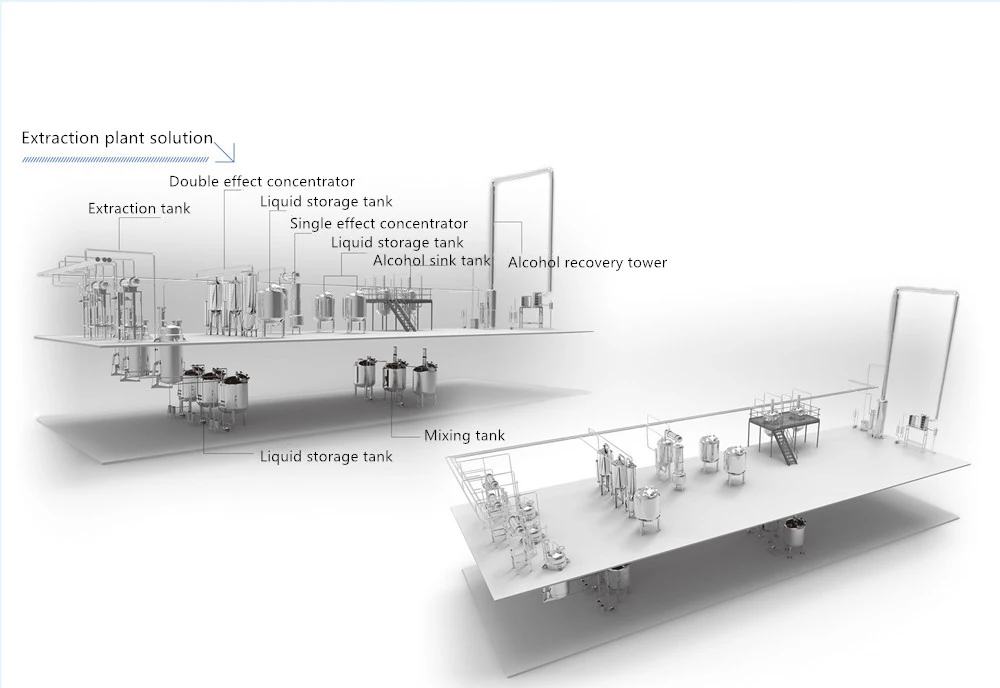

The whole extraction and concentration production line for pharmaceutical includes extraction tank, filter, pump, double-effect concentrator, alcohol sink tank, Spherical concentrator, dryer, Alcohol recovery tower, stainless steel storage tanks. All parts of the equipment that contact with the material are all made by stainless steel and are GMP compliant construction.


Our company can provide users with engineering design, equipment model selection guide, equipment manufacturing, equipment installation and turn-key project. We are competent and are your one stop shopping centre for all your machinery needs.

Equipment Description
Extraction tank
The extraction tank is composed of 1. extraction tanks, 2. foam traps, 3. gas-liquid separators, 4. coolers, 5. condensers, 6. oil and water separators, 7. liquid pump, 8. pipeline filters and internal connection pipes. Capacity: customized
Double effect concentrator
The equipment consists the following equipment and accessories: The firstly effective heating chamber, Two evaporation chambers, A secondary heating chamber, A cooler, A water receiver, connecting pipes. All contact parts are manufactured from SUS304 grade stainless steel sheets, Capacity: customized
Alcohol sink tank Stainless -steel body, fitted with high-pressure automatic spray &clean system. The clip-sleeve can contain low temperature cooling water. Mechanical seal. explosion-proof motor. Capacity: customized
Spherical concentrator It mainly consists of concentrating tank, condenser, gas-liquid separator and liquid receiver. Capacity: customized
dryer Heating source: steam or electricity. Capacity: customized
Alcohol recovery tower Stainless steel body, It's mainly consists of tower body, condenser, cooler
Stainless steel storage tank Stainless steel body, Capacity: customized, The size, material, heat transfer systems, mixing systems, sealing systems of storage tank according to client's specification

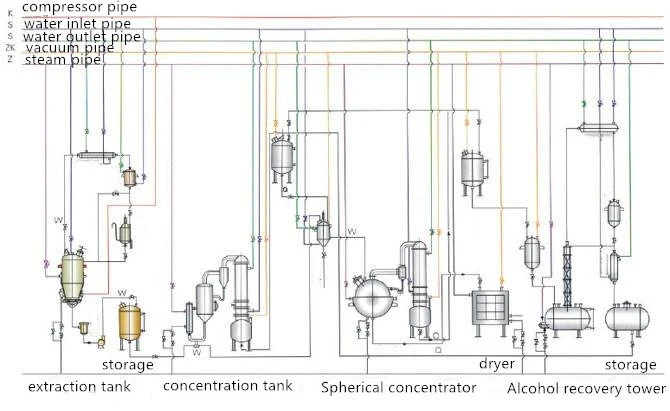

Pipeline system According to the client's demand, it decides the heating, cooling, vacuum and material pipelines, and including related valves, flowmeters etc.
Control System According to client's demand, it decides manual, semi-automatic or full-automatic system.
Operation Platform Steel platform or concrete platform
