Emulsifying Salad Dressing Mayonnaise Food Puree Mixer Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Customized | Customized | Condition | New |
| Warranty | 1 Year | After-sales Service | One Year Warranty, Lifelong Maintenance |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8422303090 |
Salad Dressing Mayonnaise Food Puree Mixing Manufacturing Machine

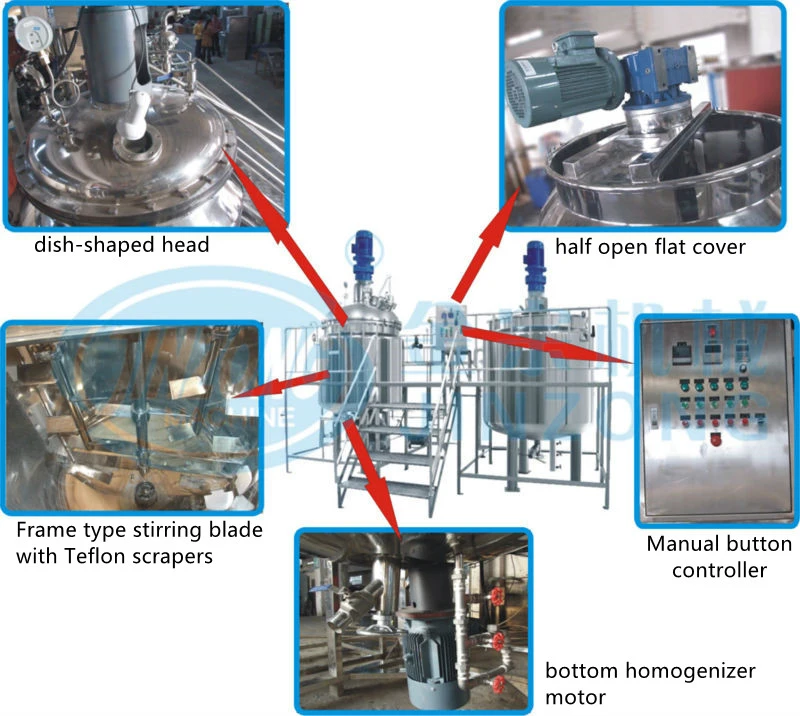

This machine is composed of kettle, blender, homogenizer etc.
Contact parts material- stainless steel SUS316L, SUS316, SUS304L or SUS304, Non contact parts SUS304, which has perfect corrosion proof performance, and is highly endurable according to GMP requirements.
Features:
fixed tank or Tiltable tank, jacketed, stainless steel, insulated vessel;
Full size cover, automatic;
Mixing arm with scraper;
Direct steam nozzles;
Discharge valve (cooking water, liquid products);
Steam conditioning unit; high thermal efficiency, uniform heating,
Easy to control heating temperature
Short time for liquid material boiling
Beautiful appearance and easy operation
Safety and reliable
Working capacity from 10L to 5000L;
Suitable for mayonnaise, salad dressing,ointment, cream, Flavoring agent,Seasoning and emulsions of 10,000~50,000cps viscosity;
Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;
All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction.
The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel.

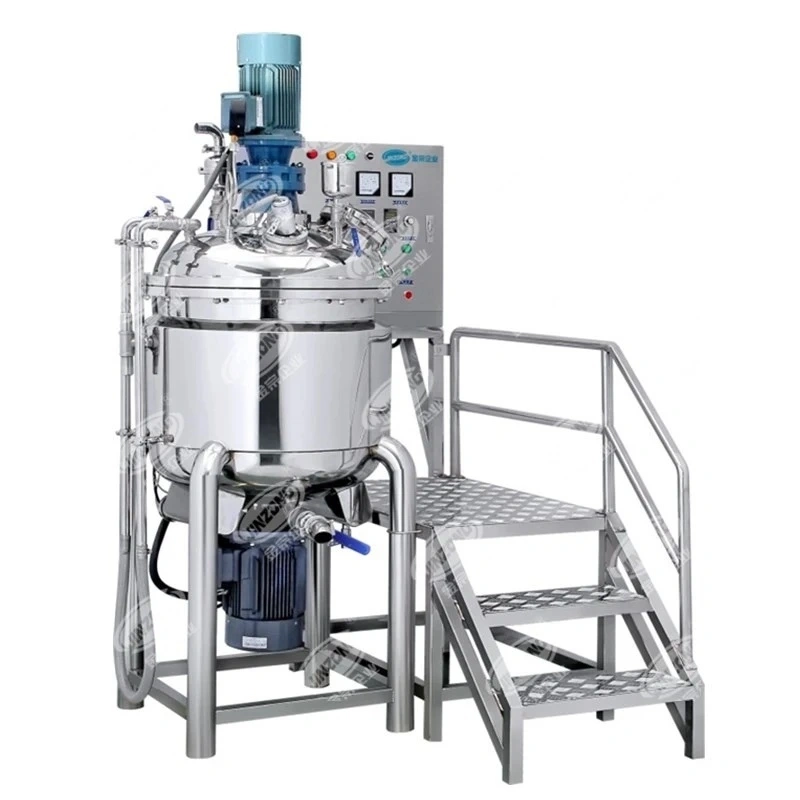

JR series Vacuum emulsifying mixing machine
Application
Widely used in mayonnaise, salad dressing, baby puree, Flavoring agent flavouring Seasoning mixing processing.
This machine is composed of kettle, blender, homogenizer etc.
Contact parts material- stainless steel SUS316L, SUS316, SUS304L or SUS304, Non contact parts SUS304, which has perfect corrosion proof performance, and is highly endurable according to GMP requirements.
Features:
fixed tank or Tiltable tank, jacketed, stainless steel, insulated vessel;
Full size cover, automatic;
Mixing arm with scraper;
Direct steam nozzles;
Discharge valve (cooking water, liquid products);
Steam conditioning unit; high thermal efficiency, uniform heating,
Easy to control heating temperature
Short time for liquid material boiling
Beautiful appearance and easy operation
Safety and reliable
Working capacity from 10L to 5000L;
Suitable for mayonnaise, salad dressing,ointment, cream, Flavoring agent,Seasoning and emulsions of 10,000~50,000cps viscosity;
Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;
All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction.
The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel.
JR series Vacuum emulsifying mixing machine
| Model | Volume of Main Tank (L) | Volume of Dissolving tank(L) | Dimension(mm) | total power(kw) | weitht(kg) |
| 100 | 130 | 70/100 | 2600*2500*2300 | 5.5 | 1200 |
| 200 | 260 | 120/190 | 2800*3000*2650 | 7.7 | 1600 |
| 300 | 375 | 150/260 | 2900*3000*2750 | 10.5 | 1900 |
| 500 | 620 | 300/460 | 3300*3550*3050 | 15 | 2500 |
| 1000 | 1250 | 620/900 | 4100*3900*3500 | 20.5 | 4000 |
| 2000 | 2600 | 1200/1500 | 4500*5200*4000 | 26 | 6000 |
| 3000 | 3800 | 1500/2400 | 4800*5700*4200 | 33 | 9000 |
| 5000 | 6500 | 2500/3600 | 5100*6400*4800 | 37 | |
| 10000 | 12500 | 5000/7000 | 52 |
Application
Widely used in mayonnaise, salad dressing, baby puree, Flavoring agent flavouring Seasoning mixing processing.
The product offers versatile application possibilities for various industries. The product requires less training than other same types.
In a couple of years, the product has spread out and won a high degree of recognition and reputation among overseas customers. The product requires less training than other same types.
