Warranty	1 Year	Trademark	JINZONG
Transport Package	Plywood Case	Specification	SUS304, 316L
Origin	Guangdong	HS Code	8419899090

Customized Stainless Steel Reactor tanks Chemical Reactor Jacketed Reactors
We offer Stainless Steel Reactor that is sturdily constructed using high grade Stainless Steel. The SS Reactor that we bring forth is used in varied applications and therefore is supplied to different industries throughout the country and all over the world. Also, these SS Reactors are customized to meet the requirements of the clients.
. Customized Stainless Steel Reactor Tanks Chemical Reactor Jacketed Reactors

Stainless steel reaction tank is the key equipment for API production process. Our company can provide users various reactors with engineering design, equipment model selection guide, equipment machining, equipment installation and turn-key project.
Features:
capacity: 50L-50000L, customized
Weight: customized
Cerification: CE, ISO9001
Volume: customized
Place of Origin: Guangdong, China
Brand Name: Jinzong

Material
stainless steel, high temperature stainless steel, strong acid and alkali resistant stainless steel,

Stirring Type
Slurry type, anchor type, frame type, push type and single (double) spiral type, and other types of blades can be designed and manufactured according to customer requirements.
Customized Stainless Steel Reactor Tanks Chemical Reactor Jacketed Reactors

Model selection reference of reaction tank

Composition	Instructions
Specification (L)	50-50000
Design Pressure (Mpa)	Atmospheric Pressure or under pressure
Material	Carbon steel, stainless steel, enamel, graphite
Heating Forms	Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.
Cooling Forms	Refrigeration medium in the internal pipe jacket
Blending Power	Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.

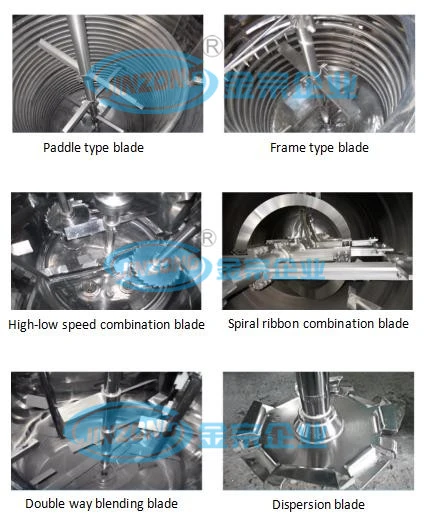

Stirring blade Forms	Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
Seal	Mechanical seal or stuff packing seal
Inner Surface Treatment	Polished or no polished
Discharge Valve	Flanged ball valve, open downward discharge valve and others
Technological Pipe Hole	Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,

production details:

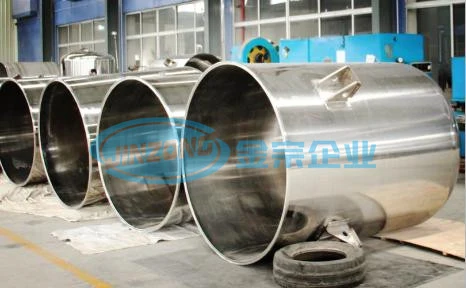

good quality stainless steel material with excellent polished treatment
Customized Stainless Steel Reactor Tanks Chemical Reactor Jacketed Reactors

Siemens agitator motor

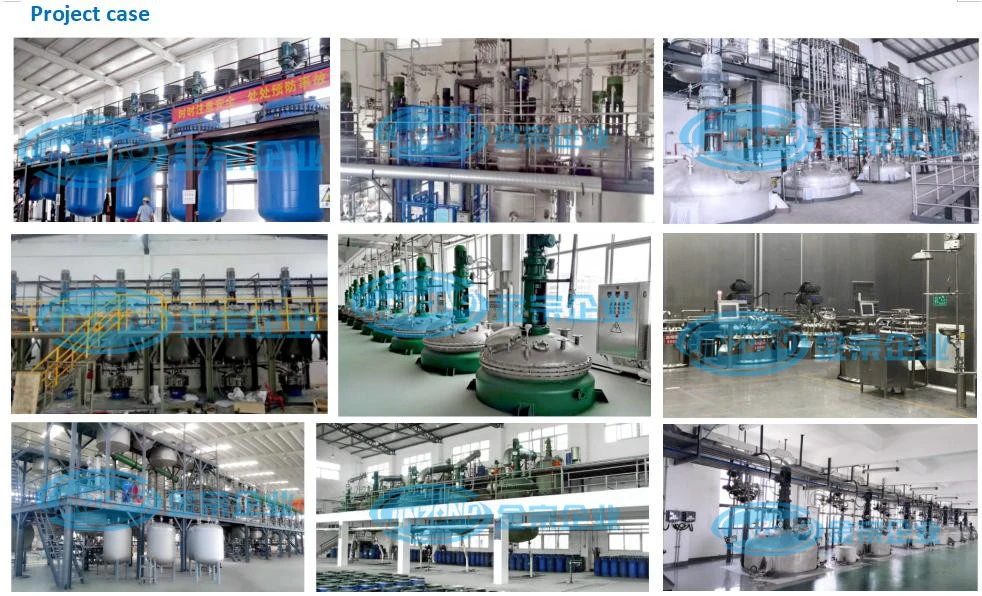

Project case

Customized Stainless Steel Reactor Tanks Chemical Reactor Jacketed Reactors

We put accountability at a high priority and we will work with you every step of the way to ensure your success. We strive to promote the growth of your business by supplying you with the best products. We have a successful background of manufacturing amazing stainless steel reactors. Our company is a turnkey supplier that offers friendly service. Our teams will always treat you with respect.
Customized Stainless Steel Reactor Tanks Chemical Reactor Jacketed Reactors

People who pay more attention to the quality of decoration, this product is the best choice for its color is consistent with any style of a bathroom. It is resistant to breakage with its sturdy frame. The benefits of using this product means that people are able to transform it in so many ways to create the exact venue they want. It is resistant to breakage with its sturdy frame.
