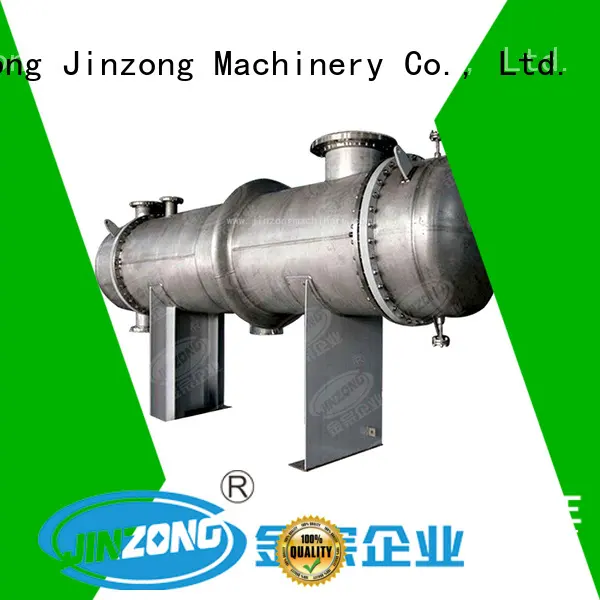

Carbon steel SS Heat Exchanger/Condenser
1. Our chemical equipment supply are constantly updated to follow the trend.
2. The product features moisture resistance. It can greatly withstand the humid environment for a long time without changing its property.
3. The product is very durable. Its roof is made of high composite material, which does not cause obvious wrinkles and breakage when repeatedly folded and stretched.
4. The product is significant for the development of industrial and economic. It is widely used in construction, high-tech industry, and chemical engineering.
5. The product provides the solidity of permanent structures, yet is lightweight and portable, which is perfectly suitable for outdoor use.
The heat exchanger is used for heat transfer between the material . With this device so that the material can reach the specified temperature to meet the technical requirements. Using a combination of various heat exchanger, can use a variety of levels of energy fully and rationally, so that reduce unit product energy consumption, thereby reducing the cost of the product to get good value .
Heat exchanger can be divided into two categories according to the device structure namely,plate-and-frame type heat exchanger and shell and tube heat exchanger. Chip plate heat exchanger is combination of plate-fin and shell-type spiral.Shell and tube heat exchanger is a compostion of shell and tube plate devices.
The tubular condenser produced by our factory is divided into three types according to the material: carbon steel tubular condenser, stainless steel tubular condenser and carbon steel and stainless steel mixed tubular condenser. According to the form, it is divided into fixed tubesheet type, floating head type and U-tube heat exchanger. According to the structure, it is divided into single tube, double tube and multi-tube. Heat transfer area is 0.5-500 m2, which can be customized according to user's needs.
| Diameter (mm) | Number of tubes | Tube quantity | Heat exchanger Nominal value/calculated value | Flow speed :0.5m/sec Flow: m/hr | Pressure | |||||
| Tube length (m) | φ25×2.5 | |||||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | φ25×2 | |||||
| 159 | 1 | 14 | 1.51.62 | 22.17 | 33.27 | 0.0044/ 0.0049 | 7.92/8.82 | 0.25 | ||
| 219 | 1 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.1 | 0.0082/0.0090 | 14.76/16.20 | 0.6 | |
| 2 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.81 | 0.0041/0.0045 | 7.38/8.01 | 1.0 | ||
| 273 | 1 | 44 | 5/5.08 | 7/5.18 | 10/10.26 | 14/13.72 | 21/20.63 | 0.0138/0.0152 | 24.84/27.36 | 1.6 |
| 2 | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.24/12.42 | 2.5 | |
| 325 | 1 | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0188/0.0208 | 33.84/37.44 | 0.6 |
| 2 | 56 | 6/6.47 | 9/8.66 | 13/13.05 | 17/17.46 | 36/26.26 | 0.0088/0.0097 | 15.84/17.46 | 1.0 | |
| 400 | 1 | 119 | 14/13.47 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.8 | 0.0374/0.0412 | 67.32/74.16 | 1.6 |
| 2 | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 34/34.20 | 50/51.58 | 0.0173/0.0190 | 31.14/34.20 | 2.5 | |
| 500 | 1 | 185 | 45/4.15 | 55/57.68 | 85/86.74 | 0.0581/0.0641 | 104.58/115.38 | |||
| 2 | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0283/0.0312 | 50.94/56.16 | ||||
| 600 | 1 | 269 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||
| 2 | 266 | 60/32.05 | 80/82.94 | 125/14.72 | 0.0418/0.0461 | 75.24/83.98 | ||||
| 700 | 1 | 379 | 90/88.41 | 120/118.17 | 175/177.71 | 0.0091/0.1313 | 214.38/236.34 | |||
| 2 | 358 | 85/83.51 | 110/111.62 | 165/167.85 | 0.0562/0.0620 | 101.16/111.60 | ||||
| 800 | 1 | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.1770 | 288.90/318.60 | |||
| 2 | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||
| 900 | 1 | 649 | 150/151.39 | 200/202.36 | 305/304.3 | 0.2039/0.2248 | 367.02/404.46 | |||
| 2 | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||
| 1000 | 1 | 805 | 185/187.78 | 250/251.00 | 375/377.45 | 0.2529/0.2788 | 455.22/501.74 | |||
| 2 | 792 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||
