Complete Resin plant

Resin production equipment is a combination of reaction kettles and ancillary equipment selected according to the process requirements. Jinzong Machinery have accumulated 20 years of resin equipment production experience and have strong production and design capabilities, which can provide users with alkyd resins and polyester resins. Unsaturated polyester resin. Epoxy resin. Acrylic resin,(PU) amino resin, curing agent, hot melt glue, binder, Silicon oil, light oil and other projects of the engineering design, setting alternative guidance, equipment processing, equipment installation and other key engineering. Relying on the Internet of Things system, real-time monitoring of the operation of each device, ensure safe and efficient production, daily form of reports, factory operations, at a glance, really realize the factory intelligent, digital.

*Principle:
The pan and lid are sealed by flange. The lower part of the pot has a feeding hole, and there is a blender in the pot. The boiler cover has process tube holes such as feed, stirring, observation, temperature measurement, pressure measurement, Steam extraction fractionation, and safe emptying. The upper part of the lid is fitted with a speed reducer and an electric motor. The drive shaft drives the pot mixer, and the shaft seal device is on the top of the lid. Heating CLIP sleeve with open into, discharge oil(steam), temperature measurement, air, electric heat rod and other takeover holes. Due to the fact that the user has different production processes and operating conditions, the pot cover process is perforated and the stirring type(pulp type, anchor type, frame type, spiral type, etc.) is used. Support type(suspension or support type) and packing sealing device and other different requirements, can be contacted, separately designed, specially prepared.

For more than 20 years Guangzhou Jinzong Machinery Co., Ltd. has developed cost effective solutions and innovative processes for the production of high quality synthetic resins and polymer emulsions for Europe, Asia , Middle East, and South America.
Jinzong Machinery has in-house capabilities to both upgrade existing synthetic resin and polymer emulsion manufacturing plants and design new ones with state of the art process control systems.

Offers a full range of engineering services to the resin, paint, plastic and printing ink industries including: Feasibility studies; Process control system software upgrades; Existing facility improvements; Turnkey plants;

Feature: Due to the fact that the user's production process and operating conditions are not the same, the jacket heating type is divided into electric heating, Steam heating, and heat conduction oil cycling heating. The shaft sealing device is divided into packing sealing and mechanical sealing. The stirring type has anchor type, slurry type, worm wheel type, propulsion type or frame type. The number of openings, specifications or other requirements can be made according to user requirements.

Chemical Machine Resin Plant is the key equipment for producing all kinds of resins, such as Alkyd resin, Acrylic resin, PET resin, epoxy resins, ABS resins, Polyester resin, Unsaturated polyester resin, , Amino resin, curing agent.

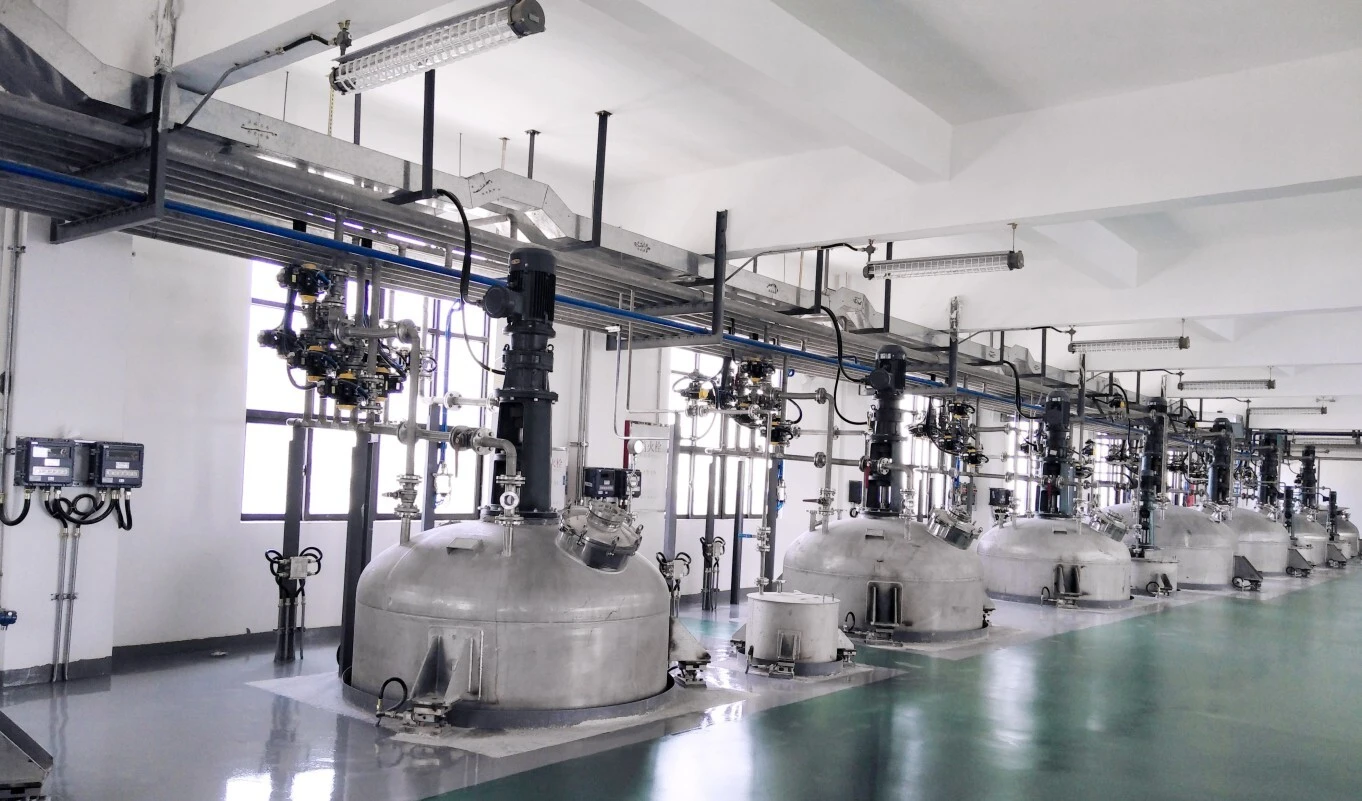

The whole set of equipment includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.

*Model selection reference of resin production equipment:

Alkyd Resin Plant

EPOXY Resin Complete Plant

Modified Rosin Resin Complete Plant

PE Resin Plant

Oil-Based PU Resin Plant

PVAC Resin Plant
