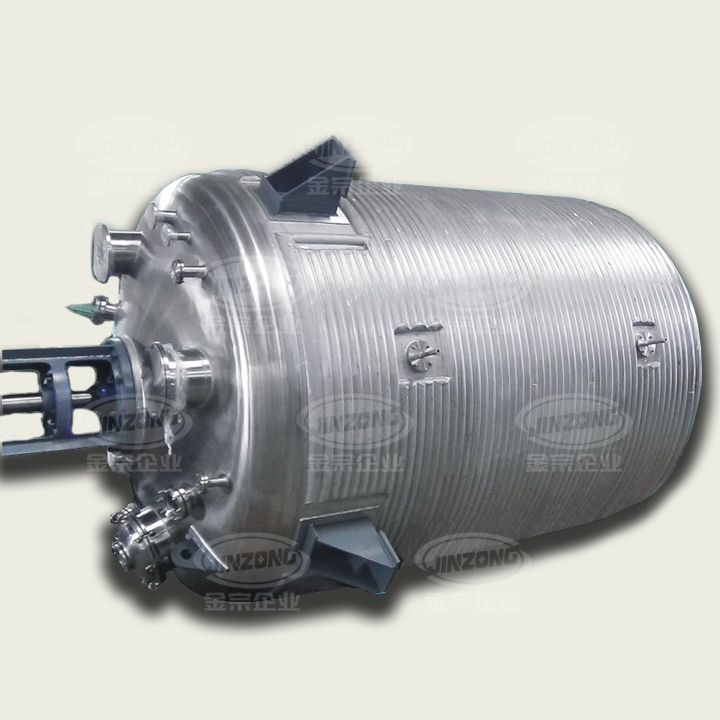

External Half Coil Reactor

    oops...!

    no product data.

    Go to homepage

    The reactor is widely used for reaction, evaporation, concentration, synthesization, extraction, polymerization, mineralization, etc.in chemical industry, medicine, dye, pesticide, organic synthesis, petroleum, food additives, industry of national defense and scientific research. Our company is an enterprise specialized in designing and manufacturing reaction kettles. With twenty years of experience in manufacturing reaction kettles, we can design and manufacture various types of reaction kettles for users.

    External Half Coil Reactor 6

    *Product Function Brief:
    A. Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
    B. Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
    C. Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc.
    D. Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
    E. Applicable Field: All the liquid-liquid, liquid-powder reaction industry.

    *Main feature

    The external half pipe coil reactor) is heated by the external coil to supply heat transfer conduction oil / steam / water, it is an ideal equipment of low power and high heating temperature and large volume.
    A. Reduce the thickness of tank and increase its loading capacity.
    B. Increase heat transfer efficiency.
    C. Reduce power consumption and cost.
    D. Reduce the total diameter of tank and be good for the layout of workshop.

    Model Selection Reference of Reactor


    CompositionInstruction
    Capacity50L-50T
    Heating MethodSteam heating, conduction oil heating by inner coil, external half coil
    Cooling methodWater cooling, conduction oil cooling by inner coil, external half coil
    Design Pressure MpaAtmospheric pressure or under pressure or pressure tank
    Blending PowerModel selection is made according to material viscosity, liquid—solid ration, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type,
    with or without baffle or internal coil
    Stirring Blade FormsAnchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
    SealMechanical seal or stuff packing seal
    Inner Surface TreatmentPolished or no polished
    Discharge ValveFlanged ball valve, open downward discharge valve and others
    Technological Pipe HoleManhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature mouth, mouth filling N2, a gate, hot-carrier import and export of the cooling fluid,
    temperature measurement ports, sampling ports, emptying the mouth, according to the process above requirements increase or decrease.
    Stirring Blade Forms Selection

    Mixing system is the xore component of reactor, a custom-made stirrer is your key to success. Stirrer selection is related with the material’s viscosity, liquid-solid ratio, proportion of liquid, solid’s weight, solid’s particle size, blade type, rotating speed, baffle, internal pipe coil etc.

    External Half Coil Reactor 7
    External Half Coil Reactor 8
    External Half Coil Reactor 9


    External Half Coil Reactor 10
    External Half Coil Reactor 11
    External Half Coil Reactor 12
    Technical Specifications


    Specification (L)Cylinder size (mm)Actual volume (L)External half pipe size (mm)Heating area (㎡)Inner coil size (mm)Heat area (㎡)Motor power (kw)
    500900*800699Φ76/21.7Φ381.63
    10001100*12001400Φ76/22.6Φ452.74
    15001300*12002166Φ76/23.8Φ453.65.5
    20001400*15003000Φ76/24.5Φ454.35.5
    30001600*15004066Φ89/25.8Φ455.77.5
    40001700*18005400Φ89/27Φ576.811
    50001800*20006600Φ89/27.5Φ57811
    60001900*20007700Φ89/28.7Φ57915
    80002100*225010038Φ89/211Φ571115
    100002200*250012300Φ89/213.2Φ571318.5
    150002600*280019456Φ108/218.6Φ571822(Level 6)
    200002800*300024205Φ108/221Φ572130(Level 6)
    250003000*340031084Φ108/226Φ572537(Level 6)
    300003200*350036706Φ108/230Φ573045(Level 6)
    350003200*400040725Φ108/233Φ573355(Level 6)
    400003400*400046580Φ108/235Φ573555(Level 6)
    Application


    *Application of Reaction plant:

    Resin Plant is the key equipment for producing all kinds of resins, such as Alkyd resin, Acrylic resin, Acrylic emulsions, PVA emulsions, PET resin, epoxy resins, ABS resins, Polyester resin, Unsaturated polyester resin, Amino resin, curing agent etc.
    The whole set of equipment includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.

    *Model selection reference of resin production equipment:

    CompositionInstructions
    Main ReactorThe size, material, heat transfer systems, mixing systems, sealing systems of reactor according to client's specification
    Dosing VesselAccording to the client's demand, it adopts gravity tank, gravity mixing tank, gravity dispersing tank, gravity emulsifying tank.
    Distillation DeviceVertical condenser, horizontal condenser and separator.
    Vacuum systemAll kinds of vacuum pumps, buffer tanks.
    Thinning Vessel/cooling tankThe size, material, heat transfer systems, mixing systems, sealing systems of thinning vessel according to client's specification
    Pipeline systemAccording to the client's demand, it decides the heating, cooling, vacuum and material pipelines, and including related valves, flowmeters and expanders etc.
    Control SystemAccording to client's demand, it decides manual, semi-automatic or full-automatic system.
    Filter SystemFrame filter, bag filter or centrifuge etc.
    Operation PlatformSteel platform or concrete platform
    External Half Coil Reactor 13

    Alkyd Resin

    External Half Coil Reactor 14

    PU resin

    External Half Coil Reactor 15

    Water reducer agent plant

    External Half Coil Reactor 16

    Alkyd Resin

    Certification


    External Half Coil Reactor 17
    External Half Coil Reactor 18
    External Half Coil Reactor 19

    *Advantage
    For more than 20 years Guangzhou Jinzong Machinery Co., Ltd. has developed cost effective solutions and innovative processes for the production of high quality synthetic resins and polymer emulsions for Asia , Middle East, and South America.
    Jinzong Machinery has in-house capabilities to both upgrade existing synthetic resin and polymer emulsion manufacturing plants and design new ones with state of the art process control systems.
    offers a full range of engineering services to the chemical, food industries including :

    • Feasibility studies

    • Process control system software upgrades

    • Existing facility improvements

    • Turnkey plants

    *Reaction plant is manufacturing in our factory:

    External Half Coil Reactor 20

    External Half Coil Reactor 21
    *After-sales service:
    1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
    2> Provide professional after-sales service engineers to  abroad  installation and debugging.

    *ONE-STOP SERVICES
    According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic, chemical, food and pharmaceutical machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services

    *Providing technical support in the aspects of field commissioning and running of the products sold.
    *Field failure diagnosis and maintenance.
    *Providing spare parts and fittings, maintenance and servicing plans.

    *Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.

    External Half Coil Reactor 22


    *About us:
    Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of  cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
    Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
    Product lines range from:
    1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill,  filling machine etc.
    2> Chemical Machinery:  reactor, mixing equipment, separation equipment, storage tank, disperser, mill  etc.
    3> Biological and Pharmaceutical  Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.

    4> Food  Machinery: Reactor, fermentation tank, sanitary stainless reactor, mixer, mixing tank etc.

    External Half Coil Reactor 23

    *Our strength

    1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical  food, biological & pharmaceutical industry.
    2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate.  We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
    3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
    4.Have a Professional after-sales service engineering team.

    5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
