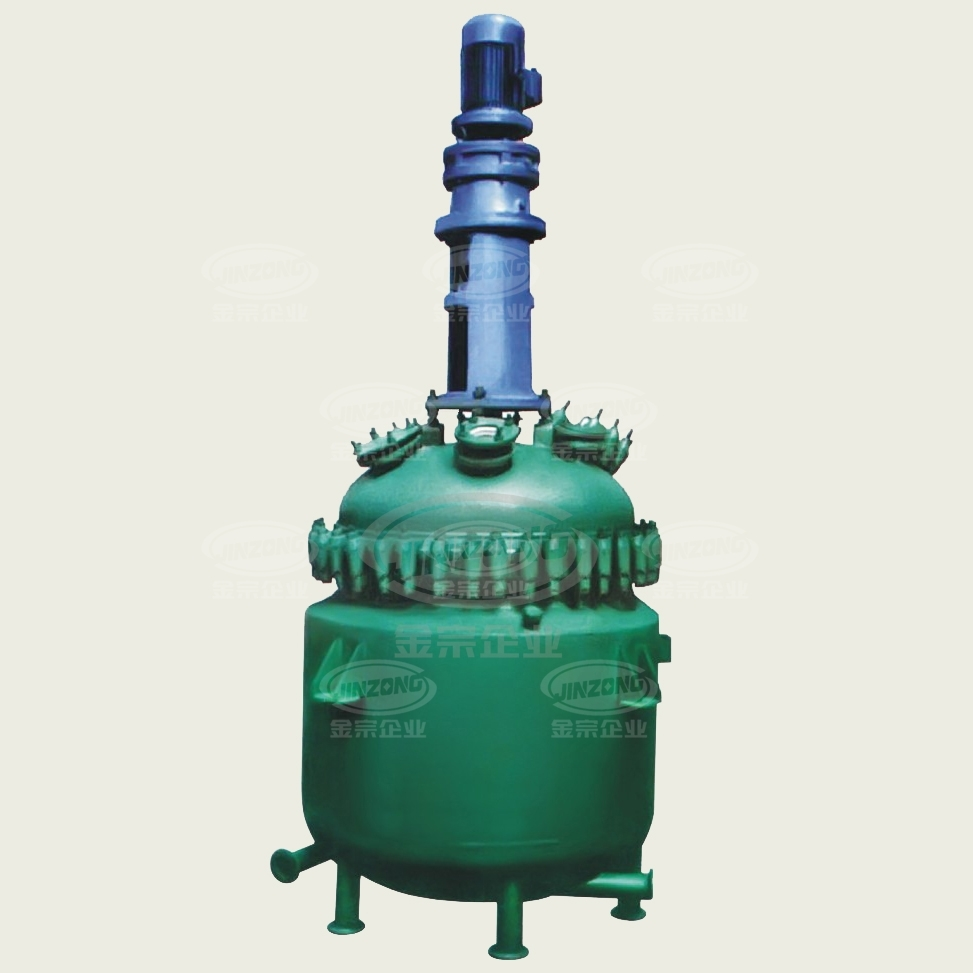

Chemical equipment enamel Glass-Lined Reactor 1

Chemical equipment enamel Glass-Lined Reactor 2

Chemical equipment enamel Glass-Lined Reactor 3

Chemical equipment enamel Glass-Lined Reactor 4

Chemical equipment enamel Glass-Lined Reactor 5

Chemical equipment enamel Glass-Lined Reactor

MOQ:

1pcs

Place of Origin:

Guangdong,China

Payment Terms:

L/C, T/T, Westernunion, Paypal, Cash

Delivery Time:

3-30 working days depends on quantity

Accept Custom Service:

Yes

Certification:

CE / ISO9001:2015 / SGS

Inquiry

Write a Review

Glass-lined reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of chemical, pharmaceutical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research. Corrosion resistance: It resists all kinds of thickness of mediums like inorganic acid, organic acid, organic solvent and weak base etc. But it isn't suitable for strong base, hydrofluoric acid, fluorion medium, phosphoric acid whose temperature is over 180 degree and thickness is over 30% etc.

Introduction:
The enamel/enamelled glass reaction kettle(reaction tank) is a chemical equipment that enamels glass enamels containing high silicon dioxide and is lined on the inner surface of a steel container, and is then evenly bonded to the metal surface by burning at high temperatures. Therefore, the enamel reaction kettle has the dual advantages of glass stability and metal strength, and is an excellent corrosion resistant chemical equipment. The enamel reaction kettle(enamel reaction tank) is widely used for reaction, evaporation, concentration and synthesis in industrial production and scientific research such as chemical industry, medicine, dyes, pesticides, organic synthesis, petroleum, food manufacturing and defense industry. , extraction, polymerization, saponification, mineralization, chlorination, nitrification, etc. to replace expensive stainless steel and non-ferrous metals.
Reactor kettles, also known as reaction tanks, distillation tanks, water bath kettles, neutralization kettles, dissolution kettles, condensation kettles, and many other names are named based on the chemical reactions of their own products.
Our chemical reaction tanks, enamel / glass enameled reaction kettle are all fired with a specific specification electric furnace. Enamel/glass enameled equipment has smooth surface, wear resistance, heat resistance, easy washing, non-polluting materials, low price, and not easy porcelain.
Enamels and enamels are only different in name, and there is actually no essential difference. Specially speaking, enamels are low-temperature enamels(690-780 °C), and enamels are high-temperature enamels(880-1050 °C). The melting temperature of the steel plate is 1300 °C.

Glass-Lined Open-Type Reactors(79)

Chemical equipment enamel Glass-Lined Reactor 6

Standard Glass－Lined Reactor Technical Characteristics
1.Permissimle Working pressure inside the tank is under 0.2Mpa When the agitator shaft stuffing sealde. 2.The Speed of Frame agitator (above 3000L) is no more than 63r/min.
Permissible Working Pressure PN	Tank inside≤0.37MPa; IN jacket≤0.58 MPa
Permissible Working Temperature	Tank inside 0－200℃; IN jacket 0－200℃
Permissible Speed of Agitator	Anchor、Frame63、80 r/min; Impller/Paddle≤125r/ min

Dimension Table(79)mm
Designation		Nominal Volume VN (L)
Designation		50	100	200	300	500	1000	1500	2000	3000	5000(B)	5000(A)	6300
DN		50	600	700	800	900	1200	1300	1300	1600	1600	1750	1750
D0		350	420	490	560	630	840	910	910	1120	1120	1200	1200
D1		600	700	800	900	1000	1300	1450	1450	1750	1750	1900	1900
D2		706	816	930	1106	1156	1488	1679	1679	2029	2045	2180	2180
D3		25	25	25	25	25	30	30	30	36	36(30)	36(30)	36(30)
D4		32×4	32×4	32×4	32×4	32×4	65×5	65×5	65×5	65×5	65×8	80×6	80×6
D5		270	270	300	350	350	400	400	400	450	450	450	450
D6		－	－	－	－	－	1120	1270	1270	1550	1300	1400	1400
H		465	565	775	875	1075	1275	1475	1820	1820	2700	2500	3025
H1		300	300	350	450	400	500	600	600	700	800	700	740
H2		265	300	350	385	410	490	510	510	580	610	640	640
H3		250	250	250	250	270	315	507	507	614	615	550	550
H4		－	－	－	－	－	－	315	315	315	315	350	350
H5		－	－	－	－	－	－	330	330	330	330	370	370
H6		220	220	230	240	270	270	1000	1335	1247	1750	1530	1760
H7		945	945	953	1154	1154	1276	1276	1276	1316	1316	1316	1451
L		2030	2170	2430	2782	3040	3430	3670	4010	4235	5100	4955	5190
h	Turbine	95	100	105	125	165	180	165	175	190	140	140	190
h	Anchor/Frame	45/－	60/－	45/－	85/－	－/85	－/110	－/115	－/125	－/144	240	270	270
Clamp	0.2Mpa	M16/28	M16/28	M16/36	M16/40	M20/32	M20/52	M20/56	M20/56	M24/52	BM24/60	BM24/68	BM24/68
Clamp	0.4 Mpa	M16/28	M16/32	M16/40	M16/48	M20/36	M20/56	M20/70	M20/64	M24/60	BM24/68	BM24/76	BM24/76
Reducer Ttpe		BLD0.8－1－i	BLD0.8－1－i	BLD1.1－1－i	BLD3.0－3－i	BLD3.0－3－i	BLD4－3－i	BLD4－3－i	BLD4－3－i	BLD5.5－3－i	BLD	BLD	BLD
Discharge Valve Specifcation		70/32	70/32	80/40	80/40	80/40	100/50	100/50	100/50	125/80	125/80	125/80	125/80
Motor Power		0.8	0.8	1.1	3	3	4	4	4	5.5	5.5	5.5	7.5(5.5)
Actual Valume		71	128	247	389	588	1250	1720	2160	3715	5730	5930	7250
Heat Transfer Area		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	13.57	12.58	15.6
Total Weight		477	548	706	975	1052	1657	2051	2170	3833	4440	4520	5090

Nozzle Specification and Service(79)mm
Nominal Volume VN (L)	Designation (DN)
Nominal Volume VN (L)	a Hand/Man Hole	b Agitating Hole	c Themometer Hole	d Spare Hole	e Spare Hole	f Spare Hole	g Spare Hole	h Spare Hole	i Discharging Hole	k Inlet(Outet) Hole	m Exhaust Hole	L1、2、3 Inlet(Outet) Hole	J Inlet(Outet) Hole
50	80	65	65	65	65	65	－	－	65	20	M10	－	20
100	80	65	65	65	65	65	－	－	65	20	M10	－	20
200	125	80	65	65	80	65	－	65	80	25	M10	－	25
300	125	100	65	65	80	65	－	65	80	25	M10	－	25
500	150	100	65	65	100	125	－	80	80	32	M10	－	32
1000	300×400	125	100	100	100	125	100	100	100	32	M10	－	32
1500	300×400	125	100	100	125	125	100	125	100	50	M10	40	50
2000	300×400	125	100	100	125	125	100	125	100	50	M10	40	50
3000 5000(B)	300×400	125	100	100	125	125	100	125	125	65	M10	50	65
5000(A)	300×400	125	100	125	125	150	125	150	125	65	M10	65	65
6300	300×400	125	125	125	125	150	125	150	125	65	M10	65	65

Glass-Lined Open-Type Reactors(93)

Chemical equipment enamel Glass-Lined Reactor 7

Standard Glass－Lined Reactor Technical Characteristics
Permissimle Working pressure inside the tank is under 0.2Mpa When the agitator shaft stuffing sealde. The Speed of Frame agitator (≥3000L) is no more than 65r/min
Permissible Working Pressure PN	Tank inside≤0.37MPa; IN jacket≤0.58 MPa
Permissible Working Temperature	Tank inside 0－200℃; IN jacket 0－200℃
Permissible Speed of Agitator	Anchor、Frame63、85 r/min; Impller/Paddle≤125r/ min

Dimension Table(93)mm
Designation		Nominal Volume VN(L)
		50	100	200	300	500	1000	1500	2000	3000	4000	5000(B)	5000(A)	6300
DN		500	600	700	800	900	1200	1300	1300	1600	1600	1600	1750	1750
D0		350	420	490	560	630	840	910	910	1120	1120	1120	1120	1120
D1		600	700	800	900	1000	1300	1450	1450	1750	1750	1750	1900	1900
D2		726	828	930	1027	1152	1485	1679	1679	2029	2045	2045	2180	2180
D3		25	25	25	25	25	30(25)	30(30)	30(30)	36(30)	36	36(30)	36(30)	36(30)
D4		32×4	32×4	32×4	32×4	32×4	65×5	65×5	65×5	65×6	65×8	65×8	80×6	80×6
D5		270	270	300	350	350	400	400	400	450	450	450	450	450
D6		－	－	－	－	－	－	1100	1100	1300	－	1300	1400	1400
H		465	565	775	875	1075	1275	1475	1820	1820	2170	2700	2500	3025
H1		310	310	350	350	400	500	600	600	700	800	800	700	740
H2		265	300	355	385	415	500	530	530	610	610	610	640	640
H3		－	－	－	－	－	－	507	507	614	615	615	550	550
H4		250	250	250	250	270	315	315	315	315	315	315	350	350
H5		220	220	230	240	270	280	330	330	330	330	330	370	370
H6		－	－	－	－	－	－	1000	1335	1247	1050	1750	1530	1760
H7		945	945	953	1154	1200	1276	1276	1276	1316	1316	1316	1316	1451
L		2030	2170	2426	2782	3040	3470	3695	4035	4225	4660	5100	4955	5190
h	Anchor/Frame	45	60	60	85	80	100	110	110	140	－	140	140	190
h	Paddle/lmpller	90	110	130	150	160	210	210	210	240	240	240	270	270
Clamp	0.25Mpa	BM16/16	BM16/28	BM16/36	BM16/40	BM20/36	BM20/52	BM20/56	BM20/56	BM24/60	BM20/60	BM24/60	BM24/68	BM24/68
Clamp	0.6 Mpa	BM16/28	BM16/36	BM16/41	BM16/48	BM20/40	BM20/56	BM20/70	BM20/70	BM24/68	BM24/68	BM24/68	BM24/76	BM24/76
Reducer Ttpe		BLD	BLD	BLD	BLD	BLD	BLD	BLD	BLD	BLD	BLD	BLD	BLD	BLD
Discharge Valve Specifcation		65/32	65/32	80/40	80/40	80/40	100/50	100/50	100/50	125/80	125/80	125/80	125/80	125/80
(kw) Motor Power		0.8	0.8	1.1	3	3	4.0	4.0	4	5.5	5.5	5.5	5.5	7.5(5.5)
(L) Actual Valume		71	128	247	389	588	1250	1720	2160	3715	4730	5730	5930	7250
(m2) Heat Transfer Area		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	11.01	13.57	12.58	15.6
(kg) Total Weight		440	482	707	765	1030	1690	2160	2410	3450	3880	4440	4520	5090

Nozzle Specification and Service (93)mm
Nominal Volume VN(L)	Designation (DN)
Nominal Volume VN(L)	a Hand/Man Hole	b Agitating Hole	c Themometer Hole	d Spare Hole	e Spare Hole	f Spare Hole	g Spare Hole	h Spare Hole	i Discharging Hole	j Inlet(Outet) Hole	m Exhaust Hole	L1、2、3 Inlet(Outet) Hole	k Inlet(Outet) Hole
50	80	65	65	－	65	65	－	－	65	－	M10	20	－
100	80	65	65	－	65	65	－	－	65	－		20	－
200	125	80	65	65	80	65	－	65	80	－		25	－
300	125	100	65	65	80	65	－	65	80	－		25	－
500	150	100	65	80	100	125	－	80	80	－		32	－
1000	300×400	125	100	100	100	125	100	100	100	－		32	－
1500	300×400	125	100	100	125	125	100	125	100	40		40	40
2000	300×400	125	100	100	125	125	100	125	100	50		40	50
4000	300×400	150	100	125	125	125	100	125	125	65		65	65
3000 5000(B)	300×400	150	100	100	125	125	100	125	100	65		50	65
5000(A)	300×400	150	125	125	125	150	125	150	125	65		65	65
6300	300×400	150	125	125	125	150	125	150	125	65		65	65

Glass-Lined Closed-Type Reactors

Chemical equipment enamel Glass-Lined Reactor 8

Dimension Table (mm)
Nominal Volume VN(L)	Designation																			Weight(kg)
Nominal Volume VN(L)	DN	D0	D1	D2	D3	D4	D5	D6	D7	D8	H	H1	H2	H3	H4	H5	H6	h	L
1500	1300	910	1450	1679	30	φ80	65×5	500	400	－	1670	975	－	315	507	700	1070	240	3360	1830
2000	1300	910	1450	1679	30	φ80	65×5	500	400	－	2040	975	－	315	507	700	1415	240	3730	2155
3000	1600	1120	1750	2029	36	φ95	65×6	600	450	1300	2130	1160	－	315	515	780	1710	240	3740	3010
4000	1600	1120	1750	2029	36	φ95	80×6	600	450	－	2705	1160	－	315	515	780	1240	240	4230	3487
5000	1600	1120	1750	2029	36	φ95	80×6	600	450	1300	3120	1160	－	315	515	780	1745	240	4730	4210
5000	1750	1200	1900	2200	36	φ95	80×6	600	450	1400	2770	1200	420	350	550	886	1656	270	4380	4060
6300	1750	1200	1900	2200	36	φ95	80×6	600	450	1400	3280	1220	900	350	550	885	1785	270	5040	4950
8000	2000	1400	2200	2502	36	φ95	95×8	800	500	1600	3250	1360	690	400	510	960	1860	330	5180	6455
10000	2200	1640	2400	2734	36	φ110	95×8	800	550	1700	3460	1460	900	470	660	1020	1920	360	7058	8775
10000	2400	1680	2600	2940	36	φ110	95×8	800/1450	550	1800	3080	1500	640	470	550	1010	1610	360	5910	9931
12500	2400	1680	2600	2940	36	φ140	95×8	800/1450	550	1800	3575	1500	900	470	550	1040	1940	360	6400	11950
15000	2400	1220	2600	2940	36	φ125	95×8	900/1600	550	2000	4100	1400	1500	470	550	1100	1940	360	7850	11335
20000	2600	1220	2800	3181	36	φ140	95×8	900/1750	550	2000	4640	1530	1300	470	550	1000	2200	300	9100	14500
30000	2800	1220	3000	3380	36	φ140	95×8	1750	550	2200	5510	1600	1300	470	550	1000	2200	360	9960	21950
40000	3200	1360	3400	－	24	φ160	110×12	1900	810	2250	6000	－	1500	470	550	1220	2720	400	10305	28320
50000	3400	1500	3600	4378	36	φ180	125×12	2000	940	－	6765	2200	1700	470	550	1250	2950	400	10565	34175

Nozzle Specification and Service (mm)
Nominal Volume VN(L)	Designation
Nominal Volume VN(L)	DN	a Agitating Hole	b Spare Hole	c Spare Hole	d Spare Hole	e Spare Hole	f Discharging Hole	g Inlet(Outet) Hole	h Spare Hole	m Man Hole	s Lamp Hole	T1 Temperature MeasureHole	T2 Spare Hole	p1-2 LiquidIniet (Outet)Hole	k1-3 Iniet (Outet)Hole	i Exhaust Hole
1500	1300	125	100	125	125	100	100	50	－	－	125	100	－	40	50	M10
2000	1300	125	100	125	100	125	100	50	－	－	125	100	－	40	50
3000	1600	150	100	125	100	125	125	65	－	300×400	125	100	－	65	65
4000	1600	150	100	200	100	125	125	65	－	300×400	125	100	－	65	65
5000	1600	150	100	125	100	125	125	65	－	300×400	125	100	－	65	65
5000	1750	150	125	150	125	150	125	65	－	300×400	125	125	－	65	65
6300	1750	150	125	150	125	150	125	65	－	300×400	125	125	－	65	65
8000	2000	150	150	150	150	150	125	65	－	300×400	125	150	125	80	65
10000	2200	200	150	150	150	125	150	80	125	300×400	125	200	125	80	80
10000	2400	200	150	150	125	125	150	80	125	300×400	125	200	125	80	80
12500	2400	250	150	150	150	125	150	80	125	300×400	125	200	125	80	80
15000	2400	200	150	150	150	150	150	100	200	300×400	125	200	125	100	100
20000	2600	250	150	150	150	150	150	100	200	450	125	200	125	100	100
30000	2800	250	150	150	150	150	150	100	－	450	125	200	125	100	100	M10
40000	3200	250	150	150	150	150	150	100	－	300×400	125	250	－	100	100
50000	3400	250	150	150	250	150	200	100	－	300×400	125	250	150	100	100
