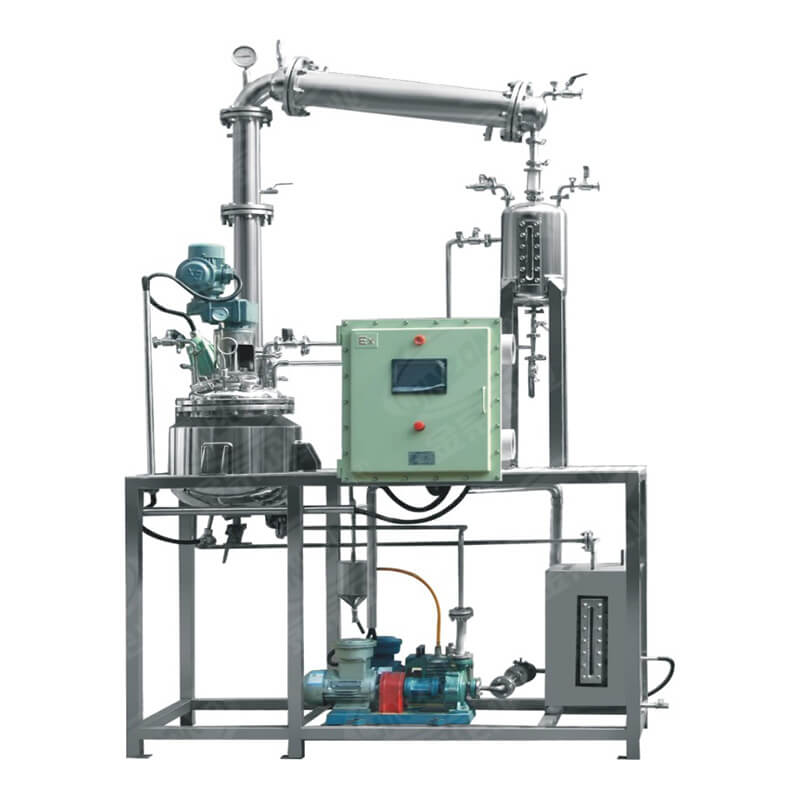

Stainless steel JZ Series Pilot Resin Reactor 2

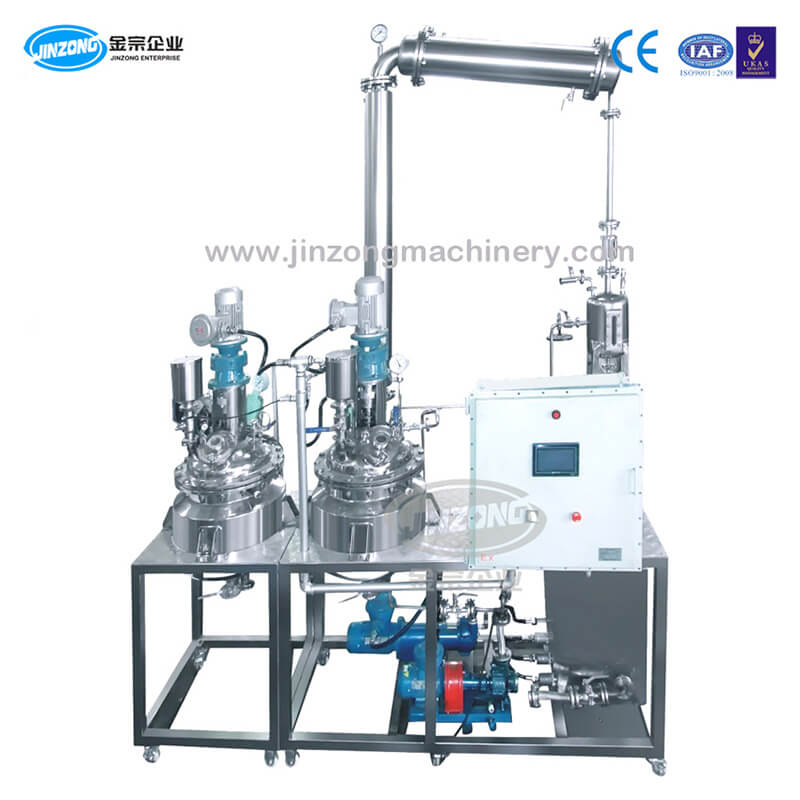

Stainless steel JZ Series Pilot Resin Reactor 3

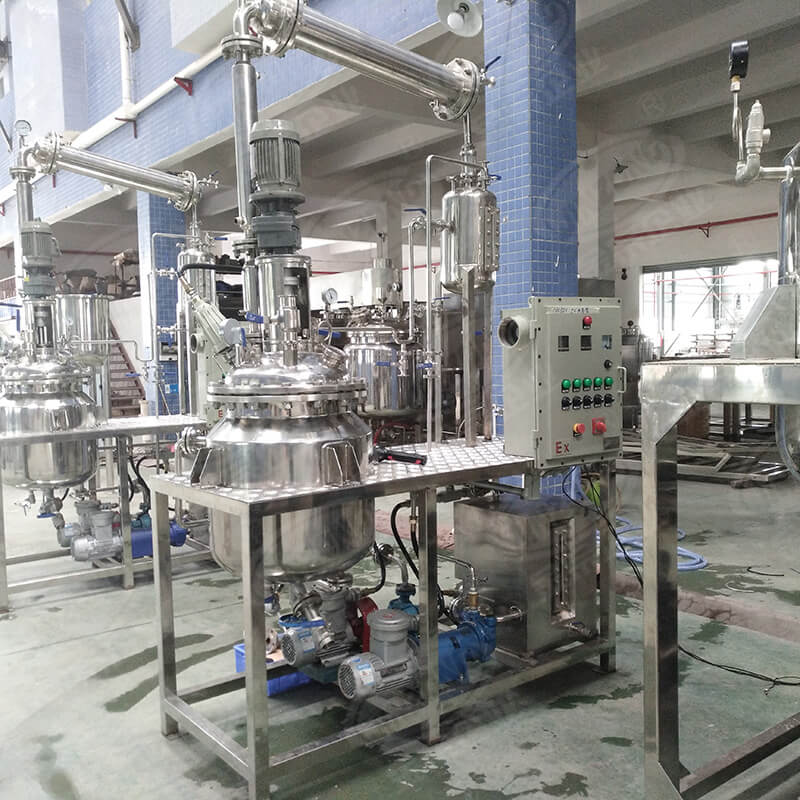

Stainless steel JZ Series Pilot Resin Reactor 4

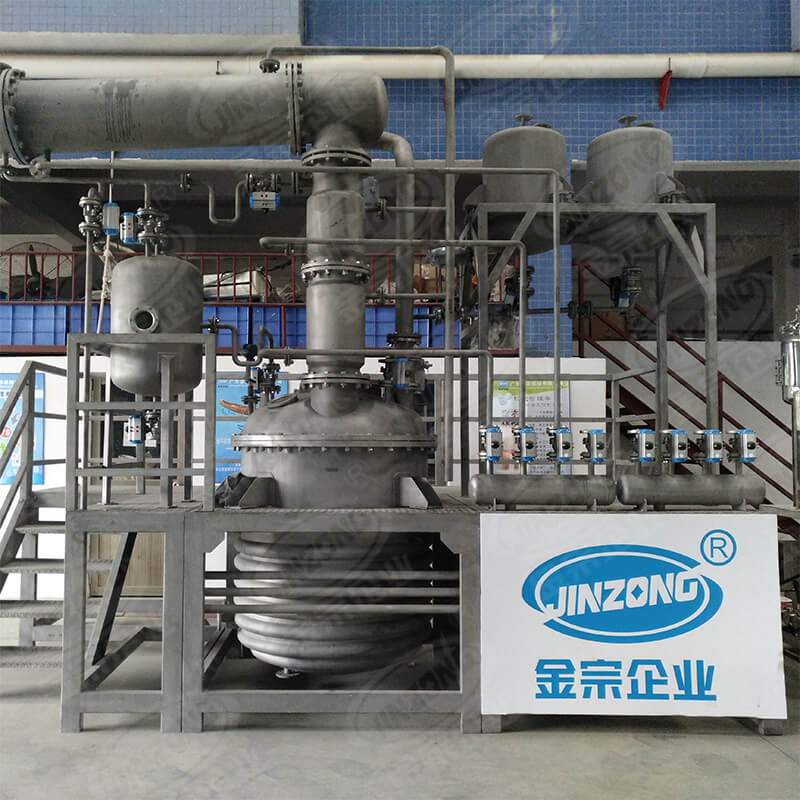

Stainless steel JZ Series Pilot Resin Reactor 5

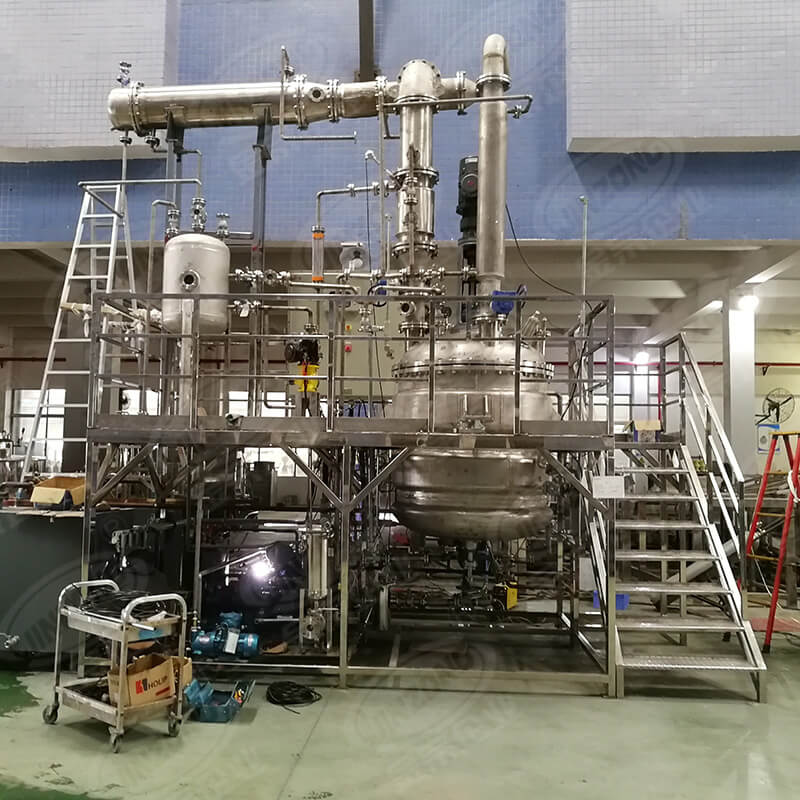

Stainless steel JZ Series Pilot Resin Reactor 6
Stainless steel JZ Series Pilot Resin Reactor 1
Stainless steel JZ Series Pilot Resin Reactor 2
Stainless steel JZ Series Pilot Resin Reactor 3
Stainless steel JZ Series Pilot Resin Reactor 4
Stainless steel JZ Series Pilot Resin Reactor 5
Stainless steel JZ Series Pilot Resin Reactor 6

Stainless steel JZ Series Pilot Resin Reactor

    oops...!

    no product data.

    Go to homepage

    *Description:

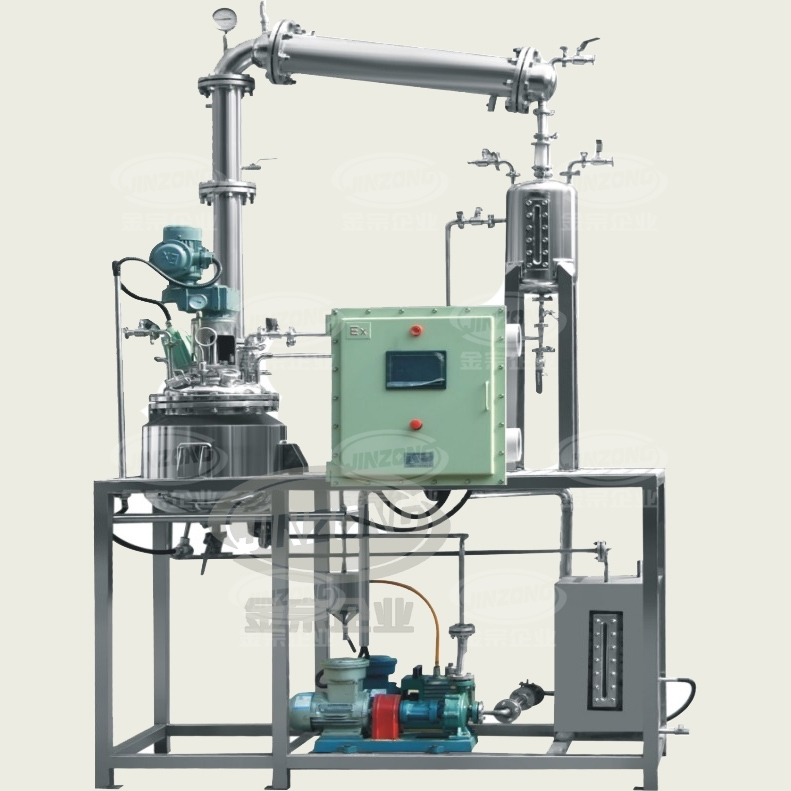

    This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform.
    1.Capacity 5L-200L.
    2.Including jacketed reactor, condenser, storage tank, conduction oil preheating tank, hot oil pump, pipelines, valves, temperature gauge PT100,pressure gauge, platform etc.
    3.Made of SUS316L and SUS304.
    4.Heating and cooling by jacket or heated by jacket and cooling by inner pipe coil

    Stainless steel JZ Series Pilot Resin Reactor 7

    *Advantages:

    For more than 20 years Guangzhou Jinzong Machinery Co., Ltd. has developed cost effective solutions and innovative processes for the production of high quality synthetic resins and polymer emulsions for Asia , Middle East, and South America.
    Jinzong Machinery has in-house capabilities to both upgrade existing synthetic resin and polymer emulsion manufacturing plants and design new ones with state of the art process control systems. offers a full range of engineering services to the resin, paint, plastic and printing ink industries including:

    Feasibility studies;

    Process control system software upgrades;

    Existing facility improvements;

    Turnkey plants;

    Stainless steel JZ Series Pilot Resin Reactor 8

    Model Selection Reference of Reaction Kettle


    CompositionInstructions
    Specification (L)5-200
    Design Pressure (Mpa)Atmospheric Pressure or under pressure
    MaterialCarbon steel, stainless steel, enamel, graphite
    Heating FormsElectrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.
    Cooling FormsRefrigeration medium in the internal pipe jacket
    Blending PowerModel selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.
    Stirring blade FormsAnchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
    SealMechanical seal or stuff packing seal
    Inner Surface TreatmentPolished or no polished
    Discharge ValveFlanged ball valve, open downward discharge valve and others
    Technological Pipe HoleManhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,
    Technical Specifications


    SpecificationInstallationJZ/MJZ/ASJZ/AF
    20LSmall integrated cabinetTemperature control, manual valves, manual button control cabinetAutomatic temperature control, touch screen operation, PLC control system, manual feedingTouch screen operation, PLC control system, automatic temperature proportional control, automatic feeding measurement, the proportion of reaction drops system, optional online monitoring system
    30L
    50L
    100LSmall platform operation
    200L
    500L
    1000-3000LCustomize the Platform or site installation
    Actual Case

    Stainless steel JZ Series Pilot Resin Reactor 9

    1000L pilot complete polyester polyol reactor

    Stainless steel JZ Series Pilot Resin Reactor 10

    50L pilot complete resin plant

    Stainless steel JZ Series Pilot Resin Reactor 11

    1000L pilot complete Alkyd resin reactor

    Stainless steel JZ Series Pilot Resin Reactor 12

    100L pilot complete resin plant

    Certification


    Stainless steel JZ Series Pilot Resin Reactor 13
    Stainless steel JZ Series Pilot Resin Reactor 14
    Stainless steel JZ Series Pilot Resin Reactor 15


    *After-sales service:
    1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
    2> Provide professional after-sales service engineers to  abroad  installation and debugging.

    *ONE-STOP SERVICES
    According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services

    *Providing technical support in the aspects of field commissioning and running of the products sold.
    *Field failure diagnosis and maintenance.
    *Providing spare parts and fittings, maintenance and servicing plans.
    *Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
    Stainless steel JZ Series Pilot Resin Reactor 16*About us:

    *Our strength
    1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
    2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate.  We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
    3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
    4.Have a Professional after-sales service engineering team.
    5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year

    Stainless steel JZ Series Pilot Resin Reactor 17
