Model NO. | JGZ | Filling Principle | Atmospheric Pressure |
Packaging Container Lifting Structure | Pneumatic Lifting | Structure | Linear |
Packaging | Bottle | Packaging Material | Liquid |
Power | 1500W | Application | Liquid,Cream,Cosmetic Products |
Filling Speed | 1800-2400bottles/Hour | Dimensions of Filling Machine (mm) | 1110X265X350 |
Length of Conveyor(mm) | 2000-8000mm | Trademark | JINZONG MACHINE |
Origin | China |

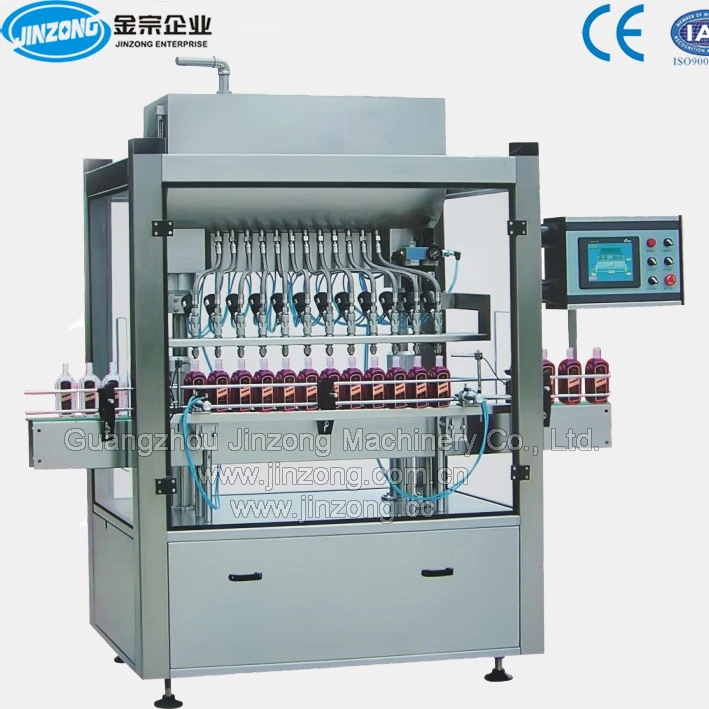

JGZ series Linear Automatic Filling Machine is used for automatically batch filling for detergent, oil, beverage and drugs. It adopts linear intermittent bottle feeding filling and is applicable for packing bottles of different materials and shapes such as round and irregular shaped bottles. It can be configured with bottle loading machine, cap-sorting/feeding machine, cap tightening machine, coding conveyor and automatical weight detector etc for use as per users' specific demand.
Features:
A) Conform to the sanitary standards: Contact material: 316L, stainless steel as appearance material and removable cylinder which can be disassembled and assembled rapidly for washing etc;
B) Advanced filling mechanism: Rapid and automatical adjustment of filling volume, anti-drip valve mouth and adjustable drag chain conveyor etc;
C) Advanced control system: Automatical filling, volume setting and cleaning programs as well as double automatical filling program.
Filling Range (ml) | 200-1000(1000-2000) |
Production Capacity (bottle/min.) | 40-50(Filling Volume 1000ml), 50-70(Filling Volume 500ml), 70-90(Filling Volume 200ml) |
Filling Accuracy (ml) | 10(Filling Volume 1000ml), 8(Filling Volume 500ml), 5(Filling Volume 200ml) |
Air Consumption (m/min.) | 1.2 |
Power Supply | 380V 50Hz 1.5KW |
Dimensions of Filling Machine (mm) | 1110x265x350 |
Dimensions of Conveyor (mm) | 8000x300x800 |
Automatic filling and packaging produciton line
The automatic filling and packaging production line is designed and manufactured according to customer's requirements.
Please send us answers to followng questions, so that we can make a solution to you:
1. What kinds of product you plan to produce?
2. What's the filling range?
3. What's the filling capacity you need?
4. What's the size and shape of the filling bottles, send us the pictures of filling bttles would be much appreciated.
5. What's the size and shape of the bottles' cap?
6. What's the size of label?
Photos of the filling machines:
