Automatic Feeding, Discharge Homogenizing Emulsifying Machine
| Model NO. | JRKB | Customized | Customized |
| Condition | Used | Warranty | 1 Year |
| Capacity | 10-1000L | Material | Full Stainless Steel |
| Trademark | Jinzong Machine | Transport Package | Wooden Case |
| Origin | Guangdong |
Specifications
1.Vacuum Emulsifier
2.Automatic feed,discharge,hydraulic lift,tilt system

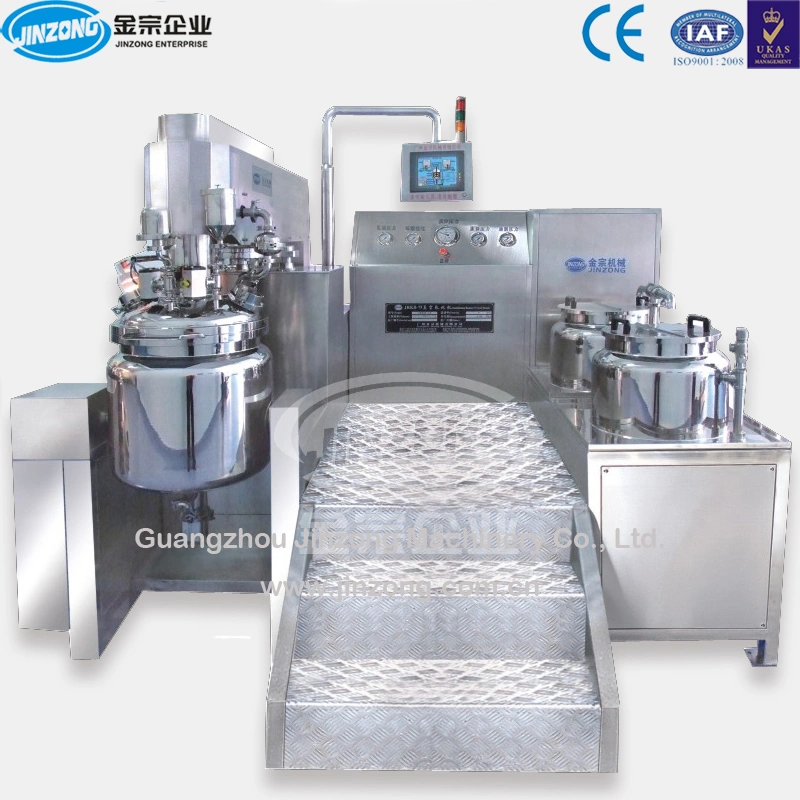

Pharmaceutical Machine YGA series Vacuum Unguent Machine/Pharmaceutical ointment emulisifying machine is a new-generation intelligent emulsifying machine independently developed by Jinzong. It is automatically controlled by PLC and the system can freely switch among several control modes, such as HMI mode and batch operation with remote central control room. For industries with special requirements, it can trully realize remote full-automatic operation without human interference on the field, thus realizing safe, economical and efficient production.
Its automatical feeding, discharging and cleaning system, hydraulic pressure lifting and toppling systems as well as overall outlook design all conform to GMP and FDA specifications. YGA models prove to be the first choice for cosmetic, pharmaceutical and chemical industries to manufacture high-grade products like creams and ointments.
| Model# | Volume of Main Boiler (L) | Volume of Pretreament Boilers (L) | Dimensions (LxWxH) | Total Power (KW) | Net Weight (KG) |
| 50 | 100 | 45/65 | 2700x2500x2000-2700 | 9 | 1700 |
| 100 | 130 | 70/100 | 2900x2500x2000-2800 | 10 | 1900 |
| 200 | 260 | 120/190 | 3200x3000x2400-3350 | 13 | 2400 |
| 300 | 375 | 150/260 | 3350x3100x2550-3650 | 17 | 2700 |
| 500 | 620 | 300/460 | 3800x3400x2850-4100 | 25 | 3600 |
| 1000 | 1250 | 620/900 | 4150x4150x3700-5200 | 32 | 5400 |
