Active Pharmaceutical Ingredients Chemical Synthesis Reactor for Lab Pilot Production
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Customized | Customized | Condition | New |
| Warranty | 1 Year | After-sales Service | One Year Warranty, Lifelong Maintenance |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8419899090 |

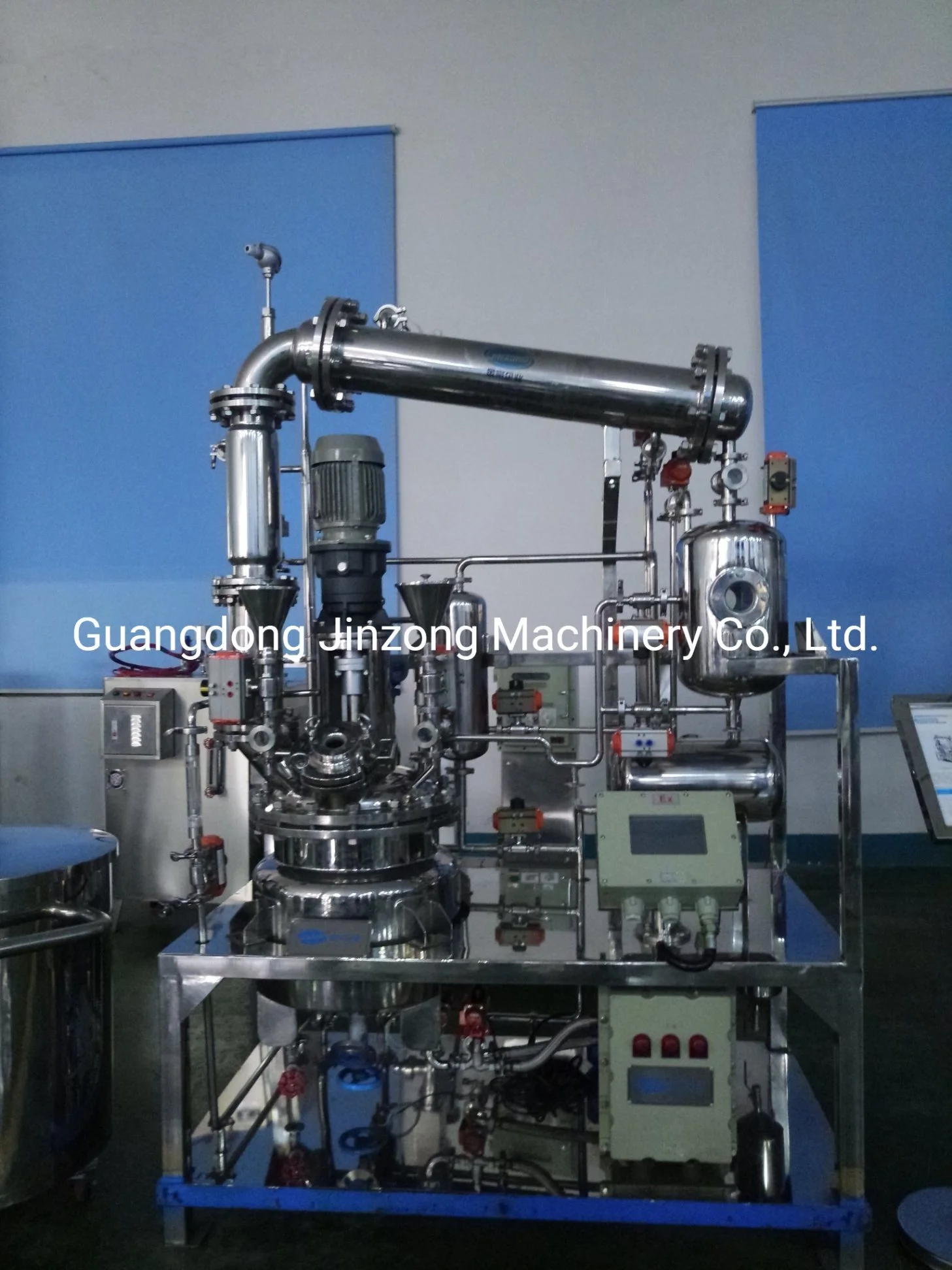

Active Pharmaceutical Ingredients Chemical Synthesis Reactor for Lab Pilot Production
This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform
1.Capacity 5L-200L.
2.Including jacketed reactor,condenser,storage tank,conduction oil preheating tank,hot oil pump,pipelines,valves,temperature gauge PT100,pressure gauge,platform etc.
3.Made of SUS316L and SUS304.
4.Heating and cooling by jacket or heated by jacket and cooling by inner pipe coil
This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform
1.Capacity 5L-200L.
2.Including jacketed reactor,condenser,storage tank,conduction oil preheating tank,hot oil pump,pipelines,valves,temperature gauge PT100,pressure gauge,platform etc.
3.Made of SUS316L and SUS304.
4.Heating and cooling by jacket or heated by jacket and cooling by inner pipe coil
*Jinzong Machinery provides a full range of testing and pilot unit services for :
Reformulation of products
Development of new resins and polymer emulsions
Optimization of reactor design
Optimization of process and product quality
Jinzong Machinery also supplies skid mounted pilot units for installation at the client's site. The custom designed product reactors range in size from 10 liters to 1000 liters.
Product Detailed Pictures
*Model selection reference of reaction kettle
| Composition | Instructions |
| Specification (L) | 5-200 |
| Design Pressure (Mpa) | Atmospheric Pressure or under pressure |
| Material | Carbon steel, stainless steel, enamel, graphite |
| Heating Forms | Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc. |
| Cooling Forms | Refrigeration medium in the internal pipe jacket |
| Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
| Stirring blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type |
| Seal | Mechanical seal or stuff packing seal |
| Inner Surface Treatment | Polished or no polished |
| Discharge Valve | Flanged ball valve, open downward discharge valve and others |
| Technological Pipe Hole | Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2, |
Model Parameter | Reactor Volume(L) | Mixing speed (rpm) | Heat exchange surface (m2) | Separator(L) | Total power(including heating power)(KW) |
| JZ-10 | 10 | 0-84 | 0.5 | 5 | 6.37 |
| JZ-30 | 30 | 0.5 | 12 | 12.37 | |
| JZ-50 | 50 | 1 | 15 | 18.55 | |
| JZ-100 | 100 | 2 | 25 | 19.65 | |
| JZ-150 | 150 | 2.5 | 30 | 26.2 | |
| JZ-200 | 200 | 3 | 50 | 33.5 | |
| Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform. 1. Heating and cooling method: 1. Heating and cooling by jacket. 2. Heating by jacket and cooling by inner pipe coil. 2. Type of electrical device: 1. Ex-proof type. 2. Normal type 3. Electric cabinet control mode: 1. Touch-screen control. 2. Button control | |||||
Cases
Chemical Pilot Reactor
1.Capacity 5L-200L.
2.Including jacketed reactor,condenser,storage tank,conduction oil preheating tank,hot oil pump,pipelines,valves,temperature gauge PT100,pressure gauge,platform etc.
3.Made of SUS316L and SUS304.
4.Heating and cooling by jacket or heated by jacket and cooling by inner pipe coil
Jinzong Machinery provides a full range of testing and pilot unit services for :
Reformulation of products
Development of new resins and polymer emulsions
Optimization of reactor design
Optimization of process and product quality
Jinzong Machinery also supplies skid mounted pilot units for installation at the client's site. The custom designed product reactors range in size from 10 liters to 1000 liters.
Model selection reference of reaction kettle
Composition | Instructions |
| Specification (L) | 5-200 |
| Design Pressure (Mpa) | Atmospheric Pressure or under pressure |
| Material | Carbon steel, stainless steel, enamel, graphite |
| Heating Forms | Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc. |
| Cooling Forms | Refrigeration medium in the internal pipe jacket |
| Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
| Stirring blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type |
| Seal | Mechanical seal or stuff packing seal |
| Inner Surface Treatment | Polished or no polished |
| Discharge Valve | Flanged ball valve, open downward discharge valve and others |
| Technological Pipe Hole | Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2, |
Technical Parameter
| Model Parameter | Reactor Volume(L) | Mixing speed (rpm) | Heat exchange surface (m2) | Separator(L) | Total power(including heating power)(KW) |
| JZ-10 | 10 | 0-84 | 0.5 | 5 | 6.37 |
| JZ-30 | 30 | 0.5 | 12 | 12.37 | |
| JZ-50 | 50 | 1 | 15 | 18.55 | |
| JZ-100 | 100 | 2 | 25 | 19.65 | |
| JZ-150 | 150 | 2.5 | 30 | 26.2 | |
| JZ-200 | 200 | 3 | 50 | 33.5 | |
| Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform. 1. Heating and cooling method: 1. Heating and cooling by jacket. 2. Heating by jacket and cooling by inner pipe coil. 2. Type of electrical device: 1. Ex-proof type. 2. Normal type 3. Electric cabinet control mode: 1. Touch-screen control. 2. Button control | |||||
