50L-2000L Vacuum Pilot Industrial Reactor with Condenser Heating System Customized
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model NO. | JZ-YFA50L | Customized | Customized |
| Condition | New | Warranty | >2 Year |
| After-sales Service | One Year Warranty, Lifelong Maintenance | Material | Stainless Steel 304/316L |
| Trademark | Jinzong Machinery | Transport Package | Qualified Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8419899090 |
We are a leading manufacturer of Food and Pharmaceutical Equipments since 1999, covering wide range of products, with strong production and design strength, we can provide you with turnkey projects such as engineering design, equipment selection guidance, equipment customized processing and equipment installation of pharmaceutical projects.
Production Description
50L-10000L Vacuum Pilot Industrial Reactor with Condenser Heating System Customized
Reactor is the main machine for making pharmaceutical preparation, such as ointment, gel, eye drops, eye ointment, cough medicine water, sugar / salt solution, suppository, coating, preservative, lipid emulsion, etc.
1. Applications:
1. Solid dosage form: powder, granule (granule), pill, tablet, glue.
2. Semi solid dosage form: internal plaster, external plaster, paste.
3. Liquid dosage form: decoction, mixture (including oral liquid), syrup, liquor, dew, injection.
2. Model Selection Reference of Reactor with jacket electric heating
3. Techincal Parameters Of Reactor with jacket electric heating
4. Pictures of Reactor with jacket electric heating
Agitator types
5. Packaging& Shipping
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
6. Our Service
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
7. Company Information
We are a professional manufacturer of food& pharmaceutical machinery and equipment more than 17 years .
Product lines range from:
1> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
8. Why Choose Jinzong Machiney?
1. More than 17 years in Food and Pharmaceutical industry
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Good reputation in industry.
4. Have a professional after-sales service engineering team
5. Large scale and strong strength
9. Certificates:
10. Customers:
Production Description
50L-10000L Vacuum Pilot Industrial Reactor with Condenser Heating System Customized
Reactor is the main machine for making pharmaceutical preparation, such as ointment, gel, eye drops, eye ointment, cough medicine water, sugar / salt solution, suppository, coating, preservative, lipid emulsion, etc.
1. Applications:
1. Solid dosage form: powder, granule (granule), pill, tablet, glue.
2. Semi solid dosage form: internal plaster, external plaster, paste.
3. Liquid dosage form: decoction, mixture (including oral liquid), syrup, liquor, dew, injection.
2. Model Selection Reference of Reactor with jacket electric heating
| Specification(L) | 10~10000L |
| Design Pressure(Mpa) | Atmospheric or under pressure |
| Material | Carbon steel, stainless steel, enamel, graphite |
| Heating Forms | Electrical heating with medium in jacket, external half-pipe coil steam heating, external half-pipe conduction oil heating, hot water infrared heating. |
| Cooling Forms | Refrigeration medium in the internal pipe coil or jacket |
| Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
| Stirring Blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type. |
| Seal | Mechanical seal or stuff packing seal |
| Inner Surface Treatment | polished or no polished |
| Discharge Valve | Flanged ball valve open downward discharge valve and others |
| Technological Pipe Hole | Manhole, sight glass, distillation hole, feed material hole, pressure gauge hole, temp. hole, etc. According to the process requirements increase or decrease |
3. Techincal Parameters Of Reactor with jacket electric heating
| Type | 50L | 100L | 200L | 300L | 500L | 1000L | 1500L | 2000L | 3000L | 4000L | 5000L |
| Cylinder Size(mm) | 450×500 | 450×500 | 600×700 | 750×750 | 900×800 | 1200×1000 | 1300×1200 | 1400×1500 | 1600×1500 | 1700×1800 | 1800×2000 |
| Actual Capacity(L) | 61 | 150 | 253 | 396 | 699 | 1393 | 2166 | 3000 | 4066 | 5400 | 6600 |
| Jacket Capacity(L) | 65 | 120 | 200 | 250 | 290 | 560 | 617 | 750 | 1015 | 1226 | 1440 |
| Heating Area() | 0.78 | 1.36 | 1.9 | 2.41 | 2.7 | 4.5 | 5.9 | 7 | 9 | 11 | 12.8 |
| Motor Power(kw) | 0.55 | 1.1 | 1.5 | 3 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 |
| Rotating Speed(r/min) | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 63 | 63 | 63 |
| Discharg ing Valve | DN25 | DN25 | DN40 | DN40 | DN50 | DN50 | DN50 | DN65 | DN65 | DN80 | DN80 |

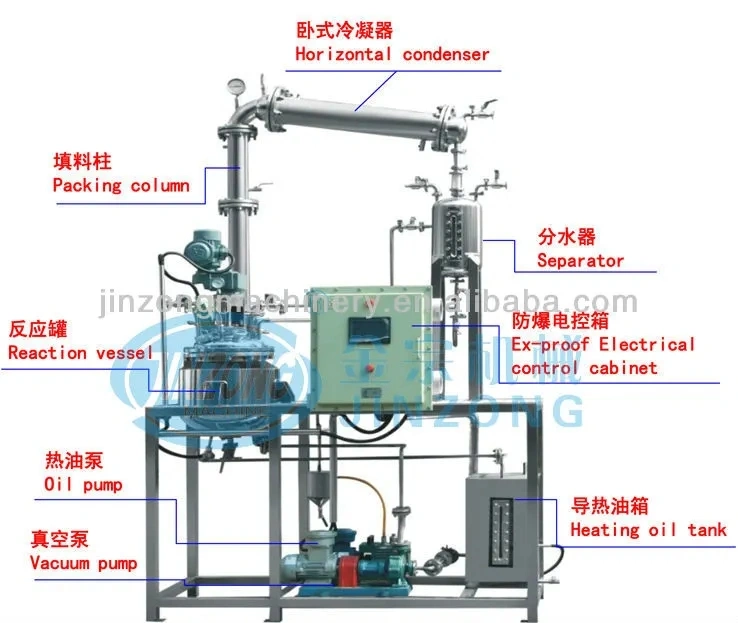

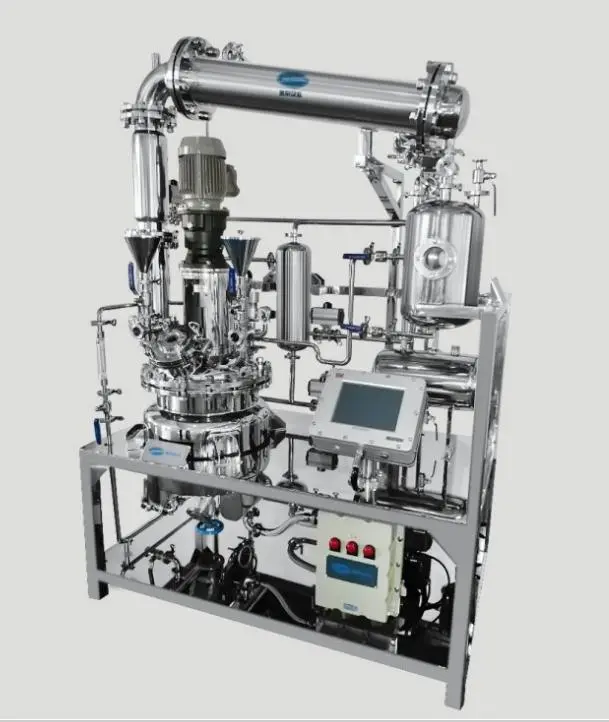

4. Pictures of Reactor with jacket electric heating

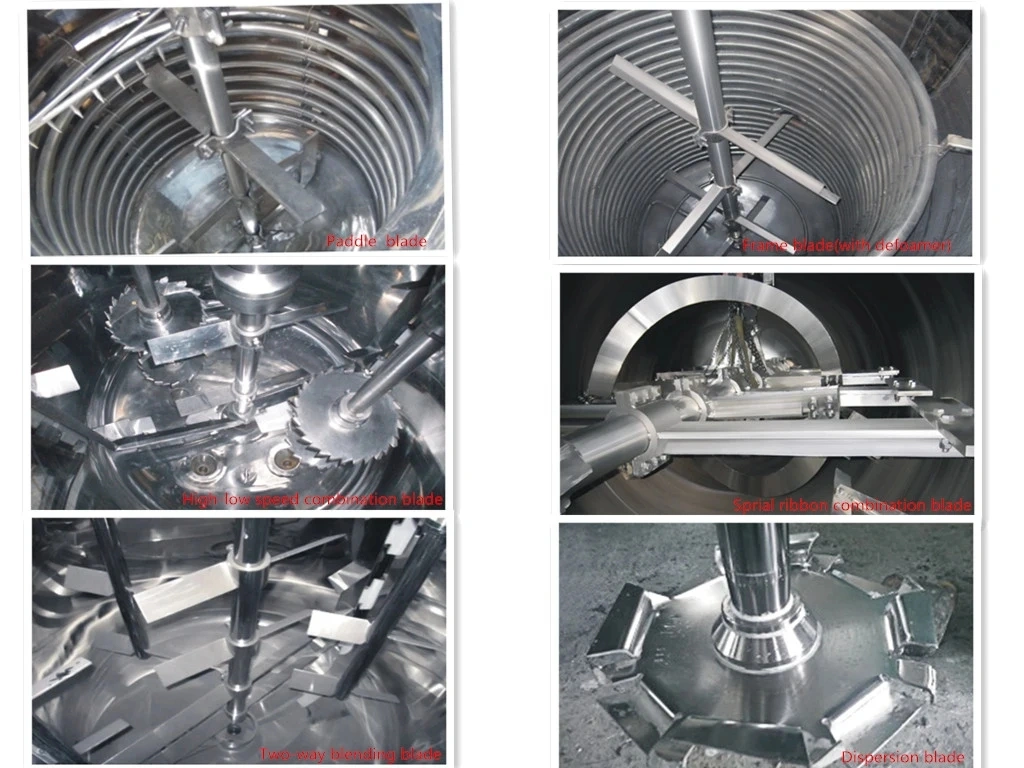

Agitator types

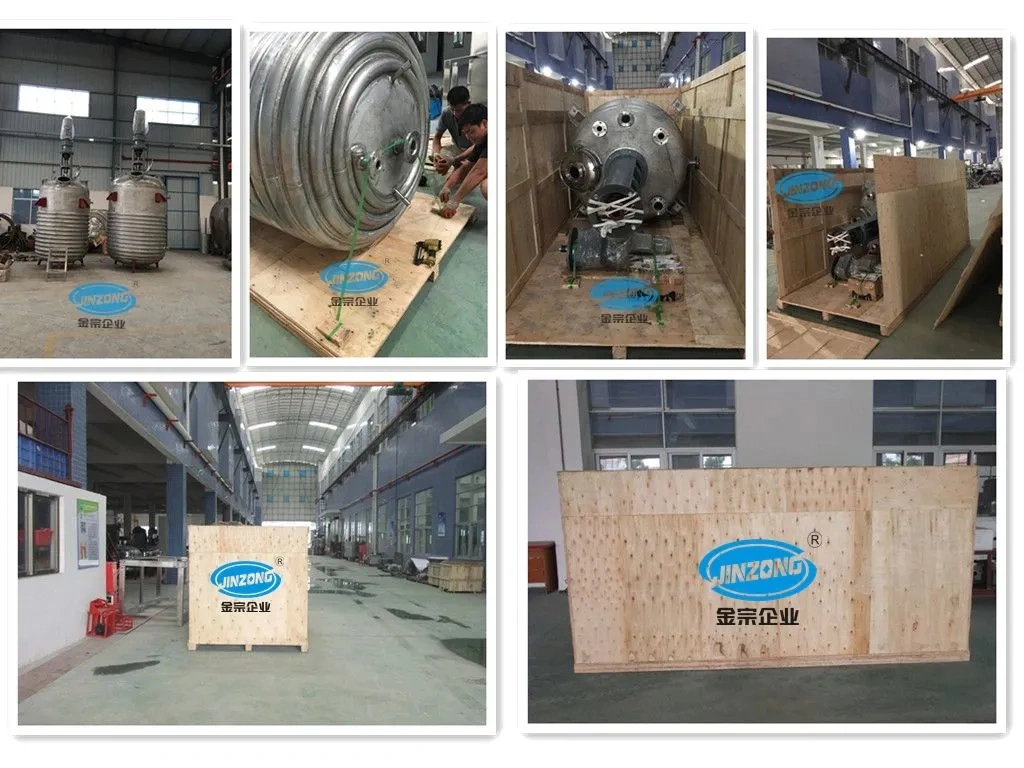

5. Packaging& Shipping
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
6. Our ServicePre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.

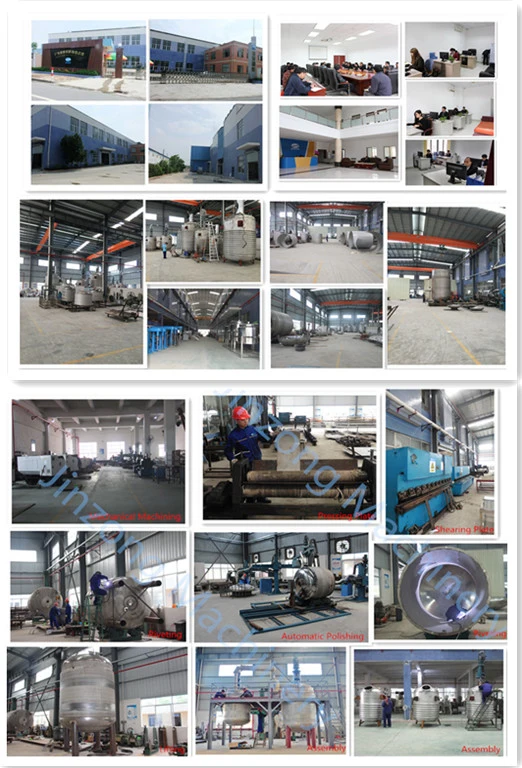

7. Company Information
We are a professional manufacturer of food& pharmaceutical machinery and equipment more than 17 years .
Product lines range from:
1> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
8. Why Choose Jinzong Machiney?
1. More than 17 years in Food and Pharmaceutical industry
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Good reputation in industry.
4. Have a professional after-sales service engineering team
5. Large scale and strong strength

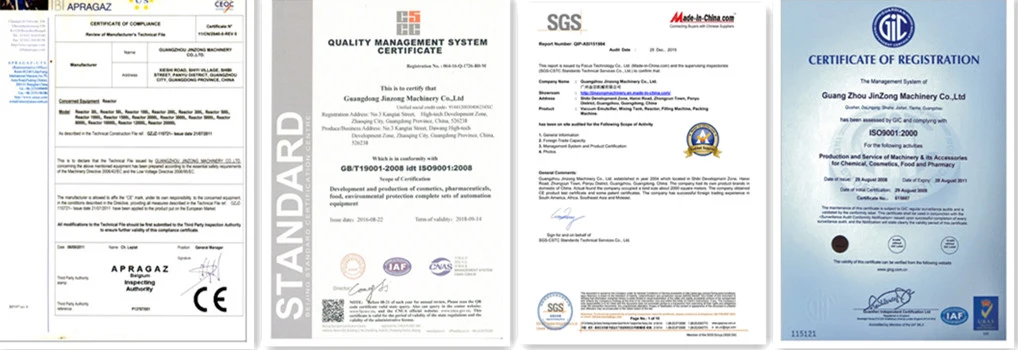

9. Certificates:
10. Customers:
