100L Laboratory Homogenizer Mixer for Ointment Emulsifier Tiltable
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Customized | Customized | Condition | New |
| Warranty | 1 Year | After-sales Service | One Year Warranty, Lifelong Maintenance |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8422303090 |
100L Laboratory Homogenizer Mixer for Ointment Emulsifier Tiltable
Emulsifying machines come in a variety of forms, such as rotor-stator high shear mixers, in-tank high speed agitators or high-pressure systems. Emulsions are complex liquid structures that are prone to separation. Each type of equipment is designed to mix and shear fluids to reduce the droplet size of a discontinuous phase to prevent separation. The essence of emulsifying fluids is to force an oil phase, or some non water-soluble fluid, to stay in suspension by getting the droplets small enough to not separate out. In many cases, surfactants are needed to help the resulting mixture hold over long periods of time, but certainly emulsifying equipment is essential to the process.

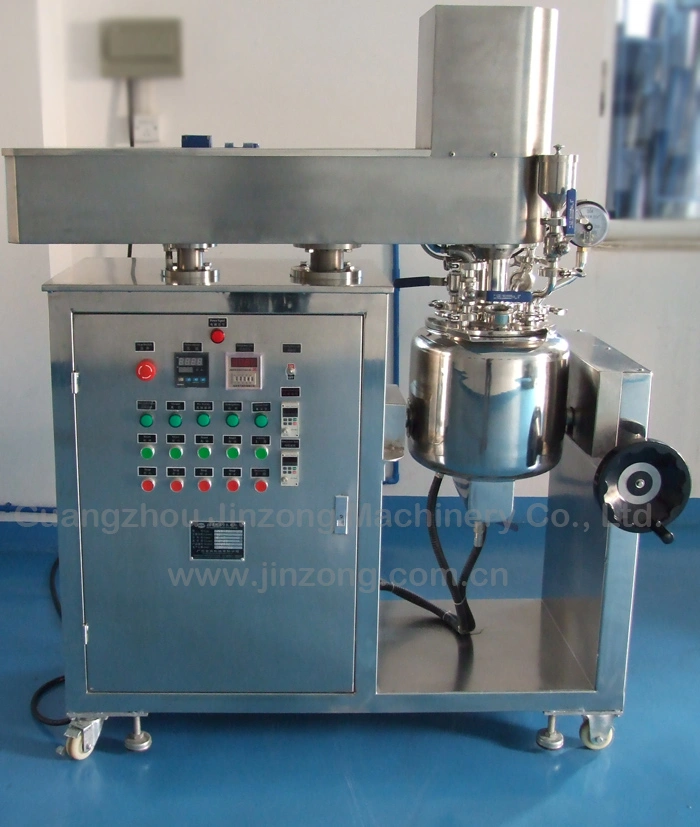

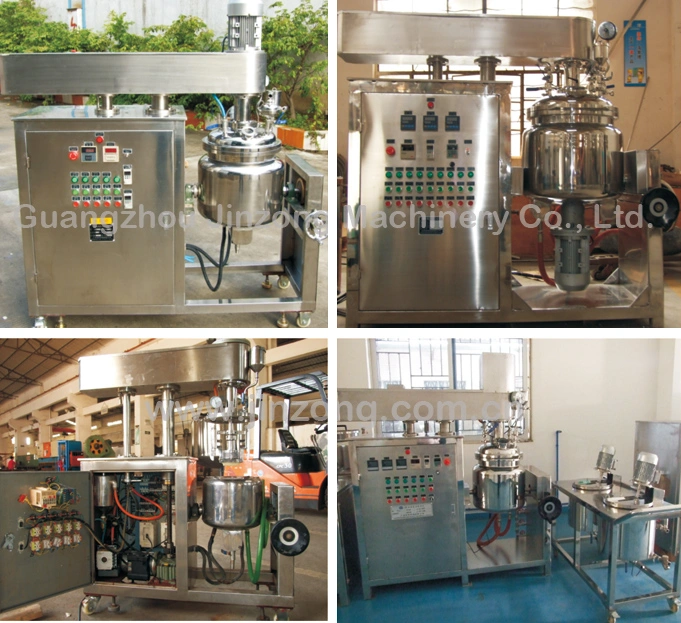

Cosmetic/Pharmaceutical Processing Machine JRX series compact homogenizing emulsifying machine is suitable for small & medium-type or templet-making of diverse ointment and honey products, and is a necessary laboratory equipment for cosmetic and pharmaceutical enterprises. This machine is fully operational and has superior quality, available with hydraulic pressure lifting type and electrical lifting type for your options.
Standard type is not provided with water and oil boilers, but can be separately equipped with portable boiler according to your requirements.
JRX series is designed specifically for process developers, designed with desktop manual hand-cranking lifting mechanism and equipped with patented multifunctional homogenizer, easy operation and serving several purposes.

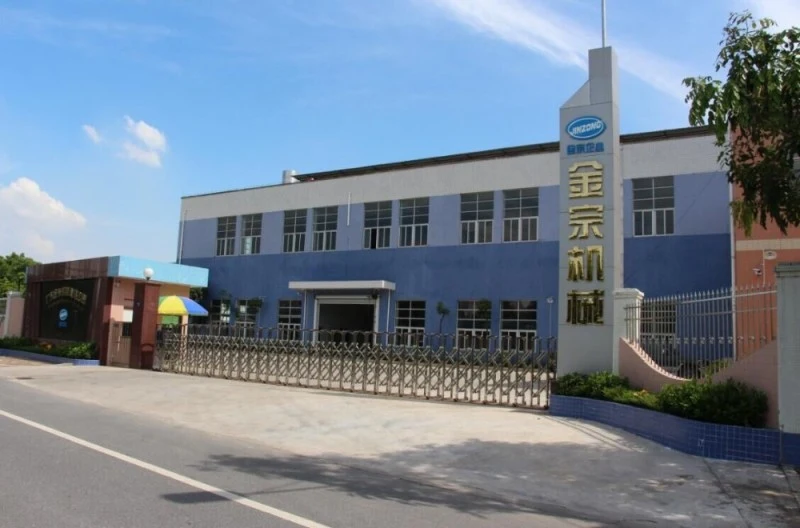

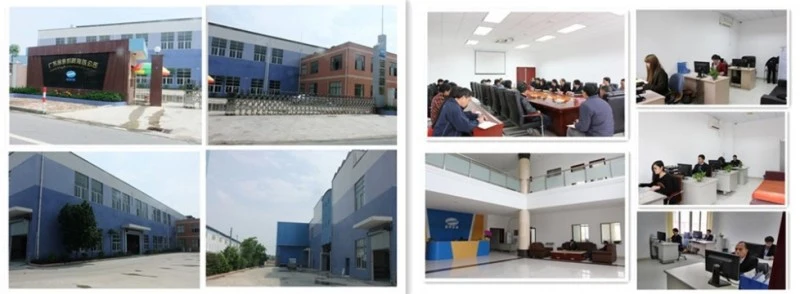

Jinzong Company Information:
Emulsifying machines come in a variety of forms, such as rotor-stator high shear mixers, in-tank high speed agitators or high-pressure systems. Emulsions are complex liquid structures that are prone to separation. Each type of equipment is designed to mix and shear fluids to reduce the droplet size of a discontinuous phase to prevent separation. The essence of emulsifying fluids is to force an oil phase, or some non water-soluble fluid, to stay in suspension by getting the droplets small enough to not separate out. In many cases, surfactants are needed to help the resulting mixture hold over long periods of time, but certainly emulsifying equipment is essential to the process.
Cosmetic/Pharmaceutical Processing Machine JRX series compact homogenizing emulsifying machine is suitable for small & medium-type or templet-making of diverse ointment and honey products, and is a necessary laboratory equipment for cosmetic and pharmaceutical enterprises. This machine is fully operational and has superior quality, available with hydraulic pressure lifting type and electrical lifting type for your options.
Standard type is not provided with water and oil boilers, but can be separately equipped with portable boiler according to your requirements.
JRX series is designed specifically for process developers, designed with desktop manual hand-cranking lifting mechanism and equipped with patented multifunctional homogenizer, easy operation and serving several purposes.
| Model | Volume of Main Boiler (L) | Volume of Pretreament Boilers (L) | Dimensions of Main Boiler (LxWxH) | Dimensions of Pretreatment Boiler (LxWxH) | Total Power (KW) |
| 1 | 1.2 | 0 | 600x300x650 | 0 | 3 |
| 10 | 13 | 6/10 | 1800x700x1300 | 1200x600x800 | 7 |
| 20 | 26 | 12/16 | 1800x700x1300 | 1200x600x800 | 10 |
| 30 | 37 | 18/25 | 2000x800x1500 | 1200x600x800 | 11 |
| 50 | 60 | 30/40 | 2000x800x1500 | 1200x600x800 | 14 |
| 80 | 90 | 30/40 | 2100x800x1800 | 1200x600x800 | 16 |
| 100 | 115 | 30/40 | 2150x800x1900 | 1200x600x800 | 20 |

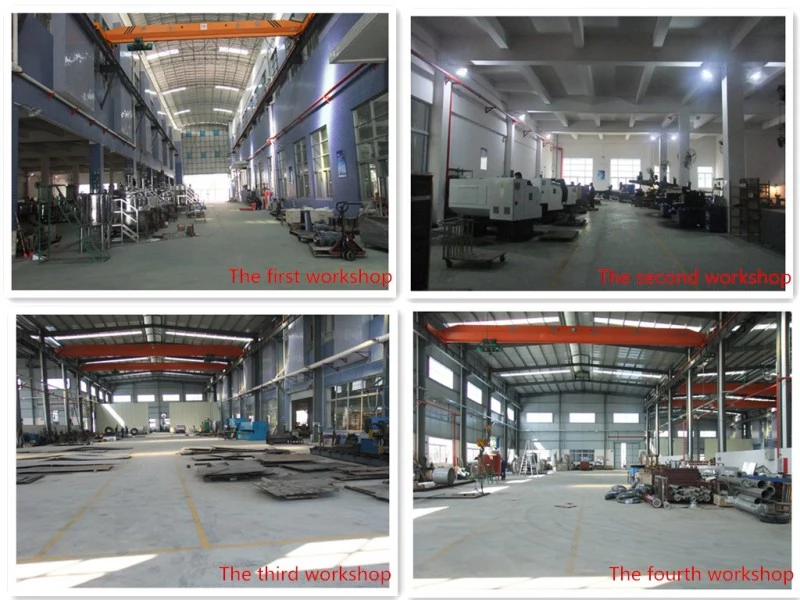

Jinzong Company Information:
This product is widely applied to the industry for its great growth prospects. The product has an automatic data collection function.
This product meets the evolving application needs of customers. The product has an automatic data collection function.
