10 Liter Jacketed Glass Reactor for Lab
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Trademark | JINZONG | Transport Package | Wooden Case |
| Specification | glass | Origin | Guangdong |
| HS Code | 8401100000 |

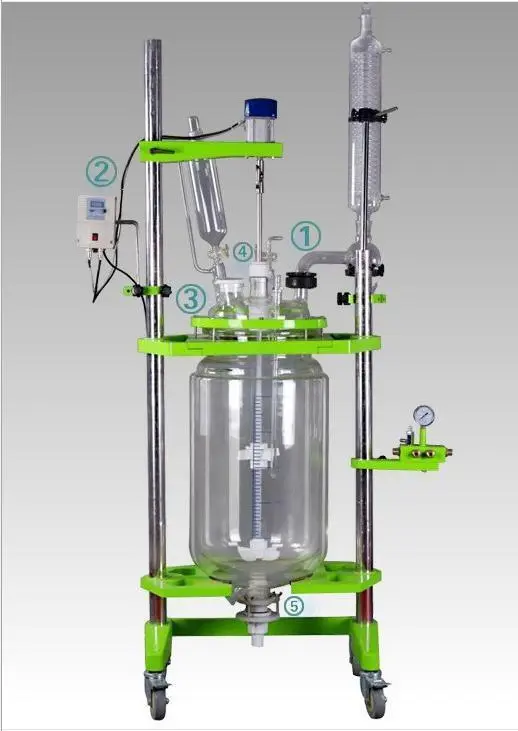

10 Liter Jacketed glass reactor for Lab
500mL to 200L working volume is optional.
Jacket Glass Reactor with heating and cooling source circulating in jacket.
It's applied for heating and cooling synthesis reaction in vacuum condition.
Jacket Glass Reactor with heating and cooling source circulating in jacket.
It's applied for heating and cooling synthesis reaction in vacuum condition.
Reflux, distillation under vacuum, separation, rectification, crystallization are also available with related
configuration.
It is an ideal equipment for chemistry, fine-chemical,bio-pharmaceuticals, and the synthesis, test, and
production of new materials.

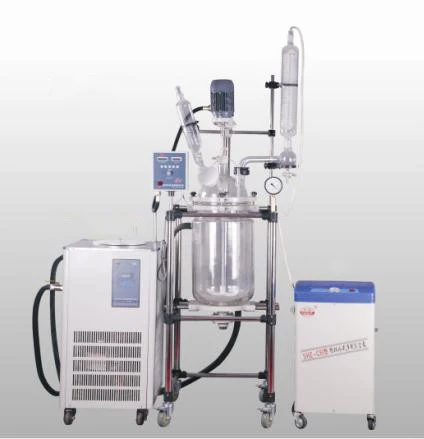

The reactor can connect circulating water vacuum pump, diaphragm vacuum pump, chiller / low
temperature circulator, heating and heating and cooling circulating device.
configuration.
It is an ideal equipment for chemistry, fine-chemical,bio-pharmaceuticals, and the synthesis, test, and
production of new materials.
The reactor can connect circulating water vacuum pump, diaphragm vacuum pump, chiller / low
temperature circulator, heating and heating and cooling circulating device.
| Reaction volume | 10L |
| Jacket volume | 3L |
| Power supply | 220V/50/60Hz |
| Stirring speed | 50-680r/min |
| Max.torque | 200N. cm |
| LED Digital display | Temp. and speed digital display |
| Sealing spares | As a gift |
| Reflux system | Standard |
| Receiving Flask | 5-50l is optional |
| Heating type | jacketed heating |
| Product Keywords | glass reactor,glass kettle,double jacketed mixing tank |
This product can bring significant economic benefits to customers and is increasingly popular in the market. The product requires less training than other same types.
The product is available at very competitive prices and is widely used in the market. The product requires less training than other same types.
