top spray paint can filling machine suppliers for The construction industry
| Model NO. | XJB | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling, Coating |
| Operating type | Continuous Operating | Condition | New |
| Lifting Type | Hydraulic | Vacuity | -0.098 |
| Trademark | JINZONG MACHINERY | Transport Package | Ploywood Case |
| Specification | 2.5L to 2000L | Origin | Guangdong, China |
| HS Code | 8474390000 |

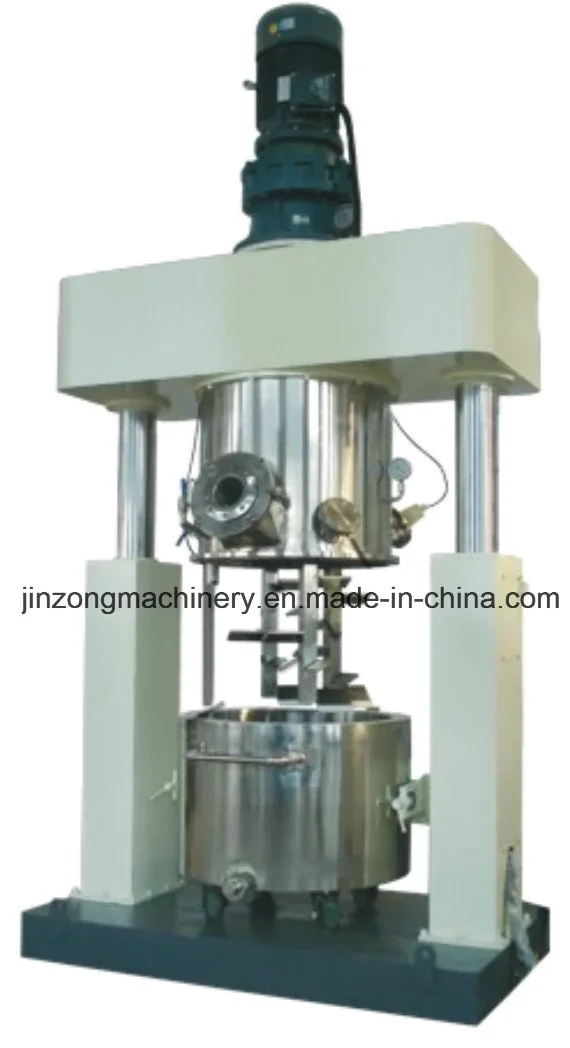

Planetary dispersing power mixer is a kind of no-dead-spot power mixing and dispersion equipment. It adopts unique stirring mechanism, with bottom vessel fixed and unmoved, with dispersion discs and stirrers making planetary movement of revolution and rotation, with speed adjustment by frequency inverter. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead spot. An automatic wall scraper mechanism is designed in the vessel, which continuously scrapes the materials adhering to the wall.
This machine is specially used for mixing middle&high viscous material.
It is designated for the industries whose production process involve two or more liquids,solids with liquids.
It can be applied to a wide range of viscosity up to 1000000 cP.
*Product Application
• Inks
• Paints
• Dye stuffs
• Adhesive
• Cosmetic
• Silicone coatings
• Paper coatings
• Lithium battery materials
• Pigments
• Plaster
• Lubricant
• Electronic chemicals
• Enamel
• Putty
• Sealant
*Features• Mixing workheads and the holding vessel are made of stainless steel which is easily clean.
• The vessel can select with jacket for heating or cooling process.
• This mixer includes two groups: the laboratory models (2L~15L) and industrial models (50L~1000L).
• Particular feature of this planetary mixer is the combination of 3 style movements:
• Trapeziform blades run along with their own shafts.
• All mixing heads also follow planet motion around vessel's wall.
*Technical Parameter:
| MODEL | NOMINAL CAPACITY | VACUUM DEGREE | VESSEL TYPE | DISCHARGE MODE |
| XJB-2.5L | 2.5L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -5L | 5L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -10L | 10L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -20L | 20L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -50L | 50L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -100L | 100L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -200L | 200L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -300L | 300L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -600L | 600L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -1100L | 1100L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -1500L | 1500L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
| XJB -2000L | 2000L | -0.098MPa | Electric, steam, oil heating/ oil, water cooling jacket | Plug / No neck ball valve |
*The above listed max. capacity is calculated according to water as medium.Model selection should depend on the comprehensive factors such as materials' viscosity,gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required for correct model selection.
Other related equipment:
*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*Our strength
1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.

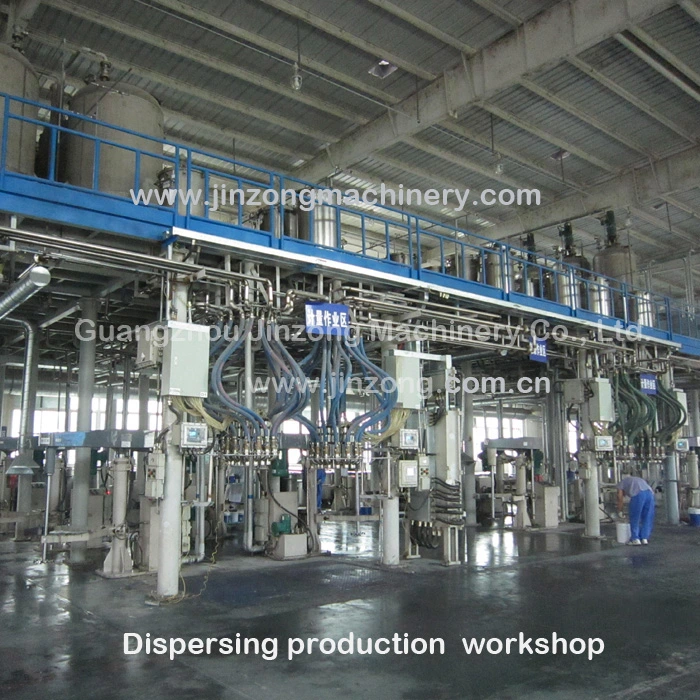

5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
This product only requires a low number of workers, which helps save labor costs. This will finally help business owners achieve a competitive advantage. The product has the merit of full traceability.
The use of this product will improve manufacturing yields to a high level, while at the same time, it helps manufacturers cut down operational costs. The product has the merit of full traceability.
