RO Filtration System 500-10000L
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Trademark | JINZONG | Origin | Guangdong |
| HS Code | 8421219990 |
RO Filtration System 500-10000L
Product Description

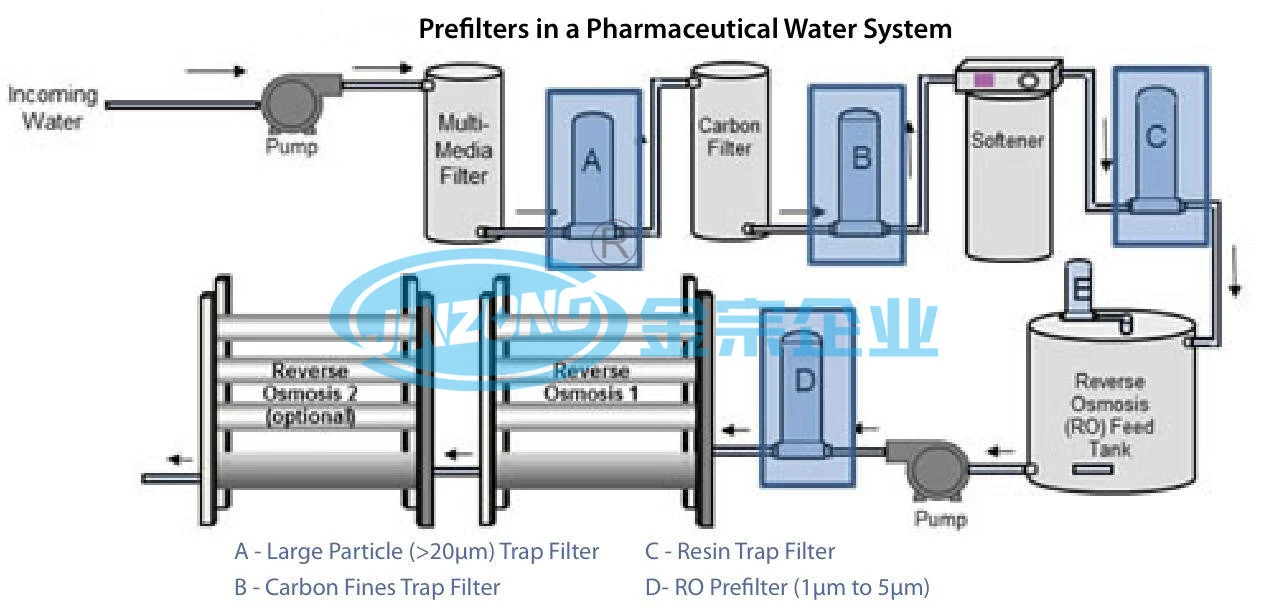

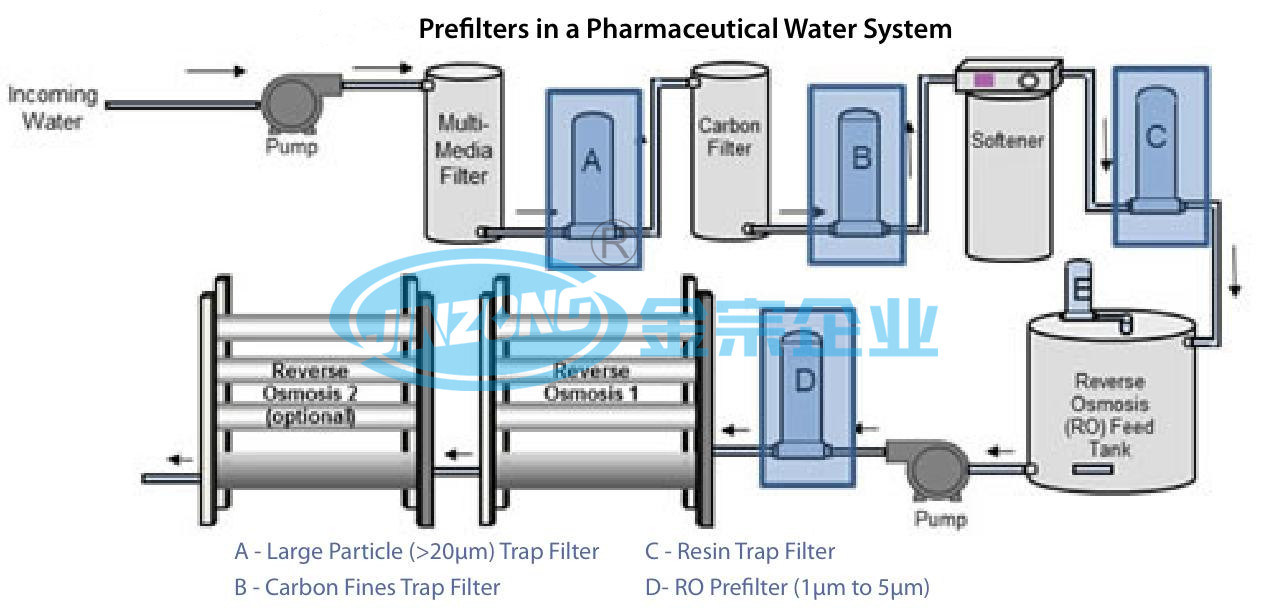

Reverse osmosis is water purification process in which pre-treated & filtered water is connected to the high-pressure pump where pressure is developed and fed to the RO membrane. Reverse Osmosis membranes work on the Cross flow Filtration method where the salts get rejected partially and deliver pure water. Purified water is referred to as product and waste water is referred to as concentrate or reject. The percent of water delivered as product is called the recovery. The ratio of recovery & output parameters depend upon the feed water quality, type of membrane, temperature and total RO unit design considerations.
Features:
Product Description
Reverse osmosis is water purification process in which pre-treated & filtered water is connected to the high-pressure pump where pressure is developed and fed to the RO membrane. Reverse Osmosis membranes work on the Cross flow Filtration method where the salts get rejected partially and deliver pure water. Purified water is referred to as product and waste water is referred to as concentrate or reject. The percent of water delivered as product is called the recovery. The ratio of recovery & output parameters depend upon the feed water quality, type of membrane, temperature and total RO unit design considerations.
Features:
Easy installation
Low maintenance cost
Easy operation
Durability
Effective design
Low maintenance cost
Easy operation
Durability
Effective design

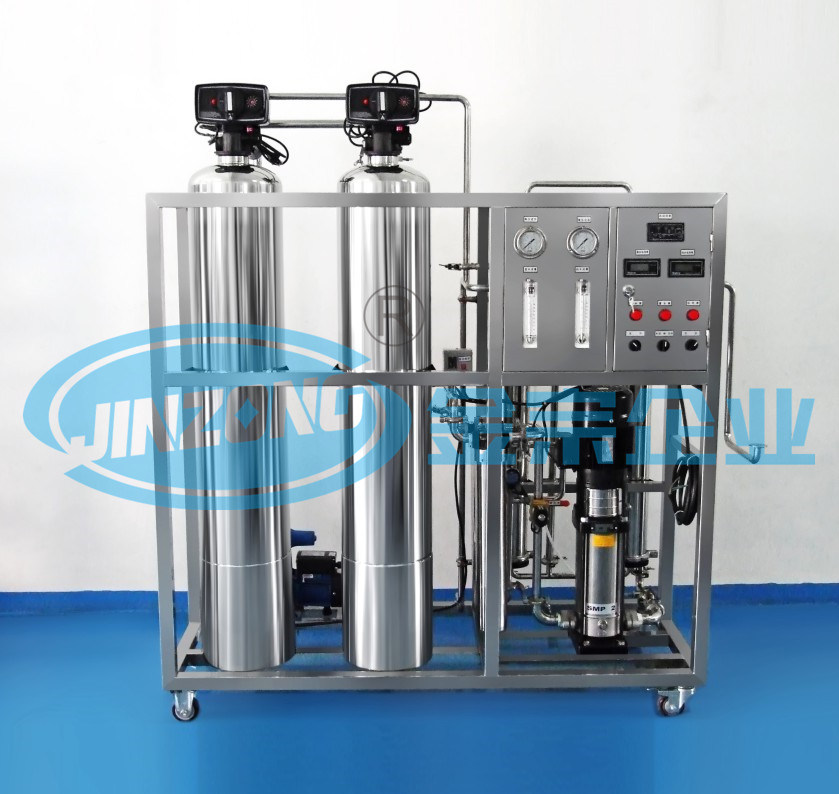

Specification of JinZong Reverse Osmosis Water Treatment Equipment :
| ITEM No : | JRO |
| Production Capacity: | 0.5T/H (Customized from 500L/H to 10000L/H) |
| Desalting Rate : | 98%-99.5% |
| Pipe Meterial : | High Quality UPVC (Stainless steel for option) |
| Frame Meterial : | 304 Stainless steel (Carbon steel , 316 Stainless steel material for option) |
| Pre-treatment vessel material : | FRP Vessel (Stainless steel or carbon steel for option) |
| RO Membrane Housing : | FRP or Stainless steel |
| Pump Power : | 1.5KW to 7.5KW |
| Operating Pressure : | < 300 psig |
| Maximum Recovery : | 60% to 75% |
| Operating Temperature : | 2C to 35C |
| Nominal Rejection : | 95% to 99% |
| Application : | Tap water,Round water,industrial sewage water,river water |
| Pure water Usage : | Drinking , Food and Beverage , Mineral Water Process. |
| Pure Water Usage : | Pharmacy and Hospital , Chemical Industry , Cosmetic Industry , Printing and Dyeing |
| One stage output water conductivity : | 3 to 8 |
We are well known and trusted dealers and suppliers of Reverse Osmosis Plant. These plants are used for drinking water purification in industries like Petrochemicals, Pharmaceutical, Distilleries and Breweries. Our system are also used for sea water purification to remove salt and other substances from water molecule.
The product will be a good helper for thousands of manufacturers. Because it allows production process flow to be more efficient and finally helps save production costs. The product is extremely resistant to corrosion.
The use of this product provides an opportunity for a growing social and economic environment and a higher standard of living. The product is extremely resistant to corrosion.
