Resin reactor

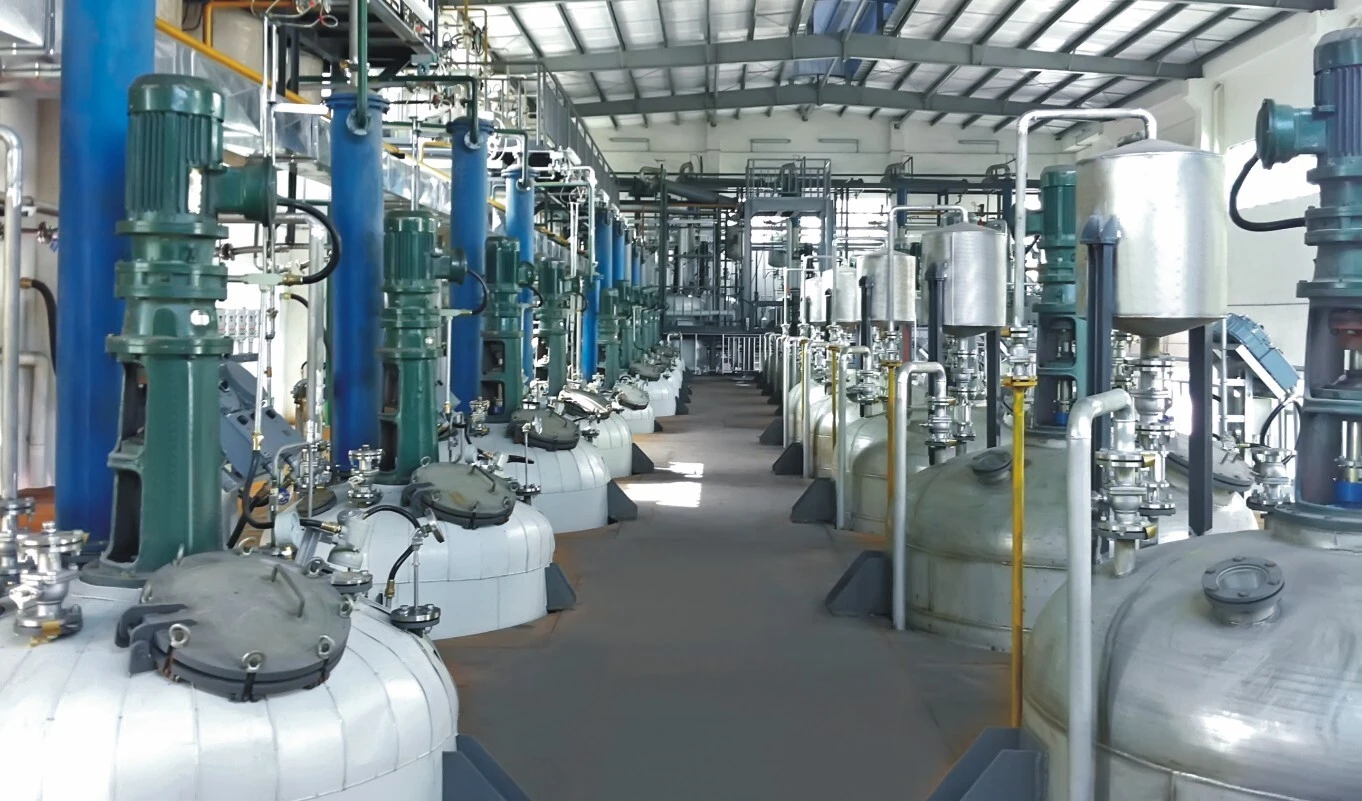

The whole set of resin reactor includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.
Our company can provide users with engineering design, equipment model selection guide, equipment machinig, equipment installation and turn-key project.
Jinzong Machinery has in-house capabilities to both upgrade existing synthetic resin and polymer emulsion manufacturing plants and design new ones with state of the art process control systems.
Composition | Instructions |
Main Reactor | The size, material, heat transfer systems, mixing systems, sealing systems of reactor according to client’s specification |
Dosing Vessel | According to the client’s demand, it adopts gravity tank, gravity mixing tank, gravity dispersing tank, gravity emulsifying tank. |
Distillation Device | Vertical condenser, horizontal condenser and separator. |
Vacuum system | All kinds of vacuum pumps, buffer tanks. |
Thinning Vessel | The size, material, heat transfer systems, mixing systems, sealing systems of thinning vessel according to client’s specification |
Pipeline system | According to the client’s demand, it decides the heating, cooling, vacuum and material pipelines, and including related valves, flowmeters and expanders etc. |
Control System | According to client’s demand, it decides manual, semi-automatic or full-automatic system. |
Filter System | Frame filter, bag filter or centrifuge etc. |
Operation Platform | Steel platform or concrete platform |
Jinzong Machinery offers proven processes and equipment for manufacturing the following products:
Alkyd resin,
Polyester resin,
Acrylic resin,
Esterimide resins,
epoxy resins,
ABS resins,
Polyester resin,
Unsaturated polyester resin,
Acrylic resin,
Amino resin,
curing agent.
Resin Plant is the key equipment for producing all kinds of resins, such as Alkyd resin, Acrylic resin, PET resin, epoxy resins, ABS resins, Polyester resin, Unsaturated polyester resin, Acrylic resin, Amino resin, curing agent. The whole set of equipment includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.
Our company can provide users with engineering design, equipment model selection guide, equipment machinig, equipment installation and turn-key project.
Reaction Pot | Vertical Fractionating column | Horizontal Condenser | Separator | ||||
Specification(L) | Size of Fractionating column(mm) | Stuff Volume | Cooling Area | Specification | Condensation Area | Specification | Volume |
300L | Φ159×560 | 0.01 | 0.22 | Φ219×1000 | 2.4 | Φ410×450 | 60 |
500L | Φ159×750 | 0.015 | 0.29 | Φ219×1500 | 3.6 | Φ410×450 | 60 |
1000L | Φ194×800 | 0.025 | 0.62 | Φ273×1500 | 5 | Φ410×450 | 60 |
1500L | Φ194×850 | 0.025 | 0.62 | Φ273×2000 | 6.5 | Φ410×450 | 60 |
2000L | Φ219×1000 | 0.035 | 1.0 | Φ325×2000 | 8 | Φ600×600 | 150 |
3000L | Φ273×1100 | 0.058 | 1.2 | Φ325×2000 | 10 | Φ600×600 | 150 |
5000L | Φ273×1200 | 0.065 | 1.5 | Φ377×2000 | 15 | Φ700×750 | 300 |
8000L | Φ325×1500 | 0.065 | 4 | Φ426×2000 | 20 | Φ700×750 | 300 |
10000L | Φ325×1800 | 0.07 | 5 | Φ426×3000 | 30 | Φ700×750 | 300 |
15000L | Φ377×1800 | 0.08 | 6 | Φ450×3000 | 40 | Φ800×750 | 500 |
20000L | Φ377×1800 | 0.08 | 6 | Φ450×3000 | 50 | Φ800×750 | 500 |
25000L | Φ377×2000 | 0.12 | 10 | Φ455×3000 | 60 | Φ800×750 | 500 |
30000L | Φ377×2000 | 0.12 | 10 | Φ475×3000 | 80 | Φ800×750 | 500 |
