latest box packaging machinery suppliers for distillation
| Trademark | JINZONG | Transport Package | Wooden Case |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8474900000 |

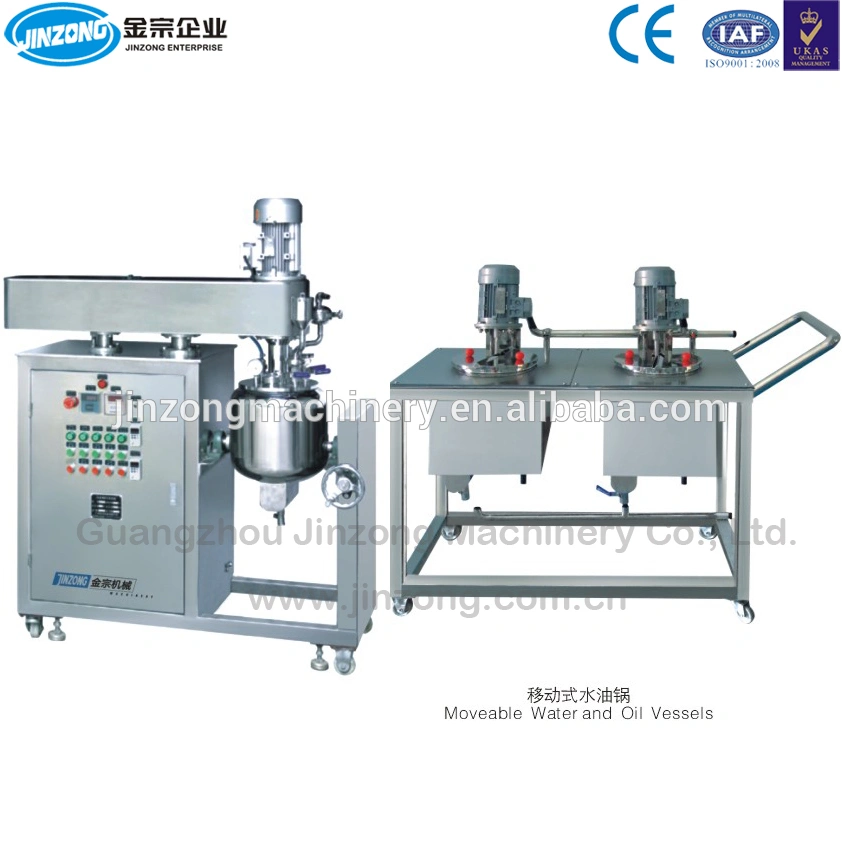

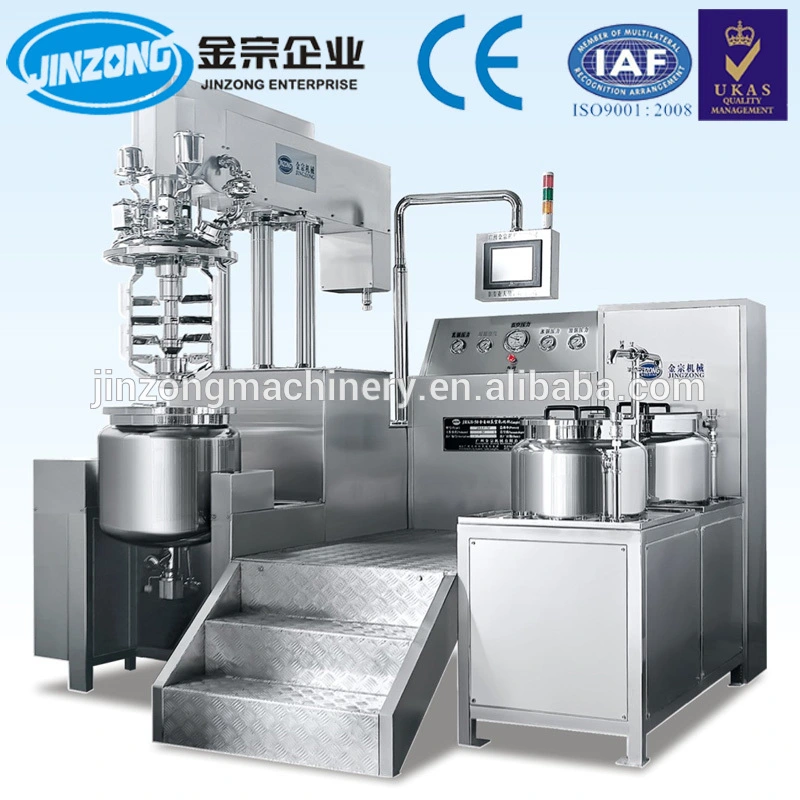

Ointment Mixer cream mixing Machine Capacity From 1L to 5000 Liter
We are one of the proficient manufacturers and suppliers of Ointment Mixer Machine. Our clients can avail these machines in different capacities ranging between 1 Liter to 25000 Liter. Offered in simple designs, these are easy to operate and consumes less electricity. Further, we offer these machines in customized options so as to meet clients requirements.

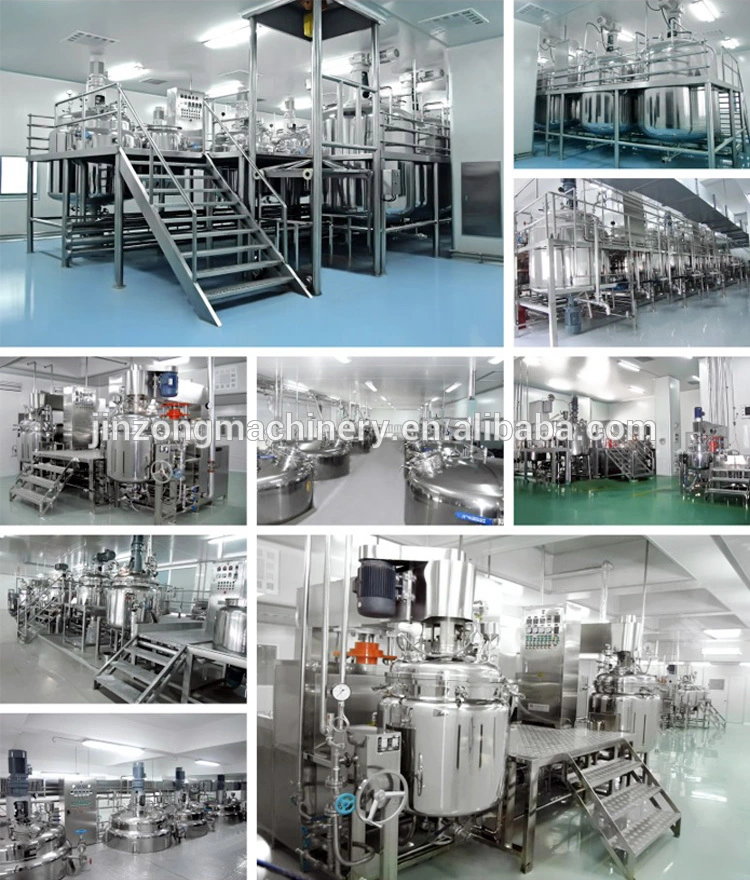

Project case

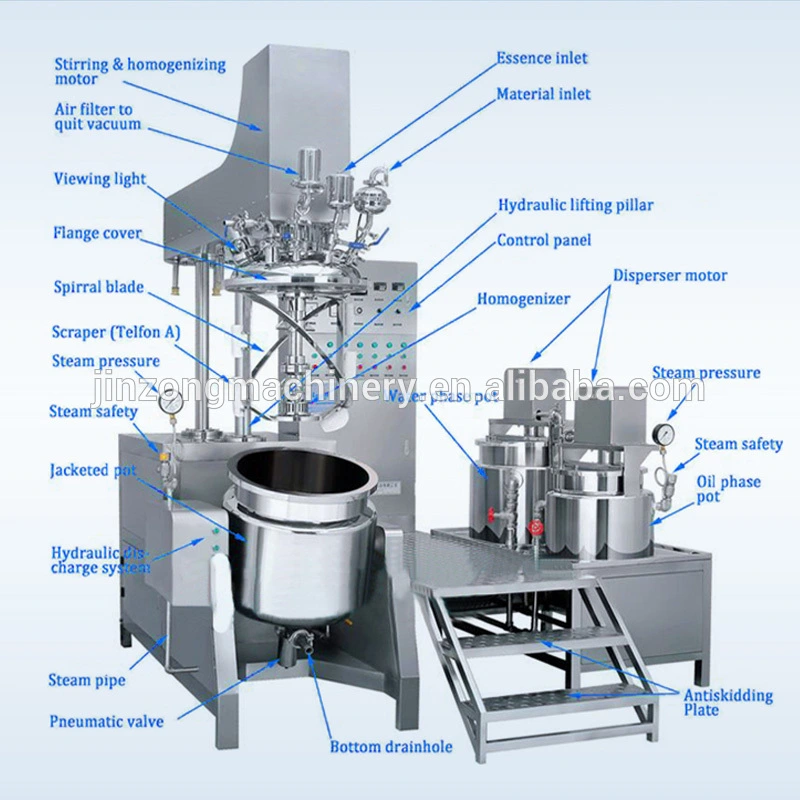

JINZONG MACHINERY, manufacturers Automatic Ointment/Cream/ Toothpaste and Liquid manufacturing/ process plants, as per customer requirements, complete with Main manufacturing vessel, associate water phase, wax phase vessel, and sugar melting vessel in case of Liquid plants, thoroughly steam jacketed in heavy duty construction, with Mechanical seals at the bottom homogenizer, and top stirrers with automatic top dish opening mechanism and automatic batch weighing systems.
We are one of the proficient manufacturers and suppliers of Ointment Mixer Machine. Our clients can avail these machines in different capacities ranging between 1 Liter to 25000 Liter. Offered in simple designs, these are easy to operate and consumes less electricity. Further, we offer these machines in customized options so as to meet clients requirements.
Operation
The pre determined water quantity is added to water heating vessel. The steam is supplied and the addition of additives manually and mix at the set temperature
Then the oil, wax, petroleum jelly is charged to wax phase vessel. The steam and heat are supplied in manufacturing vessel and the additives are added manually and mixed at the set temperature
Vacuum pump transfers the heated water to main manufacturing vessel. The additives are added manually and mixed at the set temperature and also the homogenizer performs emulsification and dispersion
After confirmation of cream / ointment discharge the product is transferred to storage tank using lobe pump.
Keeping the product under slow speed agitation in storage vessel the product is transferred to ointment tube filling machine through ointment transfer pump
Features
Completely fully automatic ointment cream manufacturing plant with automatic operations and untouched by human hands.
Designed as per CGMP - Current Good Manufacturing Practices compliance
All contact parts AISI 316 & non contact parts AISI 304
Capacity available from 1 Liters to 25,000 Liters
The pre determined water quantity is added to water heating vessel. The steam is supplied and the addition of additives manually and mix at the set temperature
Then the oil, wax, petroleum jelly is charged to wax phase vessel. The steam and heat are supplied in manufacturing vessel and the additives are added manually and mixed at the set temperature
Vacuum pump transfers the heated water to main manufacturing vessel. The additives are added manually and mixed at the set temperature and also the homogenizer performs emulsification and dispersion
After confirmation of cream / ointment discharge the product is transferred to storage tank using lobe pump.
Keeping the product under slow speed agitation in storage vessel the product is transferred to ointment tube filling machine through ointment transfer pump
Features
Completely fully automatic ointment cream manufacturing plant with automatic operations and untouched by human hands.
Designed as per CGMP - Current Good Manufacturing Practices compliance
All contact parts AISI 316 & non contact parts AISI 304
Capacity available from 1 Liters to 25,000 Liters
JINZONG MACHINERY, manufacturers Automatic Ointment/Cream/ Toothpaste and Liquid manufacturing/ process plants, as per customer requirements, complete with Main manufacturing vessel, associate water phase, wax phase vessel, and sugar melting vessel in case of Liquid plants, thoroughly steam jacketed in heavy duty construction, with Mechanical seals at the bottom homogenizer, and top stirrers with automatic top dish opening mechanism and automatic batch weighing systems.
The product is well-received in the global market and enjoys a bright market prospect. The product works very stably, which helps meet users' production schedules.
The product is warmly welcomed and widely applied by our global customers thanks to its remarkable advantages and high economic benefits. The product works very stably, which helps meet users' production schedules.
