Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Jinzong pharmaceutical equipments manufacturers supply for The construction industry
| Model NO. | JZ-JGB | Customized | Customized |
| Condition | New | Warranty | 1 Year |
| After-sales Service | One Year Warranty, Lifelong Maintenance | Trademark | Jinzong Machinery |
| Transport Package | Plywood Case | Specification | Depends on Capactiy |
| Origin | Guangdong, China (Mainland) | HS Code | 8422303090 |

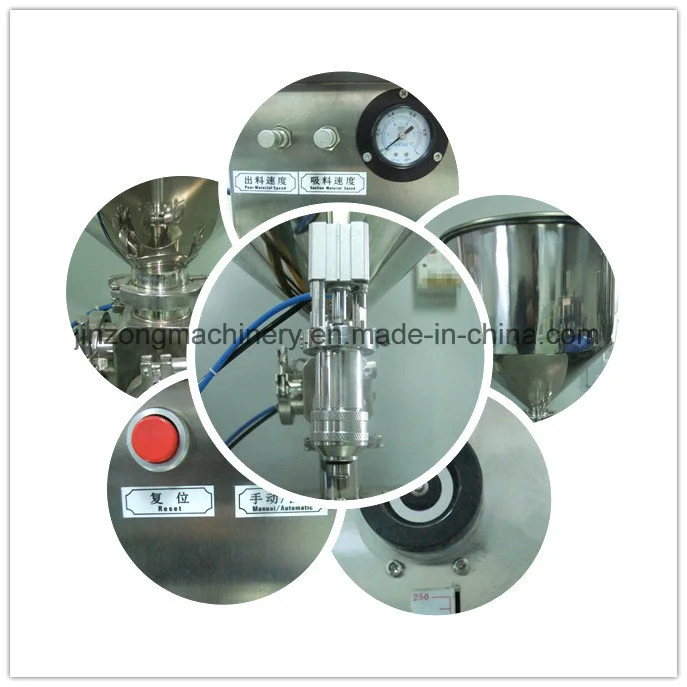

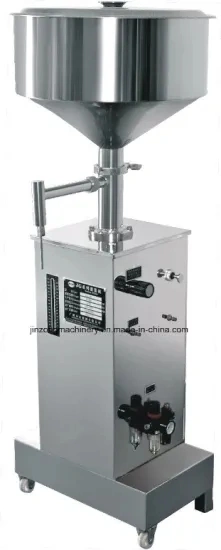

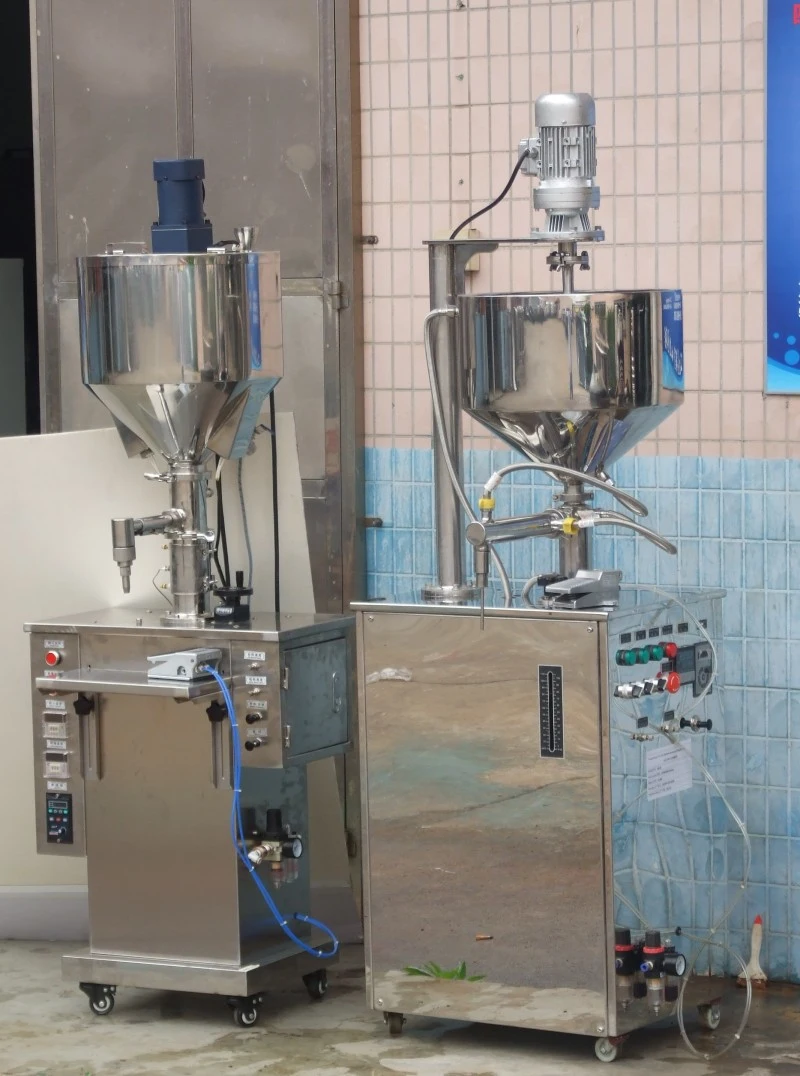

Semi Automatic Ration System Paste Filling Machine with Mixer
Semi Automatic Ration System Paste Filling Machine with Mixer
1. Descriptions:
Purpose Filling Machine can actualize two purpose of ointment and liquid filling with one machine by quickly and easily changing the hopper and self-absorption head, it is the best choice to replace traditional vertical type or horizontal type filling machines.
It is suitable to fill the low-viscosity ointments and all kinds of liquid, featuring high filling accuracy and user-friendly. Its aerodynamic parts are from Taiwan brand products with excellent performance and quality. Currently, this product remains to be one of advanced filling equipment in the world, conforming to GMP standards and is widely used in daily chemical industry.
2. Applications:
Widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is the ideal equipment for quantitative filling of high viscosity fluid, paste,The adoption of pneumatic filling, a hopper and a material cylinder, discharging pipeline are heated by electricity, the hopper is equipped with a frame mixing system.
Food Packaging Tube Pharmaceutical Ointment Cream Empty Aluminum Collapsible Tube
Pharmaceutical Ointment Tube
3. Advantages:
1.This machine with a cylindrical inter-layer material box, electric heating, a paddle stirring device, can to paste liquid material heating, stirring, temperature control and other functions, can let the need of heating, stirring, temperature of the
material within the prescribed limits of filling, reach the predetermined effect.
2.The filling machine adopts the compressed air control, double double, the cursor type of brake, speed is increased obviously than the bottle blocking form;
3.Pneumatic part adopt import pneumatic components.
4.Material contact part made of 316L stainless steel, meet the requirements of GMP.
5.A filling volume adjusting handle, the filling speed can be adjusted, filling with high precision.
6.Filling head adopts anti drip, drawing and lifting filling device.
7.The material from the hopper to the filling nozzle discharge end adopts a heating wire insulation.
8.The machine is arranged at bottom of foot mounted, convenient to move
9. The machine has reasonable design, compact structure,easy to use, low failure rate.
4. Technical Parameter:
Packaging:
| Model | Hopper Volume(L) | Filling Scope(ml) | Capacity(times/min) | Cylinder Dia. | Driving System | Dimension(mm) |
| 40 | 30 | 10-150 | 4-30 | 40 | 0.2-0.45 | 550x550x1555 |
| 60 | 30 | 50-300 | 60 | |||
| 80 | 30 | 100-500 | 80 | |||
| 100 | 30 | 200-1000 | 100 |
Packaging:
Packed by wooden case usually.
According to customer's requirement, other packaging is available as well.
Shipping:
European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
The product is popular among old and new customer and boasts a promising market application prospect. It has a compact design, occupying less space.
Our product is highly recommended by customers for its incomparable features. It has a compact design, occupying less space.
