Jinzong manufacturers for stationery industry
1. Jinzong Machinery is designed in accordance with the basic production standard. The product is simple and convenient to operate
2. The product is specifically designed to cushion the things stored and keep them safe from harm. People don't have to worry about their stuff will get scratched. The product is dust-proof and water-resistant
3. A number of quality tests will be carried out to ensure that products meet industry quality standards. The product is highly automatic and controllable
| Model NO. | 2.2kw-90kw | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling, Coating |
| Operating type | Continuous Operating | Condition | New |
| Machine Type | Mill | Warranty | 1 Year |
| Voltage | 380V,50Hz,3phase | Trademark | Jinzong Machinery |
| Transport Package | High Quality Plywood Cases of Export Standards | Specification | FL2.2/3.4, FL5.5/7.5, FL15/18.5/22, FL30/37, FL45 |
| Origin | Guangdong, China(Mainland), | HS Code | 8419899090 |
| Type | FL2.2/3/4 | FL5.5/7.5/11 | FL15/18.5/22 | FL30/37/FX37 | FL45/FX45 | FL90/FX90 |
| Motor power(kw) | 2.2/3/4 | 5.5/7.5/11 | 15/18.5/22 | 30/37/37 | 45 | 45 |
| Split shaft speed bulk(r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 |
| Wheel dia. Of disperser(mm) | 200 | 250 | 300 | 350-400 | 450 | 600 |
| Rack lift travel(mm) | 700 | 900 | 1200 | 1200 | 1600 | 1600 |
| Pump power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 |
| Cylinder volume of material(L) | 100-200 | 400-600 | 600-1000 | 1000-2000 | 1000-2500 | 5000 |
| Weight(kg) | 400 | 800 | 1500 | 1700 | 2100 | 2600 |
| Dimensions(mm) | A | 1700 | 1750 | 2200 | 2600 | 2700 |
| B | 1300 | 1800 | 2100 | 2700 | 3000 | |
| C | 600 | 900 | 1100 | 1400 | 1600 | |
| W(with) | 540 | 350 | 900 | 1000 | 1500 |
1. Introduction
- For paint, coating, pigment, inks.
- Combine milling and dispersing function.
- Energy saving
- High efficiency, easy operation, maintenance, cleanng and changing color.
- Applicable for independent tank operation and high/ low viscosity paste.
2. Main Features
- Configure with qualified Inverter, various speed control
- Hydraulic lifting, can be moved around
- Integrate dispersing and grinding in one process
3. Function selection
- Imported or domestic top brand inverter for option
- Custom-made design is available, such as Ex-proof, vacuum, sealed operation;
- Belt or not clamping for optional.
4. Our service
- Engineers available to service machinery overseas.
- Technological support.
- Guarantee: 1 year.
- Custom-made is OK for us.

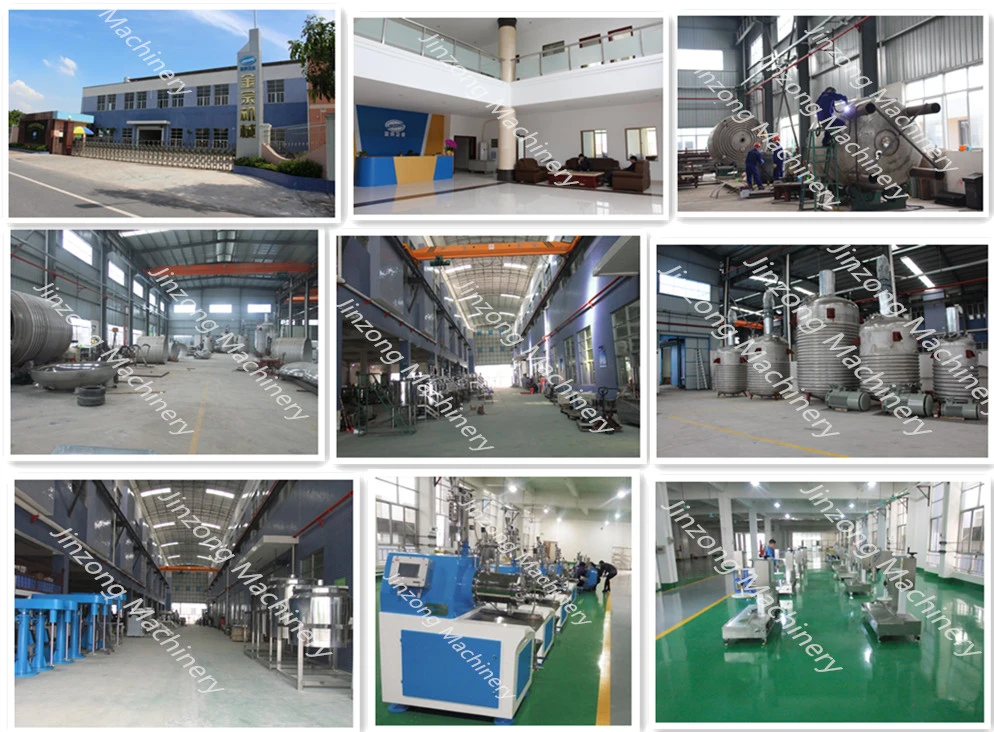

Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, sand mill, filling&packing machine, etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
6.Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
7.Certificates
Company Features
1. The Jinzong Machinery branded is exported to the global market with high quality as a word of mouth. With our years of development in the market, we have established an effective sales network to enable us to connect with numerous potential and reliable partners around the world.
2. We have skilled workers. Their ability to adjust to rapidly changing product requirements helps the company increase productivity and increased efficiency resulting in financial gains.
3. Our company attracts and maintains a sufficient number of customers. This is due to our sincerity, such as sales prior to providing information, product design analysis, and after-sales support. Jinzong Machinery strives to be a leading equipment dissolver manufacturer. Check now!
