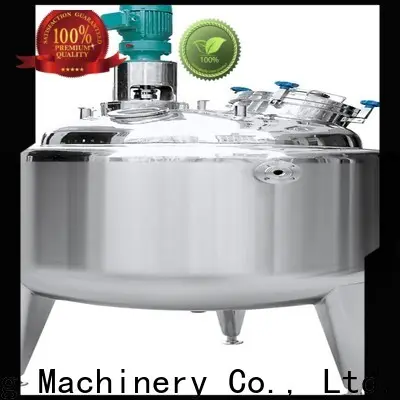

Jinzong pharmaceutical preparation machinery YFP Collocation mixing tank
YFP Collocation tank, concentrated-collocation tank, Diluter-collocation tank


YFP Stainless steel Collocation tank, concentrated-collocation tank, Diluter-collocation tank, configuration tank, batching tank, dispensing tank and liquid dispensing tank are used for materials mixing.
It can be used for milk, sugar, beverage, food and other elements and various medicines to mix and store evenly. It is an indispensable equipment for dairy, beverage and pharmaceutical manufacturers.
1.Such series vessel has the functions of heating and heat preservation. They are manufactured, pressure-tested and checked in accordance with the Technology specifications for steel welded vessel
2.The volume selection: 100L to 7000L. At the same time, also may act according to the customer special request, has custom-made the processing.
3. The sealing of agitating shaft is mechanical sealing of imported health class. The speed reducer is of Frand, a famous brand from Germany or SEW. The rotation speed for agitation is 36-53 rpm. The control by inverter is available
4. The joint is of quick-acting type in compliance with ISO standard. The inner part is made of 316L or 304
5. There is respectively fluid level gauge on the tank body(the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening, thermometer(digital-indicated type or dial type), CIP universal tank- cleaning device, viewing mirror lamp hole, some fluid inlets & outlets and manholes.


Characteristic:
Inner figuration: Vertically barrel-shaped(inner barrel touched with medicine liquid)
Inner material: 316L(imported from Japan)
Inner finish: 0.28-0 45µm
Outer material: 304 mirror board or mat plate
Heating coil: 304
Material for heat insulation: pearl cotton(high temperature resistance and aging resistance)
Outer temperature;≤10ºC
Working pressure: atmospheric
Working temperature:60ºC-100ºC
Sterilization pressure: 0.15-0. 3MPa
Sterilization temperature: 121ºC-132ºC
Distribution
Speed reducer (Frand from Germany or SEW)
Foldable micro pore film air filter (filtration of bacteria of 45 µm and above)
Leakage-proof device(100%)
Interface for liquid level (options:static-pressure sensor type, supersonic type and glass tube level meter)
Interface of thermometer(temperature sensor)
interface for gas exhaust and security valve( connected to breathing apparatus accompanied by aseptic filtration)
Aseptic air interface for sterilization with steam and filtration
Cleaning ball(rotating for 360 under low pressure)
Inlet and outlet for medicine liquid(quick-acting installation type)
Elliptic manhole
Viewing mirror
Lamp hole
