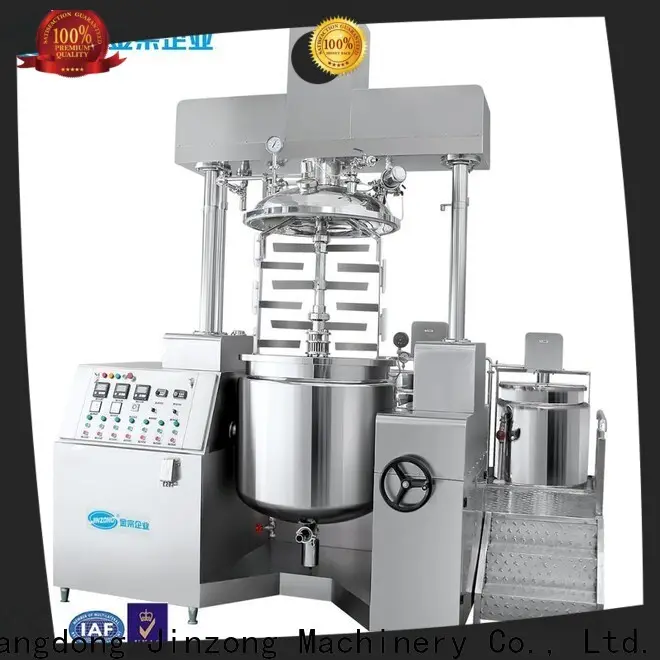

Automatic Ointment Manufacturing Plant Emulsifying Mixing tanks

Ointment Manufacturing Plants are ideal for the pharmaceutical and cosmetic industries for the production of ointment, creams, tooth paste, lotions and other emulsions and homogenizations.

Automatic Ointment Manufacturing Plant Emulsifying Mixing Tanks



Fully automatic Ointment, Cream, Tooth Paste, Gel manufacturing plant consisting of
Predetermined water phase vessel.
Pre determined oil, wax, petroleum jelly phase vessel.
Vacuum Homogenizer Mixer vessel.
Vacuum Pump
Storage vessel
Interconnecting pipeline.
Transfer Pumps (Bump Pump, Lobe Pump & Metering pumps)
Integrated automatic control panel.
Working Platform

 To ease cleaning, efficiency of agitators, ease of maintenance.

The combined action of horizontal blade and specially designed anchor ensures most efficient mixing with shearing action of homogenizer, important when working with viscous products. Ointment plant comprises components such as manufacturing vessel and agitators with flush bottom valve, wax/water phase vessel with side mounted fast speed stirrer, flush bottom valve and conical filter, manufacturing vessel with double speed anchor and fast speed emulsifier fitted with mechanical seal, lifting pneumatically for manufacturing vessel, spray ball on top cover for cleaning main vessel, monitoring of the product temperature with digital indicator on panel, electric control panel board with all necessary controls.

Features :
Design compliance with cGMP
Integrated Cleaning in Place-CIP.
Sterilizing In Place-SIP as an Option.
Batch Size
Available model 50 Liter to 30000 Liter working Capacity.
Materials
Product Contact SUS 316L.
Food Grade silicon rubber for seal.

Ointment Manufacturing Plant is very useful for creams, lotions, gels, shampoos, tooth pastes and such preparations.
Automatic Ointment Manufacturing Plant Emulsifying Mixing Tanks

Automatic Ointment Manufacturing Plant Emulsifying Mixing Tanks

Project case
Automatic Ointment Manufacturing Plant Emulsifying Mixing Tanks


Automatic Ointment Manufacturing Plant Emulsifying Mixing Tanks

The product meets customer's expectation and now is rather popular in the industry and has a broad market prospect. The product works under an effective ERP system. The product is well-received in the global market and enjoys a bright market prospect. The product works under an effective ERP system.
