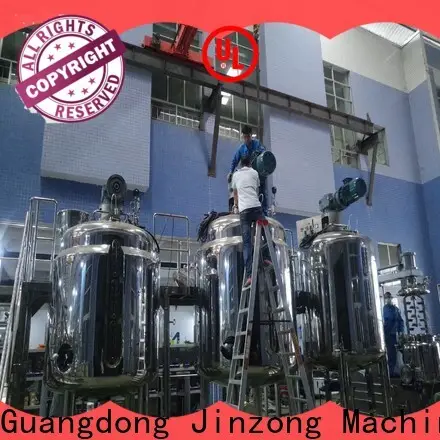

Stainless Steel Reactor for Food, Food Additive and Feed Additive

Stainless steel reactor is a kind of comprehensive reaction vessel. Through the structural design and parameter configuration of the vessel, the heating, evaporation, cooling and low-speed mixing functions required by the process can be realized. Under normal circumstances, some chemical reactions in the reactor need to have a higher internal temperature, so the reactor should not only have the ability to withstand high pressure, but also have the ability to withstand high temperature. In general, the reactor to obtain high temperature are used in these ways: steam heating, electric heating, water heating or other medium heating, specific circumstances can be selected according to their own characteristics.

Steam heating: when we need very high temperature, we can use high pressure superheated steam for heating; When the temperature range is 100 ~ 180 ºC, saturated steam can be used for heating; When the temperature is below 100 ºC, steam below atmospheric pressure can be used for heating.
Electric heating: in general, we use to install the resistance wire on the insulator at a certain distance from the reactor, or wind the resistance wire on the insulation layer of the reactor cylinder, so that there is a certain space gap between the resistance wire and the reactor body.

Structure and performance of reactor: the equipment is mainly composed of tank, jacket and mixing system.
1. Materials of the reactor: the parts in contact with the materials are made of 304 or 316L stainless steel, meeting the GMP standard.
2. Accessories of reactor: frame stirring is used to ensure that the materials are evenly mixed in a short time; At the same time, frame type, anchor type and slurry type seals can be selected according to the needs, and sanitary mechanical seals can be used to ensure the pressure in the tank and prevent unnecessary pollution caused by material leakage in the tank; The interface adopts ISO standard quick mounting clamp type, which is convenient and sanitary; Sterile respirator, CIP cleaning nozzle, sight glass, flange, sanitary quick opening manhole, etc
3. Surface treatment of reactor (with legs): the inner surface is polished by mirror, without sanitary dead angle, and the totally enclosed design material is always in sterile state. The outer surface can be treated by sandblasting, frosting, cold rolling and primary color matte treatment. Heating and cooling: steam heating, electric heating and heat transfer oil can be selected to meet the process requirements of different working environments, such as acid resistance, alkali resistance, high temperature resistance, wear resistance and corrosion resistance.

In order to meet the needs of different customers, stainless steel reactor can choose electric heating, steam heating and other heating methods according to customer production requirements. Stainless steel reactor is widely used in medicine, building materials, chemical industry, pigment, resin, food and other industries, with the characteristics of non sticky materials, easy cleaning, high temperature resistance, corrosion resistance, sanitation, no environmental pollution, easy to use and so on.

If you want to inquire about food additive reactor, resin reactor, chemical pharmaceutical reactor, stainless steel reactor, electric heating steam heating reactor and other equipment, please contact us.
